wodaRO BAMBO MULTI 30 iron remover multi station

Well water station for a single-family home

The wodaRO BAMBO MULTI 30 multifunction station is made of high-quality, durable materials and equipped with a control valve, ensuring effective and economical water treatment. It is a solution designed to improve the quality of well water in single-family homes, where excess iron, manganese, hardness, and deposits often affect everyday comfort of use.

The device is characterized by very good build quality and reliable operation. It protects the water system from excessive iron, manganese, and limescale, which damages household appliances and sanitary installations, and also builds up on taps and in shower cabins. An additional benefit is the improvement of the taste and smell of utility water.

ECOMIX A media – multifunctional water treatment in one device

The station operates using ECOMIX A media, an ion-exchange and absorption mixture of various components. This multifunctional filter medium has been developed to simultaneously reduce the most common problems found in well water.

The media removes from water:

• iron,
• manganese,
• ammonia,
• hardness,
• natural organic substances.

The multifunctional Ecomix A media is a composition of five high-quality components with ion-exchange and adsorption functionality. It is an excellent medium for removing hardness, iron, manganese, ammonium ion, and organic contaminants in drinking water treatment in homes and in technological processes. It works effectively with water from any source, simultaneously removes all forms of iron contamination, and maintains high efficiency over a wide pH range, also in the presence of organic contaminants and hydrogen sulfide.

How the device works

Water softening involves removing from water the components that cause hardness. This process is based on replacing calcium and magnesium ions, which are responsible for water hardness, with sodium ions. This phenomenon occurs as water flows through the ion-exchange resin.

When the ion-exchange capacity of the media is exhausted, it is subjected to a regeneration process using a brine solution. Thanks to this, the device can maintain consistent performance and operate in a repeatable, convenient, and economical way.

Key features of BAMBO MULTI

• Softens water – removes the components that cause hardness.
• Cleans water – of mechanical impurities.
• Saves space – thanks to its compact dimensions.

Benefits in everyday use

Softening utility water at home brings noticeable economic and practical effects. Soft water helps reduce limescale buildup, improves the comfort of everyday activities, and supports a longer service life of fittings and appliances.

• lower expenses,
• protection of heating devices and installations against boiler scale,
• reduced use of cleaning, washing, and laundry products,
• longer service life of household appliances,
• cutlery and dishes are shinier and free of streaks,
• smooth skin without irritation,
• pleasant-to-the-touch hair,
• preservation of fabric softness and vivid colors.

Additionally, softening utility water in homes brings measurable economic effects: the consumption of laundry detergents or cleaning agents is reduced by 50%. Soft water does not dry out the skin, helps prevent dandruff and allergies. It also improves the taste of food cooked in it and beverages prepared with it.

Device characteristics

• has a by-pass,
• has outlet water hardness adjustment, the so-called mixer (mixing),
• the new type of housing provides isolation of the control valve from the brine tank,
• the cover with a wide viewing window allows monitoring of the valve operation,
• provides water supply during regeneration,
• programmer in Polish and backlit display.

Softener construction

1. BNT7650 control valve with a menu in Polish and a residual hardness valve (“mixing”).
2. Unique by-pass bypass valve, mounted at the rear of the device.
3. High-quality, durable compact softener housing.
4. Multi-layer, fiberglass-reinforced media tank, corrosion-resistant.
5. Multifunctional ion-exchange media ensuring ideal water softening.
6. Tablet salt.
7. Self-cleaning lower and upper distributor baskets.
8. Brine valve controlling the flow of water to and from the brine tank, equipped with anti-overflow protection.
9. Brine tank made of high-density polyethylene, impact-resistant and non-deforming.

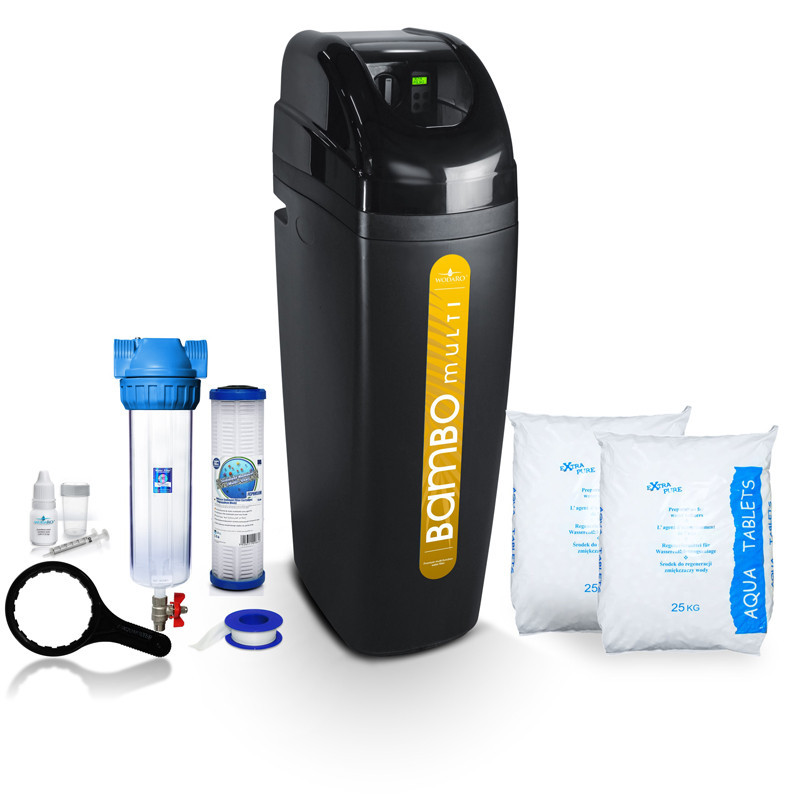

Set contents and freebies

• 2x tablet salt (2x25 kg),
• FHPR-3V_R water filter with drain valve and accessories: wrench, mounting plate, Teflon tape,
• FCPNN50M mesh cartridge that does not require replacement,
• water hardness tester.

The set includes a pre-filter with a drain valve, FHPR-3V_R, equipped with a reusable mesh cartridge. The package also includes a housing wrench, mounting plate, and Teflon tape. The set is installed before the softener to improve water quality and provide additional protection for the media inside the device.

Pre-filter included in the set

The 3-piece housing is a practical solution that makes cartridge replacement easier. To unscrew the housing, simply unscrew the ring itself. There is no need to rotate the entire sump, as is the case with 2-piece designs.

The drain valve allows sediment to be flushed out of the filter without removing the cartridge, which simplifies ongoing service and shortens maintenance time.

The FCPNN50M mesh cartridge does not require replacement and is an efficient sediment cartridge for cold water treatment. The nylon mesh captures sand-sized impurities and similar sediment, preventing them from entering the rest of the water system. The cartridge causes virtually no pressure drops, as the resistance to water flow is minimal.

Additional important information

• 3-piece housing. The innovative 3-piece housing solution makes cartridge replacement easier because to unscrew the housing it is enough to unscrew the ring itself. There is no need to turn the entire sump, as in the version consisting of 2 parts.
