Water Softener 36L WODARO QUADRO CARBON 3in1 Carbon + KDF

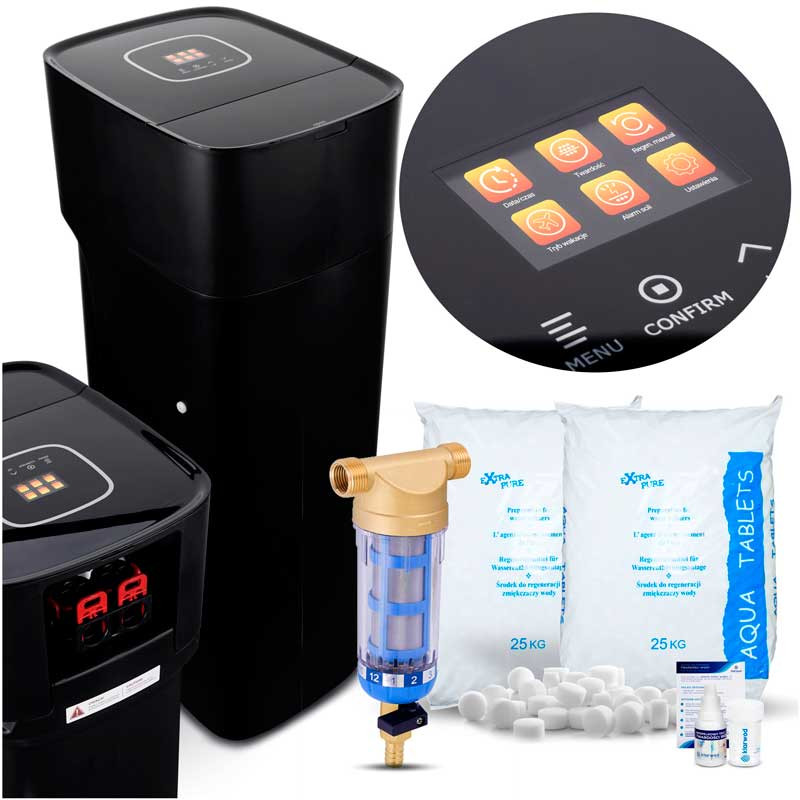

Water Softener 36L WODARO QUADRO 3in1 Carbon + KDF

Water Softener 36L WODARO QUADRO 3in1 is a modern device that combines three advanced filtration technologies – ion exchange resin, activated carbon, and KDF media. It allows for effective softening and purification of water, ensuring the highest quality and safety of water throughout the home.

Key Features

Three filtration technologies in one device: The WODARO QUADRO softener uses three types of media:

• Ion exchange resin – removes calcium and magnesium ions, responsible for water hardness, replacing them with sodium ions.
• Activated carbon – absorbs chlorine, organic impurities, and chemicals, improving the taste, smell, and purity of water.
• KDF media – reduces heavy metals and eliminates organic impurities, preventing the growth of bacteria and algae in the water.

Smart control: The device is equipped with a microcomputer and SMART QUADRO system that automatically adjusts the operating mode, ensuring optimal performance and energy savings.

High efficiency: 6 liters of activated carbon ensures a longer lifespan of the media, eliminating the need for frequent replacements and reducing operating costs.

Vacation mode and salt reminder: The ability to temporarily turn off the device in vacation mode and the salt replenishment reminder function provide maximum user convenience.

Solid and durable construction: The sturdy housing and polyethylene brine tank guarantee long life and resistance to external factors.

Product Construction

A. MONOSPHERIC ion exchange media providing ideal water softening.

B. Carbon media made from coconut shell.

C. KDF media

1. LCD display with a touch control panel.
2. Hinged cover for convenient salt replenishment for regeneration.
3. BY-PASS bypass allowing access to water during regeneration and quick redirection of water.
4. Fully automatic intelligent controller, fault-free and extremely energy-efficient.
5. Solid and extremely durable softener housing made from durable material.
6. Resistant to water and salt.
7. Media tank, multi-layered, reinforced with fiberglass, resistant to corrosion.
8. Brine valve controlling the flow of water to and from the brine tank, equipped with anti-overflow protection.
9. Brine tank made of high-density polyethylene, resistant to salt pressure and non-deformable. Self-cleaning baskets (bottom and top) of the distributor.
10. Tablet salt

Benefits

Better water quality: Thanks to advanced filtration, you get clean and tasty water, free from chemical and organic impurities.

Protection of household appliances: Reducing water hardness minimizes limescale buildup, extending the lifespan of household appliances.

Cost savings and convenience: Automatic regeneration and the longevity of the media lower operating costs, while salt reminders and vacation mode maximize user comfort.

Easy operation: The touch control panel and intuitive menu in Polish make managing the device easy and enjoyable.

Summary

The WODARO QUADRO 3in1 Water Softener is an excellent solution for those who value cleanliness, comfort, and savings. It ensures the highest water quality, protects household appliances, and significantly improves the taste of drinking water.

Set Additions

✔️ High-quality brass self-cleaning filter. This filter provides continuous water filtration, trapping impurities such as rust, sand, hemp fibers, etc. By opening the ball valve at the bottom of the housing, impurities collected at the bottom are removed outside the filter. Due to its small size, the filter can be used where there is little space for installation.

✔️ 50 kg of AQUA TABLETS salt tablets dedicated to water softeners. Free from mechanical impurities and odor. The specially developed formula prevents clumping, which often occurs with salt tablets from other manufacturers.

✔️ Water hardness tester Drop tester allows for accurate checking of water hardness, providing a complete set for conducting the test, including reagents, a test tube, and an instruction manual.

Technical Parameters

• Flow rate: 2.3 m³/h
• Media capacity: 36 l (30 l resin + 6 l activated carbon)
• Ion exchange capacity: 99 m³/dH
• Salt consumption for regeneration: 3.0 kg
• Salt tank capacity: 51 kg
• Device dimensions: 34 cm (width) / 44 cm (depth) / 106 cm (height)
• Operating temperature: 1–30°C
• Operating pressure: 2–6 bar
• Power supply voltage: 220–240 V / 50–60 Hz
• Power consumption: 5 W (only during regeneration)
• Connection: 1ʺ
