On water entry

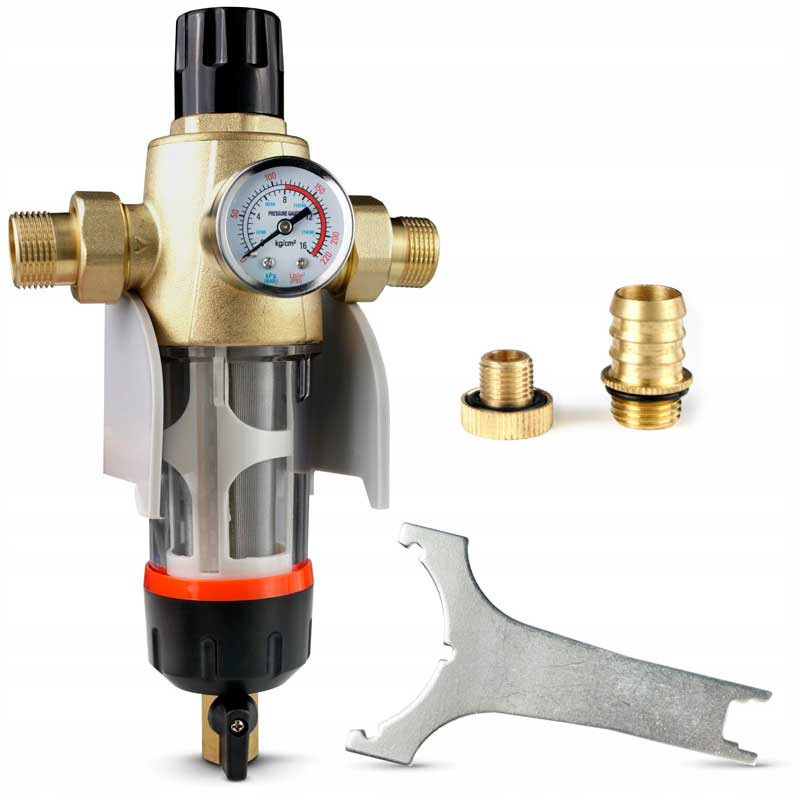

Mesh Water Filter with Pressure Reducer Gauge 3/4 / 1 ″
Rating
The water filter with a pressure reducer and manometer effectively protects the installation from contaminants, stabilizes pressure, an Read moreShow less
The water filter with a pressure reducer and manometer effectively protects the installation from contaminants, stabilizes pressure, and allows for easy cleaning without disassembly.
Specifications
- Connection size
- 1″, 3/4″
- Filtration rating
- 90 µm
- Maximum flow
- 71.666667 l/min
- Maximum working pressure
- 8 bar
- Maximum working temperature
- 30 °C
- Minimum working pressure
- 1 bar
View full specifications
- Minimum working temperature
- 1 °C
- Product type
- Self-cleaning filter
Description
The Mesh Water Filter with Pressure Reducer Gauge 3/4 / 1 ″ is a practical water filter for installation in a system, which simultaneously traps mechanical impurities, stabilizes pressure, and makes it easier to monitor system performance. This solution supports everyday water treatment at the pre-filtration stage, protects fixtures and household appliances, and thanks to the self-cleaning function helps keep the water filtration system in good condition without troublesome disassembly.
Effective protection for water installations and devices
The mesh water filter with pressure reducer and gauge has been designed to protect domestic and utility water systems. Its task is to capture mechanical impurities present in the water and reduce the effects of pressure fluctuations that may negatively affect the durability of the entire system.
This modern pre-filter helps protect pipes, valves, fixtures, and connected devices from sediment and pressure surges. As a result, it works well as an important element of an installation preparing water for further stages of the circuit, as well as a complement to solutions such as an osmotic filter, reverse osmosis filter, or reverse osmosis system, where pre-filtration is very important for the durability of the entire setup.
Main product advantages
Mechanical impurity filtration
The mesh cartridge is responsible for trapping solid particles present in the water, helping to reduce the risk of impurities accumulating in downstream parts of the installation.
Water pressure stabilization
The built-in pressure reducer effectively smooths out sudden changes in the installation’s operating parameters. This is important support for pipes, valves, and devices connected to the water network.
Operating control thanks to the gauge
The gauge makes it easy to read the pressure on an ongoing basis, allowing more convenient monitoring of installation conditions and faster response to any irregularities.
Self-cleaning without disassembly
The filter is equipped with a drain valve, which allows you to quickly and conveniently remove accumulated impurities without dismantling the device. This saves time and increases convenience in everyday use.
Twist & Clean system
The innovative Twist & Clean cleaning system enables easy cleaning without the need for disassembly. In practice, you only need to turn the lower part of the housing to simplify operation and maintenance.
Durable construction for demanding conditions
The housing is made of high-quality materials, including stainless steel and brass, ensuring corrosion resistance and long service life. It is a solution designed for regular operation and many years of use.
Compact design
Its small size makes installation easier in places where installation space is limited. Thanks to this, the filter also works well where functionality matters while maintaining a compact form.
Benefits in everyday use
Using the filter provides real support for the entire installation and the devices using water. It is a practical solution both at home and in other places requiring stable and safe system operation.
- helps protect washing machines, dishwashers, and boilers from damage caused by impurities in the water,
- reduces the risk of clogging pipes, valves, and fixture components,
- supports extending the service life of the water installation,
- makes ongoing operation and maintenance easier,
- allows convenient removal of impurities without the need to dismantle the filter,
- stabilizes pressure and helps limit the effects of sudden pressure surges.
Application
The mesh filter with pressure reducer and gauge is used wherever protecting the water installation from mechanical impurities and stabilizing pressure is important. It is a good choice for domestic and professional systems, as well as a first-stage protection element for the system before further components responsible for water treatment.
It can work as the first stage of protection for fixtures and devices, supporting the performance of systems in which reverse osmosis or another water filtration system requiring reduced levels of solid impurities is later used.
To maintain high efficiency, the filter should be cleaned regularly from accumulated impurities. The self-cleaning function and Twist & Clean system allow this to be done quickly and conveniently, without the need to dismantle the device.
Why choose this filter
This solution combines several key functions in one device: mechanical filtration, pressure reduction, parameter monitoring via a gauge, and easy maintenance. As a result, the filter not only improves the safety of installation operation, but also makes daily upkeep easier.
The combination of durable materials, compact construction, and easy cleaning makes the mesh water filter with pressure reducer a practical choice for those who want to increase installation durability and improve the operating conditions of connected devices.
Technical specifications
| Type of product | mesh water filter with pressure reducer and gauge |
|---|---|
| Filtration accuracy | 60–90 µm |
| Flow rate | 2.6–4.3 m³/h |
| Operating pressure range | 1–8 bar |
| Operating temperature | 1–30°C |
| Available connections | 3/4" or 1" |
| Construction materials | stainless steel and brass |
| Cleaning function | self-cleaning with drain valve |
| Cleaning system | Twist & Clean |
Questions
What is the Mesh Water Filter with Pressure Reducer Gauge 3/4 / 1 ″ mesh filter with pressure reducer and gauge used for?
The device is used to protect the water installation from mechanical impurities, stabilize water pressure, and monitor operating parameters thanks to the gauge. It helps protect pipes, fixtures, and household appliances.
What impurities does the filter remove?
The mesh filter traps mechanical impurities present in the water, meaning solid particles that could settle in pipes, valves, and end devices. The filtration accuracy is 60–90 µm.
Does the filter need to be dismantled for cleaning?
No. The product is equipped with a drain valve and a Twist & Clean system, so cleaning can be performed without disassembly. This significantly simplifies regular maintenance.
How does the Twist & Clean system work in the Mesh Water Filter with Pressure Reducer Gauge 3/4 / 1 ″?
The Twist & Clean system simplifies filter operation. Cleaning is done by turning the lower part of the housing, which allows accumulated impurities to be removed conveniently without dismantling the device.
Does this filter protect household appliances?
Yes. The filter helps reduce the risk of damage to washing machines, dishwashers, and boilers caused by the presence of mechanical impurities in the water and excessive pressure fluctuations.
What connection sizes are available?
The product is available with 3/4" or 1" connections, which makes it easier to match it to the water installation.
Within what pressure and temperature range can the filter operate?
The operating pressure range is 1–8 bar, and the operating temperature is 1–30°C. These parameters allow the filter to be used in typical water installations in line with its intended purpose.
Is this model suitable for small installation spaces?
Yes. Its compact and functional design makes the filter well suited to places with limited installation space.
Can the filter work with a more advanced water treatment system?
Yes. As a pre-filter, it can serve as a protective element before further stages of water treatment, including solutions such as an osmotic filter or reverse osmosis system, helping reduce the flow of mechanical impurities to downstream components.
