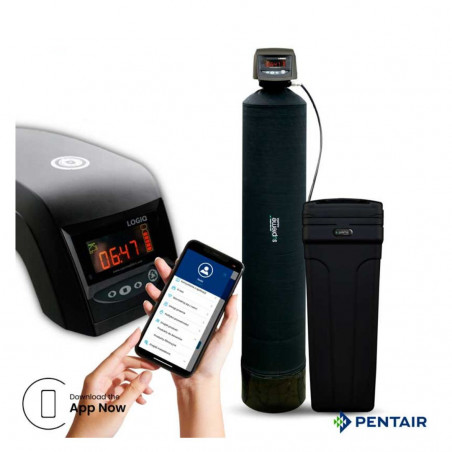

Supreme LOGIQ 50D professional two-component water softener

Water Softener SUPREME-LOGIQ

The SUPREME-LOGIQ series water softeners are technologically advanced devices equipped with the reliable "PERFORMA LOGIX 269" control valve from PENTAIR/USA. They offer high efficiency, low salt and water consumption, and the ability to operate in eco mode, making them an ideal choice for homes, public institutions, and industry.

Professional Control Valve PERFORMA LOGIX 269 The "PERFORMA LOGIX 269" control valve from PENTAIR/USA is the heart of the SUPREME-LOGIQ system, ensuring its reliability and efficiency. Thanks to advanced technology, it monitors water flow and optimizes the regeneration process.

High-Performance Monospheric Resin LEWATIT S1567 The SUPREME-LOGIQ systems use the best ion exchange resin LEWATIT S1567, which provides exceptional ion exchange capacity and long lifespan. This makes the water softening process more efficient and economical.

Modern UP-FLOW Regeneration System The UP-FLOW counter-current regeneration allows for more precise and efficient use of salt and water. This process minimizes the consumption of consumables, resulting in lower operating costs.

Dry Tank Function The SUPREME-LOGIQ systems operate in dry tank mode, eliminating the risk of salt clumping and ensuring a high standard of hygiene. The salt solution is prepared just before regeneration, further enhancing the device's efficiency.

Resistance to UV Radiation and Corrosion The head is made of stainless components resistant to UV radiation, and the controller body is made of fiber-reinforced polymer, ensuring long durability and reliable operation of the device.

Optional BY-PASS and Chlorinator Equipment The option to equip the system with a BY-PASS valve and a chlorinator with a salt alarm function increases user comfort and allows for easy maintenance and high hygiene standards of the device.

10-Year Warranty Extended warranty of 10 years for the pressure tank and 5 years for the control valve and mechanical parts provides assurance of long-term use without concerns about failures.

Water and Salt Savings Thanks to modern technologies such as the UP-FLOW regeneration system and variable reserve function, SUPREME-LOGIQ devices consume minimal amounts of salt and water, reducing operating costs.

High Quality and Durability The use of high-quality materials, such as LEWATIT S1567 resin and SUPREME INDUSTRIAL pressure tanks, ensures long device lifespan and effectiveness for many years.

Intelligent Management The SUPREME-LOGIQ systems are equipped with an intelligent controller that adjusts the regeneration process to actual water consumption, resulting in efficiency and savings.

PENTAIR SCAN Application

Product registration in the PENTAIR SCAN application provides access to the latest technical information about PENTAIR products, including instructional videos. The PENTAIR SCAN application is a tool that significantly facilitates the management and maintenance of SUPREME-LOGIQ series water softeners, offering users convenient and quick access to key information and instructions.

Summary

The SUPREME-LOGIQ series water softeners are an excellent solution for anyone looking for a reliable and economical way to improve water quality in their home, institution, or business. With advanced technology and high-quality materials, these devices ensure long durability and effective operation.

Technical Parameters

• Model: LOGIQ 50D
• Tank Size: 10x54
• Bed Volume: 50 dm³
• Min./Max. Operating Pressure: 1.38 bar / 8.20 bar
• Min./Max. Operating Water Temperature: 1°C - 38°C
• Min./Max. Ambient Temperature: 1°C - 49°C
• Electrical Connection: 220-240V - 12V AC 50/60Hz
• Max. Power Consumption: 8 W
• Hydraulic Connection Inlet/Outlet External Thread: 1” BSP
• BY-PASS Valve: option*
• Raw Water Mixing: yes
• Regeneration Type (recommended): volumetric delayed with time operation option and variable reserve function
• Regeneration System: counter-current UP-FLOW
• Type of Bed: special monospheric ion exchange resin
• Dry Tank Function: yes
• Chlorinator Installation Possibility: yes*
• Salt Alarm: yes**
• Memory Backup: 8 hours
• Backwash Water Consumption per Regeneration (at 3 bar)[1]: 195 liters
• Nominal Exchange Capacity: 165 m³x°d
• Salt Consumption per Regeneration[1]: 6.3 kg
• Regenerant Type: tablet salt
• Injector: 5
• Device Type: two-component

Dimensions

• System Dimensions (h x w x d): 1560 x 260 x 390 mm
• System Dimensions Including Bypass (h x w x d): 1560 x 260 x 495 mm
• Inlet/Outlet Height: 1460 mm
• Inlet/Outlet Height Including Bypass: 1460 mm
• Salt Tank Dimensions (w x h x d): 345 x 345 x 870 mm
