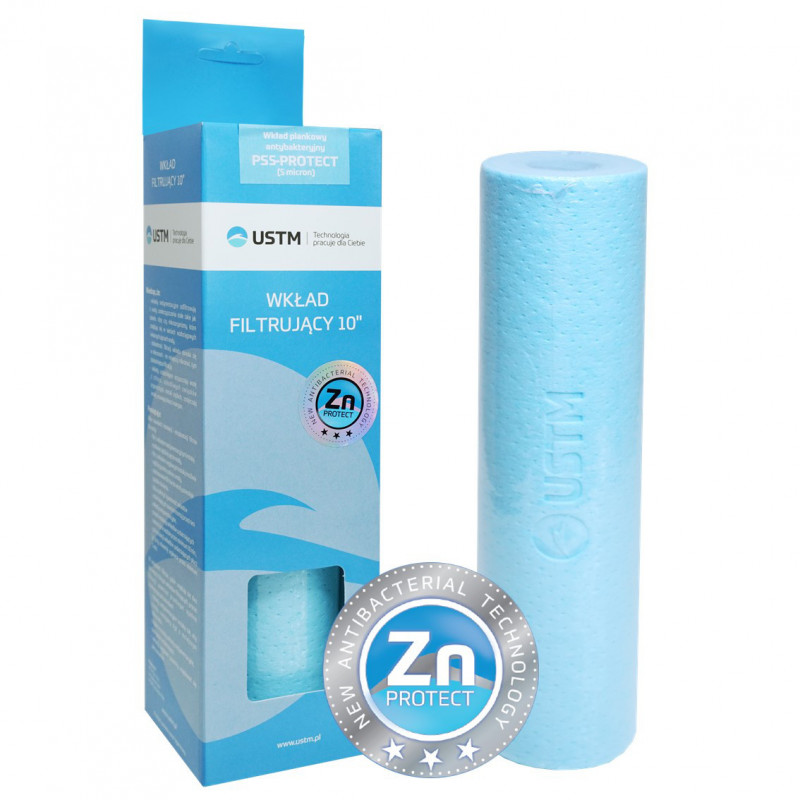

PS5-PROTECT UST-M antibacterial insert 5 microns

Antibacterial sediment cartridge for effective protection of the filtration system

PS5-PROTECT UST-M is an advanced sediment cartridge made of polypropylene nonwoven fabric, designed for effective water treatment and protection of subsequent filtration stages. It combines precise 5-micron mechanical filtration with antibacterial protection, helping maintain a high level of hygienic operation of the system.

The cartridge retains solid contaminants present in water, such as rust, sand, silt, and suspended solids. This solution is especially useful wherever the protection of fittings, final filters, and devices operating in the water installation matters.

Key advantages of the PS5-PROTECT UST-M cartridge

• prevents the growth of bacteria, including E. coli and staphylococcus,
• extended cartridge service life by 50%,
• material tested by the Department of Immunology and Infectious Biology of the University of Lodz and by an Italian laboratory with international accreditation,
• unlike other antibacterial substances, the substance used is not released into the environment,
• contains no nanomaterials or heavy metals,
• retains solid contaminants such as rust, sand, silt, and suspended solids,
• modern technological process fully supervised by domestic engineers and technologists,
• exhibits bactericidal action confirmed in independent tests in several different laboratories and according to ISO22196 and JIS Z 2801,
• solution submitted for patenting,
• depth filtration enables more effective filtration compared to surface filtration, allowing the cartridge to retain more contaminants and operate longer,
• the three-layer structure provides a gradient design in which the micron rating decreases toward the inside of the cartridge, extending its service life,
• the wear indicator informs when the cartridge needs to be replaced — the appearance of the logo indicates cartridge wear.

Safe antibacterial protection

A safe substance with bactericidal properties, recognized by the FDA as GRAS (Generally Recognized As Safe), is used for antibacterial protection. This solution was selected to support hygienic cartridge operation without the use of nanomaterials and without the addition of heavy metals.

Unlike many similar solutions, the active substance is not released into the environment. Additionally, it contains no other chemical substances that could cause side effects, such as allergic reactions.

The mechanism of action is based on interaction with the bacterial cell wall, the element that distinguishes a bacterial cell from a human cell. This causes morphological changes leading to disruption of the cell's structural integrity (lysis), and as a result eliminates bacteria or prevents their multiplication. This selective action makes the solution safe for humans.

Operating principle and filtration efficiency

Contaminated water flows through the cartridge toward its core. Sediment present in it is retained by micropores whose diameter decreases toward the inside of the cartridge. Larger particles are captured closer to the surface, while finer contaminants are retained in deeper layers of the material.

This mode of operation increases the effective filtration surface area, improves purification efficiency, and translates into longer cartridge life. In practice, this means more efficient mechanical filtration than in solutions based solely on surface filtration.

Three-layer gradient structure

The cartridge has a three-layer gradient structure. This means that the micron rating decreases toward the inside of the cartridge, allowing the contaminant retention process to be distributed across successive layers of the material. This design supports depth filtration and limits excessively rapid blocking of the filtration surface itself.

As a result, the cartridge can capture a greater amount of sediment while maintaining high performance for a longer time. This is an important benefit especially when the cartridge operates as the first protective stage in domestic installations and more advanced systems.

Use in water filtration systems

PS5-PROTECT UST-M can be used as a water filter cartridge wherever effective sediment filtration and additional antibacterial protection are needed. It works well as a preliminary element in water treatment systems and as protection for subsequent installation components.

It is a practical choice for systems such as:

• home water filtration system,
• utility water filter,
• reverse osmosis filter,
• osmotic filter,
• reverse osmosis system,
• systems preparing water for further treatment.

Workmanship quality and technological background

The cartridge was developed using a modern technological process, fully supervised by domestic engineers and technologists. The solution stands out for its high manufacturing quality, which directly affects the repeatability of operating parameters and filtration efficiency.

Confirmation of the antibacterial properties comes from independent tests carried out in several different laboratories, as well as test compliance with ISO22196 and JIS Z 2801 standards. The material was also tested by the Department of Immunology and Infectious Biology of the University of Lodz and by an Italian laboratory with international accreditation.

Additional important information

• Submitted for patenting

Technical specifications

FAQ
