OCEAN RX 25 MAXI water softener

New series with modern control and full automation

OCEAN RX 25 MAXI belongs to a new series of softeners equipped with modern software, a volumetric controller, an anti-flood valve, and a by-pass. It is a solution designed for users who expect effective water hardness reduction without troublesome operation.

The device works well both at home and in business environments. Water softening helps protect the water installation, heating devices, and household appliances against limescale deposits, which increase failure rates and energy consumption, especially under the influence of temperature.

Thanks to the operation of the softener, the use of laundry, washing, and cleaning agents can be reduced by up to 60%, and heating costs can be lowered by up to 20%.

How the OCEAN RX 25 MAXI softener works

Water softening involves removing the components that cause water hardness. This process consists of replacing calcium and magnesium ions, which are responsible for water hardness, with sodium ions, and it takes place as water flows through the ion-exchange resin.

When the ion-exchange capacity of the media is exhausted, it is subjected to a regeneration process using a brine solution. Thanks to this, the device can operate automatically and maintain high water treatment efficiency for a long time.

Key benefits of use

• lower expenses,
• protection of heating devices and installations against limescale,
• reduced use of cleaning, washing, and laundry products,
• longer service life of household appliances, while cutlery and dishes are shinier and free from streaks,
• smooth skin without irritation and hair that feels pleasant to the touch,
• preservation of the softness and intense colors of fabrics,
• the device is almost maintenance-free, and the basic operating task is simply refilling salt for regeneration.

OCEAN RX series equipment

1. Automatic volumetric control valve RX 63B-3
2. Electronic controller with a liquid crystal display
3. BY-PASS with raw water mixer
4. Compact housing made of high-quality polyethylene
5. Corrosion-resistant fiberglass-reinforced tank with increased durability
6. 25 liters of media with a high capacity for removing magnesium and calcium ions
7. Tablet salt
8. Self-cleaning lower and upper distributor baskets
9. Brine valve controlling the flow of water to and from the brine tank, equipped with anti-overflow protection
10. Brine tank made of high-density polyethylene, impact-resistant and deformation-resistant

Controller with flow measurement

The operation of RX heads is based on modern rotating ceramic disc technology. Two ceramic discs are made of high-quality ceramic resistant to abrasion and corrosion. This solution ensures very good sealing inside the controller, and thus long-lasting and trouble-free operation.

The ceramic elements are resistant to the buildup of contaminants, including iron, among others, so they do not accumulate in the controller.

Main advantages of the RX control head:

• ceramic control valve,
• volume-time process control,
• immediate volumetric regeneration or delayed volumetric regeneration,
• operating cycle indicator,
• color LCD display,
• automatic button lock,
• BY-PASS with mixing – the head can be disconnected without shutting off the water in the installation,
• the set includes the control head and a connection kit,
• OCEAN RX 30 softeners have PZH approval and CE.

Installation and use

The softener is installed near the water meter, in a location where it can be connected to the sewer system or a floor drain. After completing the hydraulic connection and power supply, the device requires parameter settings according to the manual. Then salt should be poured into the tank.

From that moment, the softener automatically controls the amount of water flowing through it and selects the regeneration day.

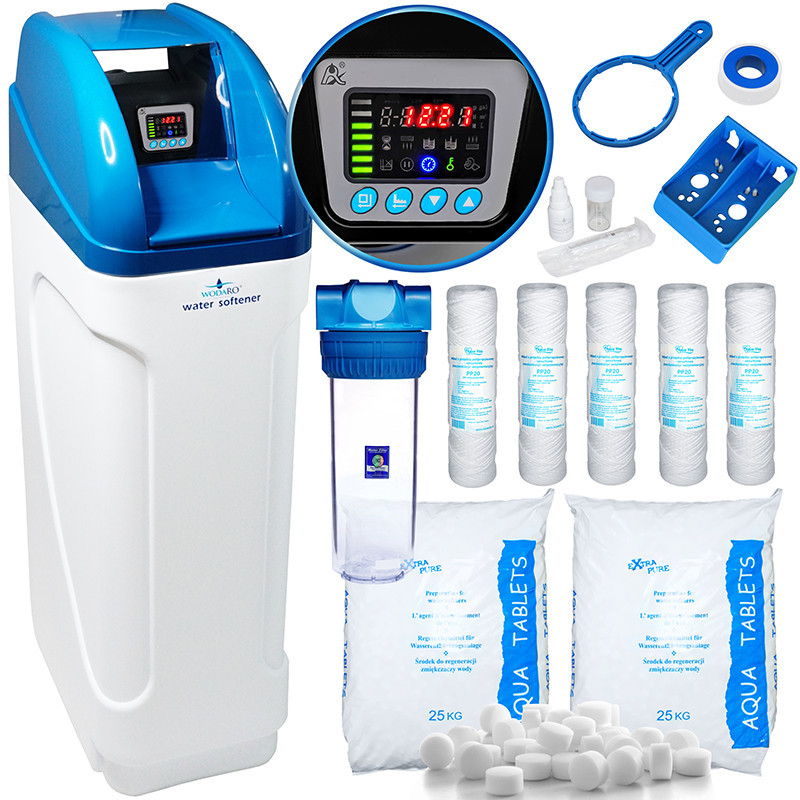

Set contents

• 2 x tablet salt (2 x 25 kg),
• inline pre-filter and accessories: wrench, mounting plate, Teflon tape,
• 5 x AquaVita 20 micron string cartridge,
• water hardness tester.

Additionally, the product materials also indicate a set including:

• tablet salt (25 kg),
• inline pre-filter and accessories: wrench, mounting plate,
• 5 x AquaVita 20 micron string cartridge,
• water hardness tester.

10" inline pre-filter

To protect the valve head against mechanical impurities carried in the water, installation of a 10" inline pre-filter with a polypropylene cartridge is recommended. The set includes the housing with a supply of 5 string cartridges.

The innovative 3-piece housing design makes cartridge replacement easier, because to unscrew the housing it is enough to unscrew only the ring. There is no need to rotate the entire sump, as in the case of the 2-piece version.

The transparent 10" housing allows visual assessment of the contamination level of the cartridge placed inside the sump. The 3-piece housing ensures maximum housing tightness and guarantees easy cartridge replacement. The head features a brass thread. The product was made from high-quality materials, and its production and assembly took place in the European Union.

5 x AquaVita PP20 string cartridge

The universal sediment cartridge made of polypropylene string by AquaVita captures all kinds of mechanical impurities, such as sand, silt, or rust. PP20 string polypropylene cartridges are made of pure polypropylene fiber wound around a filter core.

This design ensures an increase in filter density toward its core. These cartridges are intended for the pre-filtration of suspensions and mechanical sediments that can cause damage to heating devices and household equipment. It is a practical filter cartridge supporting the protection of the entire installation and the devices working with the softener.

Technical specifications
