OCEAN BNT MINI 10 water softener

Why choose the OCEAN BNT MINI 10?

The OCEAN BNT MINI 10 softener combines a compact design with high operating efficiency. The device has been prepared for automatic, convenient use and works well wherever hard water causes limescale buildup in the system and reduces everyday water comfort.

Thanks to the use of 10 liters of high-quality PUROLITE C100-E softening media, the device helps protect and extend the service life of heating equipment and household appliances, reduce the use of laundry, washing, and cleaning agents by up to 60%, lower heating costs by up to 20%, and improve the quality of utility water throughout the home.

Key advantages of the device

• High-quality compact housing.
• Aesthetic design.
• High quality of the components used.
• Corrosion-resistant reinforced tank with increased durability.
• Includes a BY-PASS valve and a MIXING valve for setting the final water hardness.
• Automatic and maintenance-free operation.
• Does not shut off water during regeneration.
• High-quality ion exchange resin.
• One of the best and most reliable BNT7650 controller models available on the market.
• Programmer in English and backlit display.
• Brine float valve providing overflow protection.
• Excellent access to the salt filling opening.
• Detailed installation manual in Polish.
• Effective protection of heating boilers and central heating systems against limescale buildup.
• Extended service life of household appliances such as washing machines and dishwashers, and lower energy consumption.
• Increased detergent efficiency by up to 40%.
• Energy savings of up to 30%.
• Soft, clean, and safe water throughout the home.
• More durable fabrics that are soft to the touch and retain vivid colors.
• Healthy, smooth skin, shiny hair, and no toxic chlorine fumes during bathing.

BNT control head and convenient operation

The softener is equipped with a BNT series controller with an English menu, making configuration and daily operation easy and intuitive. The backlit display makes it easier to monitor settings, while automatic operation reduces the need for ongoing user intervention.

The control head is equipped with a MIXING residual hardness valve, which allows precise adjustment of the outlet water hardness. The set also includes a BY-PASS valve, making operation and installation servicing easier.

How does PUROLITE C100-E media work?

The device uses PUROLITE C100-E ion exchange resin with a high capacity for removing magnesium and calcium ions. These are the components responsible for water hardness and limescale formation.

When the water comes into contact with the softening media, calcium and magnesium ions are exchanged for sodium ions. As a result, soft water enters the plumbing system, and the ions responsible for hardness are discharged into the sewer during device regeneration.

This operating method makes the softener an important part of a household water treatment system. In many installations, it works as a stage preparing water for further solutions, such as an under-sink water filter, a filter cartridge for mechanical filtration, or more advanced systems such as a reverse osmosis filter, RO filter, reverse osmosis system, or reverse osmosis used for drinking water.

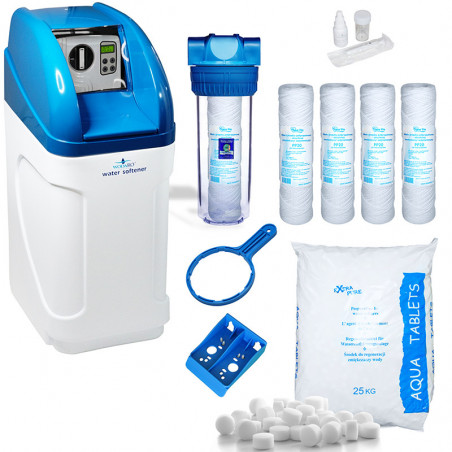

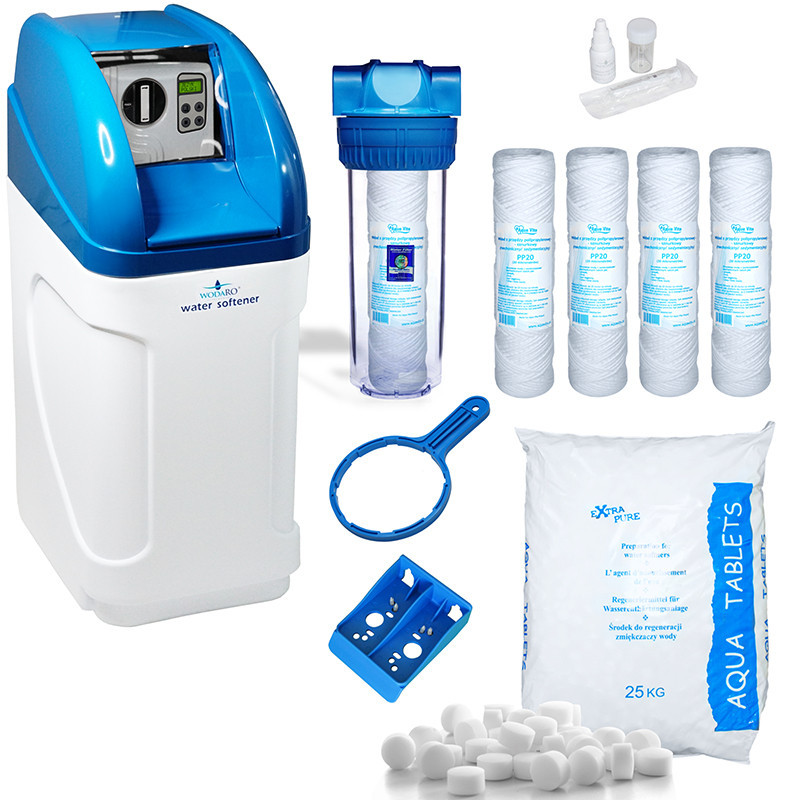

What do you get in the set?

The package includes not only the water softener itself, but also practical accessories that make start-up and daily operation of the device easier.

• Tablet salt (25 kg)
• 10" inline pre-filter and accessories (wrench, mounting plate)
• 5 x AquaVita 20 micron string wound cartridge
• Water hardness tester

10" inline pre-filter with accessories

To protect the control head against mechanical contaminants carried in the water, installation of a 10" inline pre-filter with a polypropylene cartridge is recommended. The set includes the housing with a supply of 5 string wound cartridges.

The innovative 3-piece housing design makes cartridge replacement easier, because to unscrew the housing it is enough to unscrew only the ring. There is no need to rotate the entire bowl, as in the version consisting of 2 parts. The transparent 10" housing allows visual assessment of the degree of contamination of the cartridge placed inside the bowl.

The 3-piece housing ensures maximum tightness of the housing and guarantees easy cartridge replacement. The head has a brass thread. The product is made of high-quality materials, and the entire element was manufactured and assembled in the European Union.

5 x PP20 AquaVita string wound cartridge

The set includes 5 universal sediment cartridges made of polypropylene string from AquaVita. The cartridges retain various types of mechanical contaminants such as sand, silt, or rust.

PP20 string wound polypropylene cartridges are made of pure polypropylene fiber wound around a filter core. This design ensures increasing filter density toward its core. The cartridges are intended for preliminary filtration of suspended solids and mechanical sediments that may cause damage to heating equipment and household appliances.

It is a practical filter cartridge that supports protection of the entire system and improves the operational safety of the softener.

25 kg tablet salt for resin regeneration

The set includes 1 bag of vacuum tablet salt weighing 25 kg. Tablet salt is used as a regenerating agent for ion exchange resin in central softening stations.

The package contains salt in tablet form, which is easy to pour into the salt chamber in the softener. This is high-quality salt. Compared to cheap substitutes, it contains an anti-caking agent. The salt can also be used in dishwashers and may serve as a substitute for expensive salts intended specifically for that purpose.

Operation and everyday use

OCEAN BNT MINI 10 has been designed for automatic and maintenance-free operation. The regeneration system is controlled in volumetric-time mode, which allows the device to adapt its operation to actual water consumption and the operating schedule.

The device does not shut off water during regeneration. The applied brine float valve provides overflow protection, and convenient access to the salt filling opening makes regular replenishment of the regenerating material easier.

Capacity between regenerations

The amount of soft water that can be drawn between regenerations depends on the hardness of the supply water. For individual values, it is as follows:

• 12 dH - 2.5 m3 of water
• 15 dH - 2.0 m3 of water
• 18 dH - 1.6 m3 of water
• 21 dH - 1.4 m3 of water
• 24 dH - 1.2 m3 of water
• 27 dH - 1.1 m3 of water
• 30 dH - 1.0 m3 of water

Additional important information

• Connection: 1"
• Height: 67 cm
• Width: 32 cm
• Depth: 52 cm

Technical specifications
