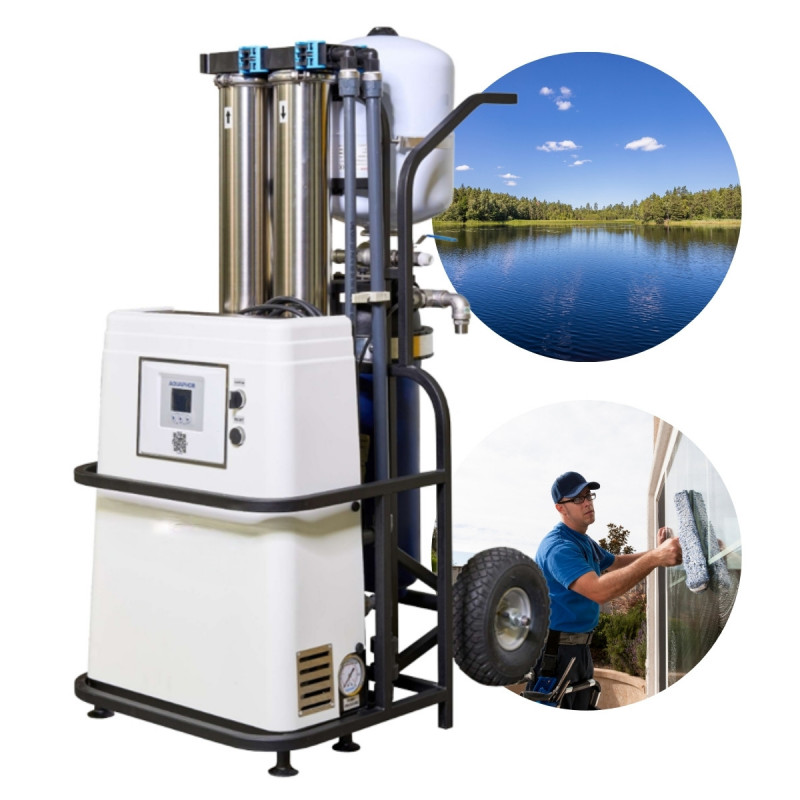

WODARO PRO-M-500 Mobile Reverse Osmosis Water Treatment Station
Rating
WODARO PRO-M-500 (WD-PRO-M-500) is a professional mobile water treatment station using reverse osmosis technology. Mounted on a wheeled Read moreShow less
WODARO PRO-M-500 (WD-PRO-M-500) is a professional mobile water treatment station using reverse osmosis technology. Mounted on a wheeled frame, it is ready to operate in Plug & Play mode. It provides up to 500 l/h of purified water, reducing salts and dissolved contaminants (approximately 90-95%). The VIKING pre-filtration with B520-PRO-AS cartridge limits sediments and protects the membranes. Ideal for service, industry, PV, and emergency tasks.
Benefits
Specifications
APRO-IM-500
- Alkalizer / ionizer
- No
- Maximum flow
- 0.5 m³/h
- Membrane size
- 4040
- Mineralizer
- No
- Model
- WD-PRO-M-500
- Product type
- Reverse osmosis system
View full specifications
- Pump
- Yes
- Tank
- Yes
- Technology
- Mechanical filtration, Reverse osmosis
- UV stage
- No
Description
The WODARO PRO-M-500 Mobile Water Treatment Station Reverse Osmosis is a professional, mobile reverse osmosis system for field work and service applications. It is a ready-to-operate Plug & Play set that delivers up to 500 l/h of purified water, effectively supports water treatment, reduces the content of salts and dissolved contaminants, and performs wherever independence, quick start-up, and stable operation matter. Thanks to its design on a mobile wheeled frame, VIKING pre-filtration, two RO membranes, and automatic operation control, it is an efficient reverse osmosis filter for service, industry, PV, and emergency response applications.
Mobile RO station for field work, service, and industry
WODARO PRO-M-500 is a professional mobile water treatment station designed for anywhere high-quality purified water is needed while device mobility is also important. This water filtration system has been designed for use in industry, services, maintenance, municipal applications, and during emergency events.
The device uses reverse osmosis technology, which makes it an efficient osmosis filter for producing water with a reduced content of salts and other dissolved contaminants. The mobile housing format makes transport easier, allows quick setup of the workstation, and enables immediate treatment start-up.
Key advantages of WODARO PRO-M-500
- Mobile, self-sufficient solution – the entire station is mounted on a durable frame with transport wheels.
- Plug & Play – quick installation and start-up without complicated assembly work.
- Reverse osmosis with high reduction of salts and dissolved contaminants in water.
- Water consumption reduced by up to about 40% compared with simple rinsing systems.
- Includes an efficient pre-filter with antiscalant, extending the service life of RO membranes.
- Fully automatic operation with an intelligent controller.
- Compact dimensions, low weight, and low energy consumption – ideal for mobile crews.
Applications of the mobile water treatment station
WODARO PRO-M-500 is a versatile reverse osmosis system that can be used wherever a traditional stationary installation is not practical or cannot be started up quickly.
- Creating mobile water treatment points during water supply interruptions or contamination of the municipal network.
- Support for crisis situations (floods, intake failures, local contamination) – after appropriate pre-treatment of raw water.
- Professional cleaning and maintenance of photovoltaic panels with demineralized water, without streaks or limescale deposits.
- Cleaning large glazed surfaces, facades, shop windows, and aluminum structures.
- Filling and topping up central heating systems and cooling circuits with water of low conductivity.
- Service work and maintenance in industrial plants, municipal facilities, and local government units.
- A solution for cleaning companies, PV service providers, water and sewage companies, and municipalities that need a mobile water treatment station.
How the WODARO PRO-M-500 reverse osmosis station works
WODARO PRO-M-500 is a mobile water treatment station based on reverse osmosis technology. The entire filtration process has been designed to protect the device’s key components while ensuring stable production of purified water.
Pre-filtration stage
Raw water first enters the VIKING pre-filter housing, where the B520-PRO-AS cartridge with antiscalant effect operates. This cartridge traps mechanical impurities and limits scale precipitation, ensuring stable operation of pumps and membranes.
RO membrane stage
The water is then directed to two XLP11-4040 RO membranes, where most dissolved salts, metals, and some organic compounds are removed. This water filter with an osmosis membrane produces purified water with parameters suitable for technical, service, and specialized applications.
Collection of purified water
The obtained permeate, i.e. purified water, is directed to the built-in 14-liter tank, from which it can be drawn for further use.
Control and automation
The system is equipped with an electrical panel with an intelligent controller, a Grundfos antiscalant dosing pump, and a GSM/GPRS modem. This configuration supports device automation and makes it easier to monitor operating parameters depending on the system setup.
Set contents
The set includes complete equipment needed to start working with the mobile water treatment station:
- Complete WD-PRO-M-500 reverse osmosis station on a mobile frame with wheels.
- VIKING pre-filter housing.
- B520-PRO-AS pre-filter cartridge (antiscalant, high capacity up to approx. 150,000 l of raw water).
- Two XLP11-4040 RO membranes for deep water treatment.
- Electrical panel with an intelligent controller automating station operation.
- 14-liter permeate tank.
- Grundfos antiscalant dosing pump.
- GSM/GPRS modem (remote parameter monitoring possible – depending on configuration).
Optional accessories
Suction-discharge pump with sand filter
For an additional fee, the WODARO PRO-M-500 station can be equipped with an external suction-discharge pump set together with a sand filter. This solution is especially recommended when drawing water from rivers, open reservoirs, or wells.
Such a set helps in the preliminary removal of sand and mechanical impurities and provides stable inlet pressure to the RO station. In practice, this translates into safer operation of the entire system and better protection of the membranes against damage.
Safety and operation
WODARO PRO-M-500 uses design solutions employed in professional AQUAPHOR Professional systems manufactured in the European Union. Components that come into contact with water are made of materials approved for contact with drinking water.
Depending on the quality of the raw water, the system may require additional pre-treatment, as well as separate disinfection, if the water is to be intended for human consumption.
Regular cartridge replacement, membrane inspection, and periodic CIP cycles help maintain high water quality and reliable device operation for years.
Technical specifications
| Model | WD-PRO-M-500 |
|---|---|
| Permeate capacity | up to 500 l/h of purified water |
| RO membranes | 2 x XLP11-4040 |
| Pre-filtration | VIKING housing + B520-PRO-AS cartridge (antiscalant) |
| Maximum feed water TDS | up to approx. 2000 ppm (depending on operating conditions) |
| Salt reduction | approximately 90–95% |
| Power consumption | approximately 0.65 kWh |
| Power supply | 230 V, 50 Hz |
| Dimensions (L x W x H) | 670 x 370 x 1280 mm |
| Device weight | approximately 58 kg |
Questions
What is the WODARO PRO-M-500 mobile water treatment station used for?
The device is used to produce purified water using reverse osmosis technology. It is suitable for service, industrial, and municipal applications, for cleaning photovoltaic panels, topping up heating and cooling systems, and during crisis response activities.
What is the capacity of the WODARO PRO-M-500 station?
The permeate capacity is up to 500 l/h of purified water. Actual capacity may depend on operating conditions and the quality of the feed water.
What contaminants does the reverse osmosis system remove?
The system reduces most dissolved salts, metals, and some organic compounds. Salt reduction is approximately 90–95%.
Is the device ready to operate immediately after delivery?
Yes, the station has been prepared for Plug & Play operation. This means quick start-up without complicated assembly work.
What does the pre-filtration look like in this model?
Water first enters the VIKING housing with the B520-PRO-AS cartridge. The cartridge traps mechanical impurities and limits scale precipitation, helping protect the pump and RO membranes.
Is the station suitable for drawing water from a river, well, or open reservoir?
Such use is possible, however in these conditions it is especially recommended to equip the station with an optional external suction-discharge pump set with a sand filter, which helps remove sand and mechanical impurities and stabilizes the inlet pressure.
Is the water from the device suitable for cleaning PV panels and glazing?
Yes, the station works very well for cleaning photovoltaic panels, large glazed surfaces, shop windows, facades, and aluminum structures. Water with reduced salt content helps limit streaks and limescale deposits.
What maintenance tasks are important for long device life?
To maintain high water quality and reliable operation, regular cartridge replacement, membrane inspection, and periodic CIP cycles are recommended. The scope and frequency of service depend on operating intensity and raw water quality.
Can the device be used to prepare water for drinking?
Components that come into contact with water are made of materials approved for contact with drinking water; however, if the water is intended for consumption, additional pre-treatment and separate disinfection may be required, depending on the quality of the raw water.
