EXCLUSIVE CARBON 30 modern water softener

Hybrid 3-in-1 water softener for comprehensive treatment

EXCLUSIVE CARBON 30 was designed as a device that combines several functions in one housing. In practice, this means not only softening water, but also improving its utility parameters and providing additional protection for the media against the development of bacterial flora.

The device performs well in single-family homes, restaurants, car washes, boiler rooms, and other places where soft water, reduced deposits, and more comfortable use of the water system are important. By combining several technologies in one compact design, it saves space and eliminates the need to use two separate devices.

Soft water also brings measurable operating benefits. In households and commercial facilities, water softeners can reduce the use of laundry detergents and cleaning agents by up to 50%. In addition, soft water does not dry out the skin, helps reduce dandruff problems, and may be more beneficial for people prone to reactions to hard water, chlorine, and heavy metals.

How EXCLUSIVE CARBON 30 works

The device uses three complementary media, so it operates more broadly than a standard water softener.

Water softening

Water softening consists of removing the components that cause hardness from water. This process is based on replacing calcium and magnesium ions, which are responsible for hardness, with sodium ions as the water flows through the ion-exchange resin. When the ion-exchange capacity of the media is exhausted, the media is regenerated using a brine solution.

Activated carbon

The use of activated carbon extends the service life of the ion-exchange media while also improving water quality in terms of organoleptic properties. Activated carbon helps remove the unpleasant taste and smell of chlorine and eliminates organic contaminants down to trace amounts.

KDF media

KDF media reduces the concentration of iron and heavy metals such as lead, mercury, and arsenic. In addition, it has bacteriostatic properties, which protects the media against the development of bacterial flora and supports stable filtration efficiency.

Key benefits in everyday use

• lower expenses and protection of heating devices and installations against limescale buildup,
• reduced consumption of cleaning, washing, and laundry products, as well as longer service life of household appliances,
• shinier cutlery and dishes, free from streaks,
• smooth skin without irritation and pleasant-to-the-touch hair,
• preservation of softness and intense colors of fabrics.

3 media in 1 device

Activated carbon

Activated carbon filtration makes it possible to remove or reduce the concentration of many volatile organic compounds, pesticides, and herbicides, as well as chlorine, benzene, trihalomethane compounds, radon, solvents, and many other man-made chemical substances that may be present in tap water. Additionally, activated carbon removes unpleasant water odors.

Softening media

Water in a household installation is used not only for preparing meals and beverages, but also for laundry, cleaning, and daily hygiene. Its quality affects the condition of the boiler, heating system, fittings, and household appliances. Hard water negatively impacts the durability of devices, comfort of use, and the results of washing and cleaning.

A modern water softener significantly improves the quality of water used in the household, extends the service life of the boiler and heating system, increases the efficiency of household appliances, and helps keep fittings in better condition. One of the most important advantages of water softeners is cost savings: lower maintenance costs, less frequent equipment replacement, lower consumption of energy, water, and detergents, and better durability of clothes and dishes washed or rinsed in soft water.

KDF media

The addition of KDF media prevents the growth of bacteria on the filtration media. This is an important safeguard because biofilm reduces filtration efficiency. KDF helps lower the concentration of heavy metals present in water, such as arsenic, cadmium, lead, and mercury, as well as iron compounds. In addition, it effectively binds pesticides and significantly reduces the content of hydrogen sulfide in water.

Microcomputer control head and automatic regeneration

EXCLUSIVE CARBON 30 is controlled by a microcomputer that allows the operating parameters of the water treatment system to be set according to installation conditions and user demand. Thanks to this, the device can operate economically, and the regeneration process takes place automatically, saving time and reducing operating costs.

The head uses simple software displayed on the LCD screen. The main screen shows the current time and additionally displays information about the regeneration mode, remaining volume, or the number of days remaining until regeneration.

Control features

• Polish menu
• Fully controlled operating cycles
• Manual cycle change option
• Retention of operating parameters for up to 14 days in the event of a power outage
• SE controller
• Very low electricity consumption
• Safe 12V power supply
• Easy operation
• Large display – no confusing abbreviation codes, graphic menu like on a smartphone
• Precise controller operation control with the help of electronic sensors
• Access to “historical” service data
• Holiday mode – water and salt savings
• Settings retained in the controller memory in the event of power interruptions
• Integrated bypass connection panel, connections made using quick-connect technology

Head operating mode

1. Softening
2. Regeneration (Up-Flow)

Regeneration mode

1. Timed regeneration
2. Immediate regeneration
3. Delayed regeneration
4. Time-volume regeneration

• Holiday Mode – the media is rinsed during prolonged absence
• Intelligent controller – calculates ion-exchange capacity, number of days between regenerations, and regenerant tank filling time

Device design

1. Modern control panel
2. Controller
3. High-quality, durable compact softener housing
4. Multi-layer, fiberglass-reinforced media tank, corrosion-resistant
5. Carbon media from coconut shells
6. Ion-exchange media ensuring ideal water softening
7. KDF media with bacteriostatic properties
8. Self-cleaning distributor baskets (lower and upper)
9. Tablet salt
10. Brine tank made of high-density polyethylene, impact-resistant and non-deforming
11. Brine
12. Brine valve controlling water flow to and from the brine tank, equipped with overflow protection

Why choose EXCLUSIVE CARBON 30

• High operating parameters and efficiency in small, compact dimensions.
• No need to replace filter cartridges; the carbon layer contained in the device does not need to be replaced more often than the ion-exchange resin.
• Large backlit LCD display allowing all device functions to be monitored.
• Exceptional reliability and a 5-year warranty period.
• Intelligent automatic volume-logical control with up-flow regeneration and many additional functions.
• Can also be used for well water that has been previously de-ironed and de-manganized, ensuring comprehensive, multi-stage treatment.

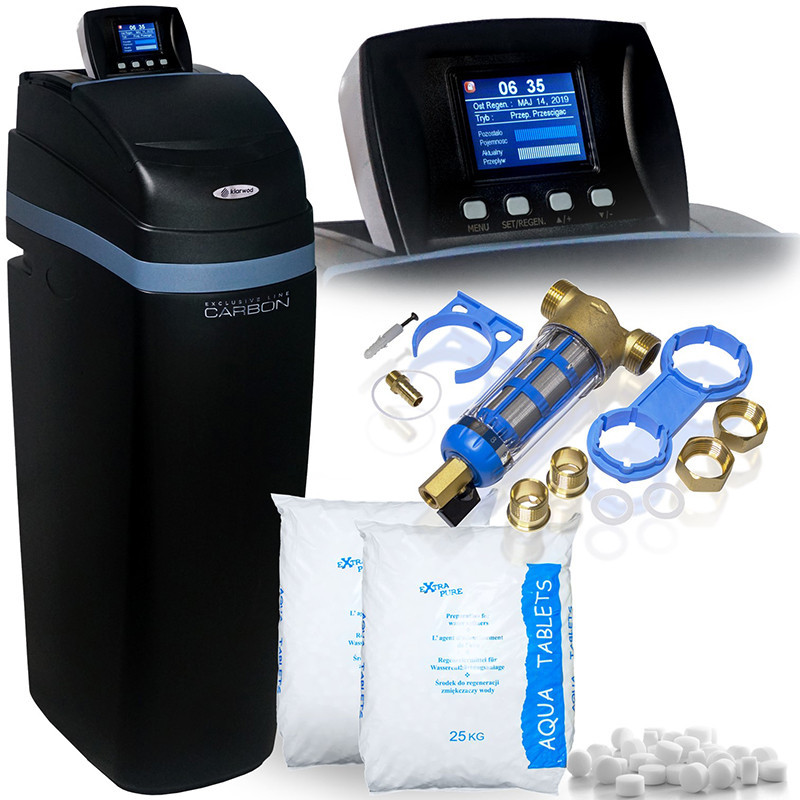

Set contents and free extras

Together with the device, you receive a practical starter set that facilitates installation and start-up.

Free extra 1: high-class self-cleaning brass filter

The filter provides continuous water filtration, trapping contaminants such as rust, sand, or hemp fibers on the filter mesh. After opening the ball valve in the lower part of the housing, contaminants collected at the bottom are removed outside the filter. Thanks to its small size, it can also be used where little installation space is available.

The filter can be installed in all types of systems. It works particularly well in household installations, helping maintain compliance with applicable standards, as well as in selected industrial applications.

Advantages of the self-cleaning filter

• Easy installation
• Continuous supply of filtered water, also during filter rinsing
• Transparent filter housing made of impact-resistant synthetic material, allowing easy monitoring of the cartridge contamination level
• Easy rinsing
• Maintenance and repairs without the need to dismantle the device from the installation
• Rotating frame facilitating cleaning

Free extra 2: tablet salt

The set includes 2 bags of salt, 25 kg each.

Additional important information

• The Carbon device is controlled by a microcomputer and allows the operating parameters of the water treatment system to be set according to your water. Thanks to this, you can use your device economically, and regeneration will take place automatically, allowing you to save time and money.
• The head is controlled by simple software displayed on the LCD screen. The main screen shows the current time. Additionally, information about the regeneration mode, remaining volume, or the number of days until regeneration is displayed.
• Connection diameter: 1”
