Condensate neutralisers for boilers

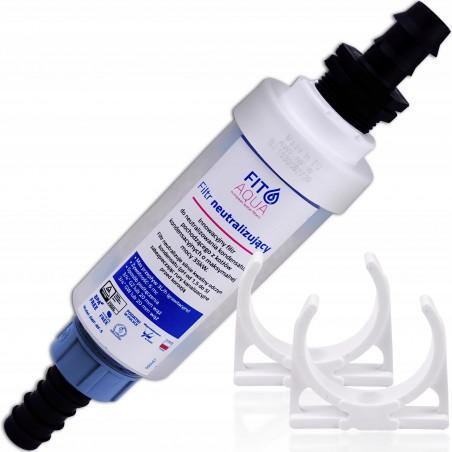

CONDENSATE NEUTRALIZER FOR CONDENSING BOILERS
Rating
Condensate neutralizer for condensing boilers designed for the safe discharge of acidic condensate into the sewage system. It raises th Read moreShow less
Condensate neutralizer for condensing boilers designed for the safe discharge of acidic condensate into the sewage system. It raises the condensate pH (1.5-5) to above 7, helping to protect pipes and installation components from corrosion. It operates gravitationally, with a maximum flow rate of 3 l/h. For boilers with a power of up to 35 kW. Cartridge lifespan: up to 6 months.
Specifications
AWF-NF-S
In stock
- Connection size
- 3/4″
- Maximum flow
- 0.05 l/min
- Product type
- Condensate neutralizer
Description
The condensate neutralizer for FIT aqua condensing furnaces and boilers is a practical installation component responsible for safely discharging acidic condensate into the sewage system. The device raises the condensate pH from 1.5-5 to above 7, helping reduce the risk of corrosion of pipes and other elements of the drainage system. It operates by gravity, handles a flow rate of up to 3 l/h, and is designed for condensing boilers with a power output of up to 35 kW. This compact solution for installation protection, just like a well-chosen water filter or filter cartridge, supports everyday water treatment and the safety of home systems.
FIT aqua condensate neutralizer for condensing boilers
The acidic condensate generated during the operation of a condensing boiler should not be discharged directly into the sewage system without prior treatment. The FIT aqua condensate neutralizer has been designed precisely to change the condensate pH to a level that is safer for the sewer installation and to reduce the possibility of damage caused by the acidic environment.
The product is used in installations with condensing boilers, where simple installation, effective operation, and a compact format matter. Thanks to gravity operation, it does not require complicated servicing, and its parameters allow it to work with boilers with a power output of up to 35 kW.
Main benefits
- neutralizes acidic condensate in the pH range 1.5-5
- raises the condensate pH to above 7
- helps protect sewage pipes from damage and corrosion
- operates by gravity, without the need for complicated additional solutions
- suitable for condensing boilers with a maximum output of 35 kW
- handles a maximum flow rate of up to 3 liters per hour
- has compact dimensions that make installation easier
- is a product made in Poland
Application
The condensate neutralizer is designed to neutralize condensate from condensing boilers. Its task is to change the acidic pH of the condensate to neutral, making discharge of the liquid into the sewage system safer for pipes and other elements of the installation.
This is a particularly useful solution wherever the durability of the condensate drainage system and the reduction of the negative impact of acidic condensate on installation materials are important.
How does the condensate neutralizer work?
The device operates by gravity. The condensate flows through the neutralizer, where its acidic pH is raised from 1.5-5 to above 7. In practice, this means that the condensate becomes much less aggressive to pipes and installation connections before being discharged into the sewage system.
This solution supports the protection of the building infrastructure and helps better preserve the durability of components that come into contact with condensate from the condensing boiler.
The neutralizer is designed for operation with a maximum flow of 3 l/h and for condensing boilers with a power output of up to 35 kW. For proper operation, it should be used in accordance with the permitted operating parameters and the service life of the cartridge should be monitored, as its lifespan is up to 6 months.
Installation and connection
The design has been prepared for convenient integration into the condensate drainage system. The neutralizer can be connected using suitable threaded connections or a 20 mm hose, which makes it easier to adapt to the existing system.
- inlet/outlet: 3/4" male thread or 20 mm hose
- inlet/outlet: 3/4" female thread or 20 mm hose
The compact design with a length of 200 mm and an outer diameter of 54 mm allows the product to be conveniently placed in typical installation spaces intended for condensate drainage.
Operation
The neutralizer is designed for everyday operation in installations with a condensing boiler. Its operation does not require complicated handling, but like any working component in contact with discharged condensate, it should be periodically checked for wear.
The cartridge lifespan is up to 6 months. Regular inspection of the operating condition helps maintain effective condensate neutralization and proper protection of the sewage system.
Set contents
- neutralizing filter - 1 piece
- 3/4" female thread connection - 20 mm plug (with gasket) - 1 piece
- 3/4" male thread connection - 20 mm plug - 1 piece
- mounting brackets - 2 pieces
- 3/4" gasket - 1 piece
Additional important information
- Condensate neutralization: changes acidic condensate (pH 1.5-5) to neutral (pH above 7), preventing damage to sewage pipes
Technical specification
| Product | Condensate neutralizer for FIT aqua condensing boilers |
|---|---|
| Manufacture | Made in Poland |
| Intended use | For neutralizing condensate from condensing boilers |
| Condensate pH range at inlet | pH 1.5-5 |
| pH after neutralization | Above 7 |
| Maximum flow rate | 3 liters per hour |
| Operating principle | Gravity flow |
| Connection method | 3/4" male thread or 20 mm hose, 3/4" female thread or 20 mm hose |
| Boiler application | For condensing boilers with a maximum output of 35 kW |
| Service life | Up to 6 months |
| Length | 200 mm |
| Outer diameter | 54 mm |
| Neutralizing filter | 1 piece |
| Connection 1 | 3/4" female thread - 20 mm plug (with gasket) - 1 piece |
| Connection 2 | 3/4" male thread - 20 mm plug - 1 piece |
| Mounting brackets | 2 pieces |
| Gasket | 3/4" - 1 piece |
FAQ
What is a condensate neutralizer used for?
The neutralizer is used to change the acidic nature of condensate produced in condensing boilers. This makes the condensate safer to discharge into the sewage system, and the risk of damage to pipes and installation components is reduced.
What condensate pH is handled by the CONDENSATE NEUTRALIZER FOR CONDENSING BOILERS?
The device neutralizes condensate with a pH of 1.5-5 and raises it to above 7.
Is the neutralizer suitable for every condensing boiler?
The model is designed for condensing boilers with a maximum output of 35 kW. Before installation, it is worth making sure that the installation parameters fall within this range.
What is the maximum condensate flow rate?
The maximum flow rate is 3 liters per hour. This is an important parameter to consider when selecting a neutralizer for a specific installation.
How is the neutralizer connected?
The product can be connected using 3/4" male thread or 20 mm hose connections, as well as 3/4" female thread or 20 mm hose connections. The set includes the necessary mounting components to make installation easier.
How long does the neutralizing cartridge last?
The cartridge lifespan is up to 6 months. To maintain efficiency, it is worth regularly checking the operating condition of the device.
Does the device require power supply?
No, the neutralizer operates by gravity. This means simple operation without the need for an additional electrical power supply.
What is included in the set?
The set includes: 1 neutralizing filter, 1 piece of 3/4" female thread - 20 mm plug connection with gasket, 1 piece of 3/4" male thread - 20 mm plug connection, 2 mounting brackets, and 1 piece of 3/4" gasket.
What are the dimensions of the neutralizer?
The product is 200 mm long and has an outer diameter of 54 mm, making it easy to fit into many standard installation spaces.
