BIG BLUE WATER FILTER FH20B1-B-WB FCCEL5M20B CARTRIDGE
Rating
Filtration set: BIG BLUE 20" FH20B1-B-WB housing + FCCEL5M20B 5-micron pleated cartridge. Installation on the cold water supply to a ho Read moreShow less
Filtration set: BIG BLUE 20" FH20B1-B-WB housing + FCCEL5M20B 5-micron pleated cartridge. Installation on the cold water supply to a house or apartment, also in series systems. The mechanical cartridge removes sand, rust, and suspensions, protecting devices (e.g., softener, iron remover, boiler) from deposits. The cartridge can be rinsed and reused (up to 3 times).
Benefits
- Captures sand, sediment and rust particles
- Reusable after rinsing
Specifications
998 Items
- Cartridge length
- 20″
- Compatibility
- Big Blue
- Connection size
- 1″
- Filtration rating
- 5 µm
- Housing standard
- Big Blue 20″
- Maximum working temperature
- 45 °C
View full specifications
- Minimum working temperature
- 2 °C
- Product type
- Pre-filtration system
Description
BIG BLUE WATER FILTER FH20B1-B-WB CARTRIDGE FCCEL5M20B is a complete water filter designed for pre-filtration of cold water in a house, apartment, and utility applications. The set combines a BIG BLUE 20" in-line housing with a 5 µm pleated filter cartridge that effectively traps sand, rust, sludge, and other suspended matter. It is a practical installation component supporting water treatment and protecting devices such as a water softener, iron remover, or boiler. It works well as a first stage before a further water filtration system is introduced into the installation, as well as protection for solutions such as reverse osmosis and other systems requiring reduced mechanical contamination.
BIG BLUE 20" filtration set for cold water

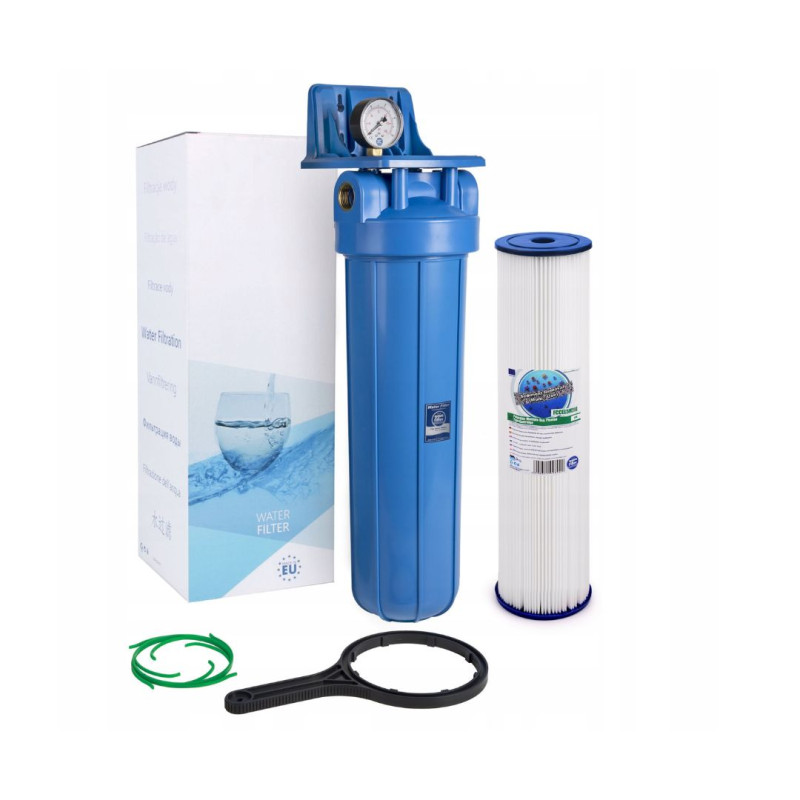

The set includes a 20" BIG BLUE FH20B1-B-WB housing and an FCCEL5M20B pleated filter cartridge with a filtration rating of 5 microns. This solution is intended for installation on the pipe supplying cold water to a house or apartment.
The housing can operate as a single in-line filter or be connected in series with subsequent filtration stages. Thanks to its high capacity, it is used not only in domestic installations but also in industrial environments.
Effective protection of installations and devices
The set has been designed for mechanical filtration of contaminants present in cold water. The pleated cartridge traps solid particles, helping to limit sediment buildup in downstream installation components.
Installing the FH20B1-B-WB housing before devices such as a water softener, iron remover, or boiler effectively protects them from contamination and can positively affect their service life.
This type of filter cartridge is often used as the first stage of drinking water and general-purpose water filtration. It works well with more extensive treatment systems in which water, after pre-filtration, flows to subsequent modules.
What contaminants does the 5 µm cartridge remove?
The mechanical pleated cartridge removes mechanical contaminants such as:
- sand,
- rust,
- sludge,
- suspended matter.
A filtration rating of 5 microns means the set works well wherever the goal is to capture fine solid particles before water is fed to further devices or additional treatment stages.
Main advantages of the FCCEL5M20B pleated cartridge
- Removes mechanical contaminants (rust, sand, sludge, suspended matter).
- Mainly used as the first stage of drinking water and general-purpose water filtration.
- Reusable cartridge.
- Pleated construction provides higher filtration efficiency.
- Provides excellent filtration with low pressure drop.
- Fits 20'' BIG BLUE housings.
The pleated design increases the working surface area of the filter media, which results in effective separation of contaminants while maintaining favorable flow conditions.
FH20B1-B-WB housing design
The BIG BLUE FH20B1-B-WB in-line housing consists of two parts: the sump and the head with a 1" brass thread. This design was developed for convenient installation and stable operation in a cold water system.
The model is equipped with an air-release valve that allows air trapped in the filter to be released after cartridge replacement. In addition, a pressure gauge is installed to monitor the condition of the cartridges.
Thanks to the use of the same slot for the air release and the pressure gauge, it is possible to expand the housing with a second pressure gauge and measure the pressure at the inlet and outlet of the water from the housing. The second pressure gauge is not included in the set and must be purchased separately.
An additional brass insert mounted in the slot allows the air-release valve and pressure gauge to be screwed in and out freely without the risk of damaging the slot thread.
Operation and reuse of the cartridge
The FCCEL5M20B is a reusable 20" cartridge designed for cold water filtration in BIG BLUE housings. It can be used up to 3 times, provided it is washed beforehand, meaning rinsed under running water.
The cartridge service life is 3-6 months until the first rinse. The actual operating time depends on the quality of the incoming water and the amount of contaminants retained.
The set is intended for filtration of cold water. The FCCEL series operates in the temperature range of 2-45 °C. When reusing the cartridge, it should be thoroughly rinsed under running water beforehand. The maximum number of uses is up to 3 times.
Use in domestic and advanced filtration systems
This set can serve as a standalone mechanical filter at the water inlet to a building or operate as part of a more advanced installation. It works well as protection for heating and treatment devices, as well as a pre-stage where an osmosis filter, reverse osmosis filter, or a complete reverse osmosis system is used further downstream.
Removing sand, rust, and suspended matter at the beginning of the installation helps improve the operating conditions of subsequent components and reduces the load on more delicate filtration elements.
* The cartridge service life depends on the quality of the incoming water.
Additional important information
- Dimensions (inch): 20 4 1/2 (cm) 50.8 11.5
Technical specification
| Set type | 20" BIG BLUE housing + 5 micron pleated water filter |
|---|---|
| Housing model | FH20B1-B-WB |
| Cartridge model | FCCEL5M20B |
| Catalog number | FCCEL5M20B |
| Cartridge size | 20"BB |
| Dimensions | 20 x 4 1/2" (50.8 x 11.5 cm) |
| Filtration rating | 5 microns |
| Operating temperature range | 2-45 °C |
| Cartridge service life | 3-6 months (until the first rinse) |
| Application | Cold water filtration |
| Removed contaminants | Sand, rust, sludge, suspended matter |
| Head thread | 1" brass |
| Housing components | Sump and head |
| Housing equipment | Air-release valve and pressure gauge |
| Expansion option | Yes, with a second pressure gauge for measuring pressure at the inlet and outlet of the water |
| Cartridge reuse | Yes, after washing and rinsing under running water, up to 3 times |
Choose a set or individual cartridges. Replacement intervals depend on the cartridge and operating conditions.
Individual cartridges 1
Questions
What is this BIG BLUE 20" set used for?
The set is used for mechanical filtration of cold water. It traps contaminants such as sand, rust, sludge, and suspended matter, helping protect the installation and devices connected further downstream.
Is the BIG BLUE WATER FILTER FH20B1-B-WB CARTRIDGE FCCEL5M20B suitable for installation in a house or apartment?
Yes. The housing is installed on the pipe supplying cold water to a house or apartment. It can operate as a single filter or as part of a series installation.
What equipment can the filter protect from sediment?
It is worth installing the filter before devices such as a water softener, iron remover, or boiler. Removing mechanical contaminants before these devices reduces sediment buildup and supports proper operation.
What filtration rating does the FCCEL5M20B cartridge have?
The cartridge provides a filtration rating of 5 microns. This is suitable for capturing fine mechanical contaminants present in cold water.
Can the cartridge be reused?
Yes. The cartridge is reusable and, after prior washing and rinsing under running water, can be used again, up to 3 times maximum.
How long can the cartridge operate before the first rinse?
The cartridge service life is 3-6 months until the first rinse. The actual operating time depends on water quality and the amount of mechanical contaminants.
Does the cartridge fit every housing?
The FCCEL5M20B cartridge fits BIG BLUE housings in 20'' size.
Is the filter suitable for hot water?
No. The set and the FCCEL series cartridge are intended for cold water filtration, within an operating temperature range of 2-45 °C.
What is the pressure gauge in the housing used for?
The pressure gauge helps monitor the condition of the cartridge. This makes it easier to determine when the cartridge requires cleaning or replacement.
Can the housing be expanded with additional pressure measurement?
Yes. The housing design allows a second pressure gauge to be installed, enabling pressure measurement at the inlet and outlet of the water from the housing. The additional pressure gauge must be purchased separately.
