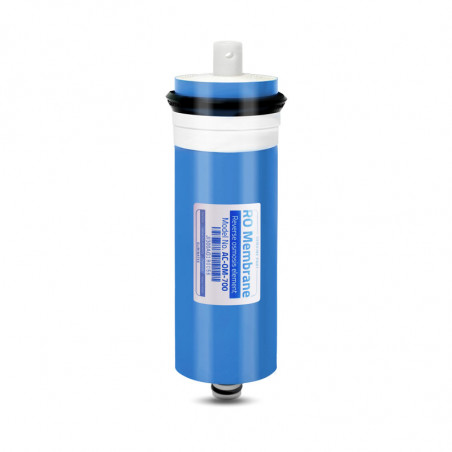

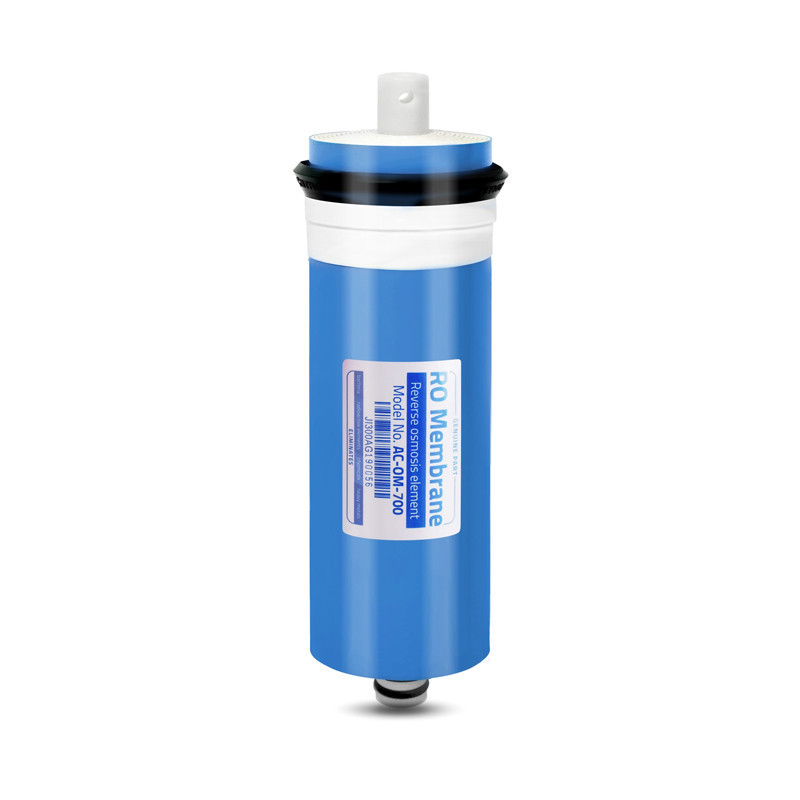

AC-OM-700 Osmotic membrane 700 GPD is a high-performance TFC membrane designed for use in reverse osmosis systems. It is a key component used by the osmotic filter and the entire reverse osmosis system, responsible for very precise separation of contaminants from water molecules. The model with a capacity of up to 700 GPD, or up to 2642 l/24h, is ideal wherever effective water treatment, stable operation, and high filtration precision matter.
Efficient membrane for precise water filtration
The AC-OM-700 osmotic membrane is one of the most important components of the R.O. molecular filtration system. It is responsible for the process of very precise water purification in reverse osmosis technology.
The applied semi-permeable structure acts as an advanced filtration barrier. It retains organic and inorganic contaminants, as well as dissolved solids in water. It also effectively limits the presence of heavy metals, radioactive elements, and toxic and carcinogenic chemical compounds.
As a result, the AC-OM-700 membrane is an important component wherever a reverse osmosis filter is expected to provide a very high standard of water purification. This is a solution valued for its precision and high efficiency, recognized as one of the best and most effective methods of water purification.
TFC membrane design
The AC-OM-700 model has been manufactured using thin film composite technology, also referred to as a TFC membrane. Its structure is based on several thin layers joined together in the form of a spiral wound element.
This design makes it possible to achieve a large active filtration area while maintaining compact cartridge dimensions. In practice, this translates into high efficiency and precise operation in the RO system.
Main benefits
high capacity up to 700 GPD, or up to 2642 l/24h,
very precise water filtration in a reverse osmosis system,
an effective barrier against organic and inorganic contaminants,
reduction of dissolved solids in water,
reduction of heavy metals, radioactive elements, and toxic and carcinogenic chemical compounds,
TFC construction based on several thin layers in a spiral wound element,
long service life of up to 8 years, depending on the level of water contamination.
Application
The AC-OM-700 membrane is intended for R.O. systems where high effectiveness and performance are required. It is a suitable choice as a replacement element in installations where the water filter is to operate based on reverse osmosis technology and provide very precise purification.
Important operating information: the membrane has a chlorine tolerance of 0 ppm, so the water supplied to the membrane should not contain chlorine. To maintain service life and operating effectiveness, appropriate pre-filtration should be used and the cartridge should be operated within the recommended pressure and temperature range.
Technical specifications
Parameter
Value
Model
AC-OM-700
Membrane type
TFC, thin film composite
Height
12"
Diameter
2.8"
Service life
up to 8 years depending on water contamination
Chlorine tolerance
0 ppm
Operating pressure
2.8 - 6 bar
Maximum capacity
700 GPD, up to 2642 l / 24h
Operating temperature
2 - 42 °C
FAQ
What is the AC-OM-700 osmotic membrane used for?
It is a key component of the reverse osmosis system, responsible for very precise water purification. The semi-permeable membrane separates water molecules from many organic and inorganic contaminants.
What is the capacity of this membrane?
The maximum capacity of the AC-OM-700 model is up to 700 GPD, or up to 2642 liters per 24 hours.
What contaminants does the membrane retain?
The membrane acts as a barrier against organic and inorganic contaminants, dissolved solids in water, heavy metals, radioactive elements, and toxic and carcinogenic chemical compounds.
What does it mean that this is a TFC membrane?
TFC stands for thin film composite. The membrane consists of several thin layers joined into a spiral wound element, which makes it possible to achieve high filtration efficiency and a large working area.
How long can the AC-OM-700 membrane operate?
The membrane service life is up to 8 years, depending on the level of water contamination and operating conditions.
Can the membrane operate with water containing chlorine?
No. Chlorine tolerance is 0 ppm, so the membrane should not be fed with water containing chlorine. In practice, proper water pretreatment before the membrane is required.
What operating pressure range does the AC-OM-700 Osmotic membrane 700 GPD work in?
The membrane is designed to operate at a pressure from 2.8 to 6 bar.
At what temperature can the membrane operate?
The recommended operating temperature range is from 2 to 42 °C.
What are the dimensions of the AC-OM-700 membrane?
The membrane height is 12 inches and the diameter is 2.8 inches.
