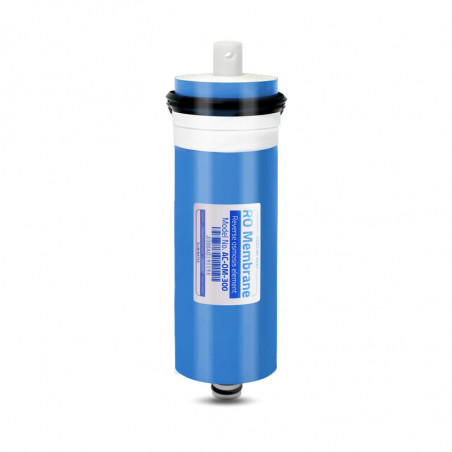

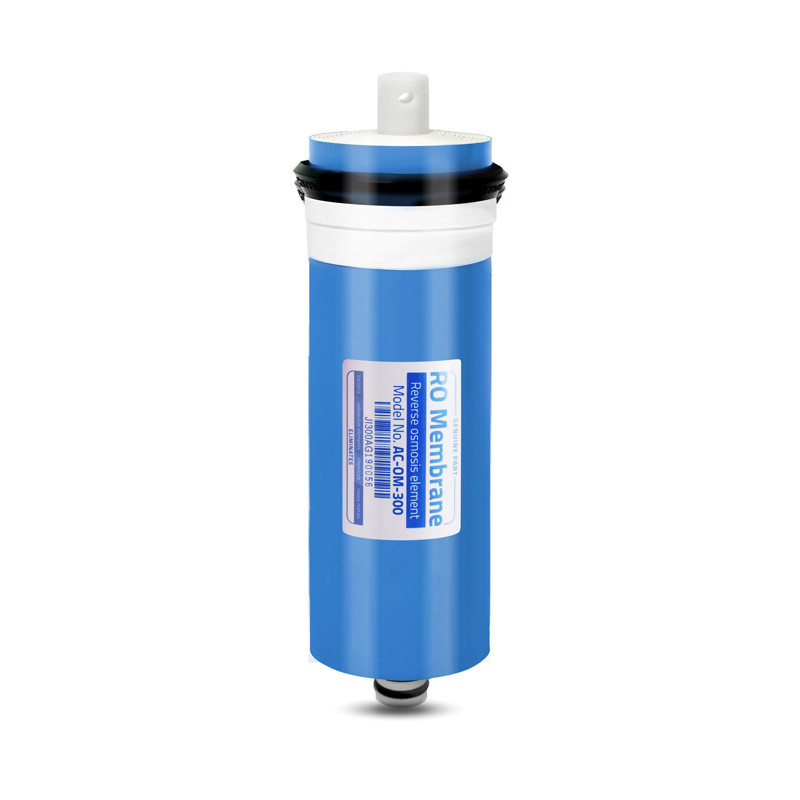

AC-OM-300 is an TFC osmotic membrane with a performance of up to 300 GPD (up to 1134 l/24h). It is a key component of the reverse osmosis system, creating a barrier against organic and inorganic contaminants, dissolved solids, and heavy metals, among others. Designed to operate at a pressure of 2.8-6 bar and a temperature of 2-42°C. Chlorine tolerance: 0 ppm.
AC-OM-300 Osmotic membrane 300 GPD is a high-performance TFC membrane designed for use in systems such as reverse osmosis, RO system, and household and utility osmotic filter. It is a key element of the purification process because it creates a semi-permeable barrier that retains a wide spectrum of contaminants dissolved in water. A capacity of up to 300 GPD, i.e. up to 1134 l/24h, makes it a practical choice for effective water treatment in RO systems.
The AC-OM-300 osmotic membrane has been designed as the most important element of the R.O. molecular filtration system. It is responsible for the proper separation of contaminants from water molecules, which is why it directly affects the efficiency of the entire system.
This model uses a TFC (thin film composite) design. The membrane is made of several thin layers connected in the form of a spiral wound element. This construction ensures very precise filtration and high operating efficiency in systems where stable performance and good daily output matter.
The membrane’s semi-permeable material allows water to pass through while acting as a barrier to many unwanted substances present in raw water. As a result, the membrane plays a key role in the process carried out by a reverse osmosis filter and the entire water filtration system based on RO technology.
AC-OM-300 helps reduce the presence of:
This is a solution used in modern water treatment systems where very precise molecular-level filtration is required.
To ensure that the osmotic membrane maintains high filtration efficiency and as long a service life as possible, it should be operated within the intended working parameters. The quality of the feed water and the correct configuration of the entire reverse osmosis system are of great importance.
Important: the chlorine tolerance for this membrane is 0 ppm. This means that the membrane should not be exposed to chlorine. For proper operation, appropriate pre-filtration stages must be used in the RO system to protect the membrane from damage and premature wear.
The membrane service life can be up to 8 years, but it always depends on the level of water contamination and the operating conditions of the installation. In practice, regular inspection of the water filtration system and timely replacement of pre-filters help maintain high purification efficiency.
AC-OM-300 is an osmotic membrane designed for RO systems where high performance and precise water treatment are required. It works well as an important component of sets using reverse osmosis technology at water draw-off points and in other installations based on this filtration method.
It is an appropriate choice wherever a water filter must effectively reduce the presence of dissolved contaminants and support the operation of the entire purification system.
| Membrane type | TFC (thin film composite) |
|---|---|
| Height | 12" |
| Diameter | 2.8" |
| Maximum capacity | 300 GPD, up to 1134 l/24h |
| Operating pressure | 2.8 - 6 bar |
| Operating temperature | 2 - 42 °C |
| Chlorine tolerance | 0 ppm |
| Service life | up to 8 years depending on water contamination |
It is a key element of a reverse osmosis system. It is responsible for very precise water purification by separating water molecules from many organic and inorganic contaminants as well as dissolved substances.
300 GPD means a maximum capacity of up to 300 gallons per day, which in this model corresponds to up to 1134 liters per 24 hours.
The membrane acts as a barrier to organic and inorganic contaminants, dissolved solids, heavy metals, radioactive elements, and toxic and carcinogenic chemical compounds.
No. Chlorine tolerance is 0 ppm, so the membrane requires effective protection against chlorine through proper pre-filtration in the RO system.
The membrane is adapted for operation at a pressure of 2.8 to 6 bar.
The operating temperature range is from 2 to 42°C.
Its service life can be up to 8 years. The actual operating time depends on the level of water contamination and the operating conditions of the entire filtration system.
The AC-OM-300 model is 12 inches high and 2.8 inches in diameter.
Brand: WODARO
