3-stage mechanical carbon KDF filter

Complete pre-filter for protecting a household water system

This is an advanced filtration set designed to operate at the main inlet of a home water system. Its role is to prepare water for further use throughout the entire installation and to protect fittings, pipes, and downstream treatment devices. By combining mechanical, carbon, and carbon-with-KDF filtration, the system works in multiple stages and addresses several typical problems found both in municipal water and in water from a private well.

The filter is easy to install, aesthetically designed, and ergonomic. It provides accurate mechanical filtration, removing sand, silt, and rust, reduces the concentration of heavy metals present in water such as arsenic, cadmium, lead, mercury, and iron, removes iron compounds and hydrogen sulfide, and also improves the taste and odor qualities of water by reducing chlorine and other organic compounds. Additionally, it helps remove phenol and benzene from water.

The 3-piece housing body ensures maximum tightness and convenient cartridge replacement, which is particularly important during regular operation of a household water treatment system.

How the 3-stage filtration works

The effectiveness of the set is based on three specialist Aquafilter cartridges. Each stage performs a different function, which is why the entire unit creates a coherent and practical system for preliminary filtration of cold utility and drinking water.

Stage I – FCPS20, 20-micron mechanical filtration

The first stage uses a polypropylene nonwoven cartridge with a 20-micron rating. This is a sediment cartridge designed to capture mechanical contaminants present in water.

• very high filtration accuracy
• removes fine fractions of solid contaminants from water, such as silt, sludge, and other particles larger than 20 microns, which may occur both in private well water and municipal water
• serves as protection for expensive carbon, softening, iron-removal cartridges, as well as for the water system itself and fittings
• the cartridge is made of high-quality foam, i.e. polypropylene nonwoven material, formed in a way that ensures water is filtered throughout the entire cartridge structure

This stage is especially important because trapping deposits at the very beginning reduces the risk of faster wear of the downstream filtration media.

Cartridge lifespan: 3–6 months depending on water quality.

Stage II – FCCBHD, coconut shell carbon cartridge

The second stage consists of a cartridge containing high-quality coconut shell carbon. It is intended for treatment of cold drinking water or general utility water. It is equipped with a final filter that prevents media particles from escaping outside the cartridge.

• contains high-quality coconut shell carbon media
• removes up to 99% of free chlorine from water
• removes organic contaminants
• removes phenol and benzene from water
• removes some pesticides
• improves the taste and odor of water
• fits most 10-inch inline housings available on the market
• the final filter prevents media from escaping outside the cartridge

Coconut carbon is valued in household filtration systems for effectively improving the organoleptic properties of water, which is why this stage complements the first sediment stage well.

Cartridge lifespan: 3–6 months depending on water quality.

Stage III – FCCBKDF, carbon cartridge with KDF

The third stage uses a carbon cartridge filled with activated carbon from coconut shells and KDF media. This combination is responsible for further improvement of water quality and expanding the range of reduced contaminants.

Activated coconut shell carbon helps remove chlorine, chlorinated solvents, and aromatic hydrocarbons from water, improving its taste and odor. It also reduces polyaromatic compounds, phenol, benzene, and other organic substances. KDF media prevents the growth of bacterial flora on the filtration media, lowers the concentration of heavy metals present in water such as arsenic, cadmium, lead, mercury, and iron, and also helps remove hydrogen sulfide and pesticides.

• contains activated carbon and KDF media
• removes up to 99% of chlorine from water
• removes organic contaminants
• removes some pesticides
• removes iron compounds and hydrogen sulfide
• removes heavy metals: arsenic, cadmium, lead, and mercury
• removes phenol and benzene from water
• improves the taste and odor of water
• has a final filter that prevents media from escaping outside the cartridge

This stage is especially useful wherever you want not only chlorine reduction and better taste, but also support for bacteriostatic protection of the media and reduction of some heavy metals.

Cartridge lifespan: 3–6 months depending on water quality.

Pressure gauges make operation monitoring easier

The set includes 2 pressure gauges, also referred to as manometers. They allow pressure values to be read, which is a very practical convenience in everyday use. By observing pressure changes, it is easier to determine when cartridge replacement is approaching.

This solution increases ease of use and helps keep the filtration system in optimal working condition.

BACInix™ centering discs – stable installation and antimicrobial protection

The set includes 3 antibacterial centering discs. These components are made using BACInix™ antibacterial technology based on nanosilver, which acts bacteriostatically and helps prevent the growth of microorganisms inside the filtration system. This solution makes it possible to extend operating time and protects the system against microbiological contamination.

• make correct cartridge installation easier
• help prevent the growth of bacterial flora
• reduce the risk of pathogenic microorganism development
• made of high-quality materials
• compatible with most cartridges available on the market
• ensure correct cartridge positioning when tightening the components
• reduce the likelihood of cartridge damage during installation
• BACInix nanosilver-based technology provides antimicrobial protection

Application and practical benefits

The filter works well as a household pre-filter installed at the main water inlet. It can be an important element in protecting the entire water system and end-use devices. It is a good solution wherever you want to reduce deposits, improve taste and odor, and decrease the load on subsequent treatment stages.

In practice, such a system can serve as a preparatory stage before further solutions such as a reverse osmosis system, reverse osmosis unit, or osmotic filter, because it retains mechanical contaminants and supports chlorine reduction even before more advanced point-of-use filtration.

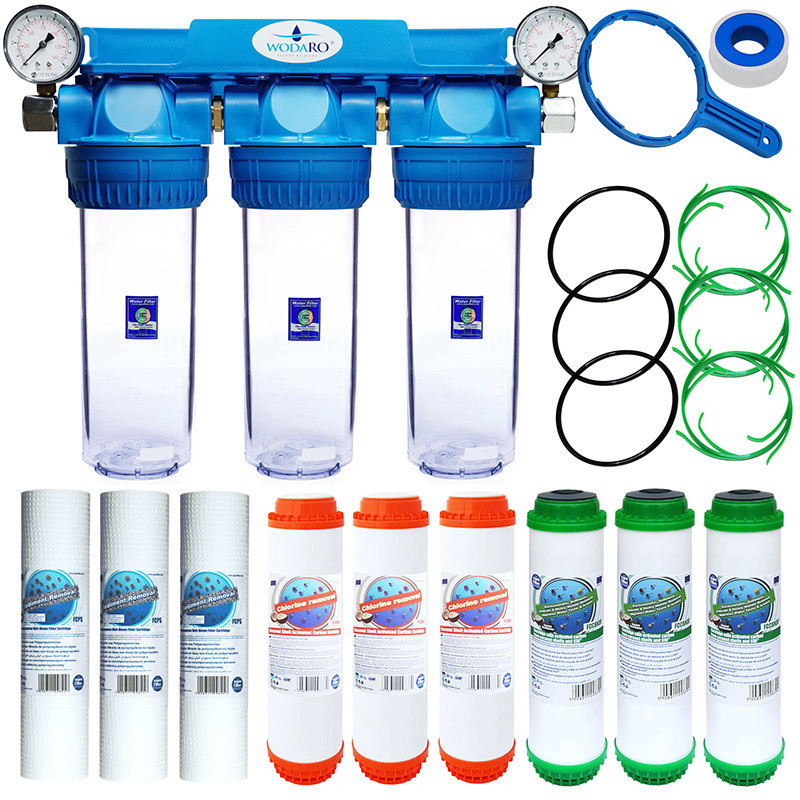

Set contents

• 3 three-piece housings on a plate (frame), easy to unscrew and resistant to pressure surges
• 2 x 3/4" female threaded connectors for installation connection
• 2 x 3/4" brass nipples
• 3 O-rings located inside the head
• 3 centering discs
• 2 pressure gauges
• 3 x FCPS20 cartridge
• 3 x FCCBHD cartridge
• 3 x FCCBKDF cartridge
• 12 x plate mounting screws
• wrench for unscrewing the housings
• Teflon tape

This is a complete set prepared for convenient installation and subsequent operation.
