Parts for inline filter housings and filters

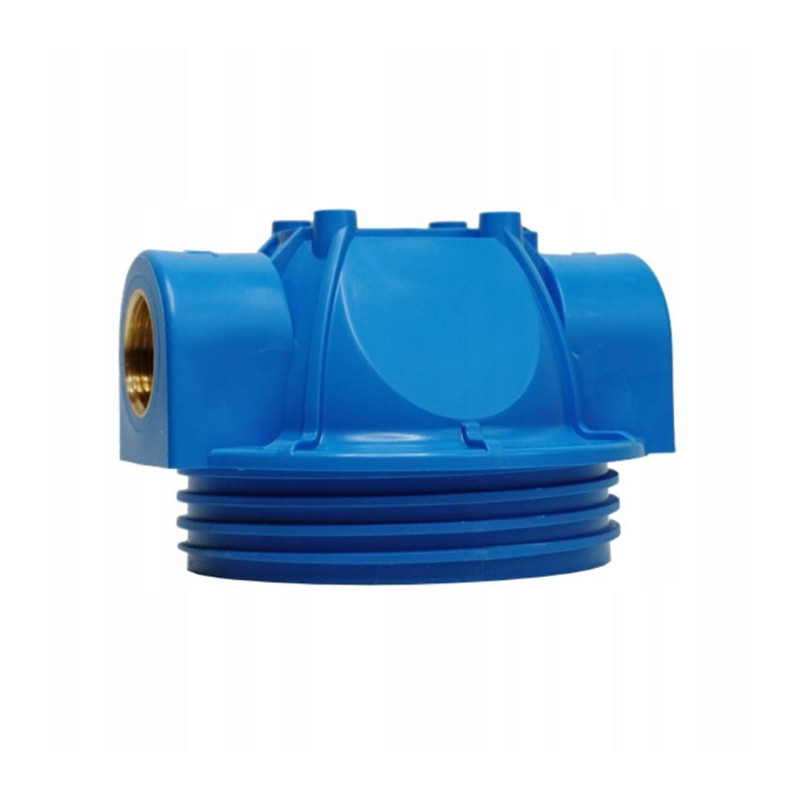

10" Water Filter AQUAFILTER Head for 3-Piece Body with Ring
Rating
Head for a 3-part water filter body with a ring, designed for 10" standard cartridges. Connections 3/4". Suitable for use in water inst Read moreShow less
Head for a 3-part water filter body with a ring, designed for 10" standard cartridges. Connections 3/4". Suitable for use in water installations within the range of 2-45°C and up to 6 bar. There is 1 o-ring under the head. The offer is for the head only.
Specifications
GLOWICA-3CZ
- Accessory type
- Filter head
- Application
- Whole house
- Cartridge length
- 10″
- Connection size
- 3/4″
- Maximum working pressure
- 6 bar
- Maximum working temperature
- 45 °C
View full specifications
- Minimum working temperature
- 2 °C
- Product type
- Accessory / spare part
Description
The 10" AQUAFILTER Water Filter Head for 3-Piece Body with Ring is a component designed for 3-piece filter housings operating with 10" standard cartridges. It works well as part of a water filtration and water treatment system in domestic and utility installations where compatibility of connections, leak-tight sealing, and correct cooperation with the water filter housing are important. The model is equipped with 3/4" connections, is designed to operate within a temperature range of 2–45°C and at a pressure of up to 6 bar. There is 1 O-ring under the head. The offer includes the head only.
10" AQUAFILTER Head for 3-Piece Body
This component has been designed to work with a 3-piece body and 10" standard filter cartridges. It is a practical solution for users servicing or assembling a water filter in an installation requiring 3/4" connections.
The head plays a key role in the proper connection of the housing to the installation. A properly selected component affects the tightness of the system, the correct operation of the set, and the trouble-free use of the entire system with filter cartridges.
Key product features
- head for 3-piece body with ring,
- designed for 10" standard cartridges,
- 3/4" connection diameter,
- maximum operating pressure up to 6 bar,
- operating temperature range 2–45°C,
- 1 O-ring under the head,
- a component suitable for water filtration and treatment applications.
Application
The head is intended for 3-piece bodies working with 10" filter cartridges. It can be used in installations with a single housing or an expanded water filtration system. It is a suitable solution wherever dimensional compatibility and correct connection to the water installation are important.
Thanks to the 10" standard, the product fits popular configurations in which various filter cartridges are used, depending on the needs of a given installation.
Important: the offer applies to the head only, marked as item no. 1. There is 1 O-ring under the head. Before installation, make sure the component is matched to the 3-piece body and the operating parameters of the installation.
Operation and installation fit
The head is designed for use in water installations with a maximum operating pressure of 6 bar and a temperature range from 2 to 45°C. Observing these parameters is important for safe and proper operation of the component.
When selecting parts, pay attention to the 10" cartridge standard, the 3/4" connection diameter, and compatibility with the 3-piece body. This ensures the water filter can operate tightly and stably in everyday use.
Contents of the offer
- 1 x 10" AQUAFILTER head for 3-piece body with ring.
The offer does not include the complete housing or a filter cartridge.
Additional important information
- max. operating temp.: 2-45 degrees Celsius
- number of O-rings under the head: 1
Technical specification
| Parameter | Value |
|---|---|
| Product type | Head for 3-piece body with ring |
| Cartridge standard | 10" |
| Connection diameter | 3/4" |
| Maximum operating pressure | 6 bar |
| Operating temperature range | 2–45°C |
| Offer scope | Head only |
Questions
Which body does this head fit?
The model is intended for a 3-piece body with ring, working with 10" standard cartridges.
What cartridge standard does the head support?
The head is designed for 10" standard filter cartridges.
What is the connection diameter?
The connection diameter is 3/4".
What is the maximum operating pressure?
The maximum operating pressure of this head is 6 bar.
What temperature range can the head operate in?
The product is designed to operate within a temperature range from 2 to 45°C.
How many O-rings are located under the head?
There is 1 O-ring under the head.
Does the offer include the complete filter housing?
No. The offer applies to the head only.
Is this component suitable for a home water filtration system?
Yes, if the installation uses a 3-piece body, 10" filter cartridges, and 3/4" connections, the head can be part of a home water filtration system.
