Big Blue Filters
WodaRO BB-TECH Whole House Water Filter Professional Treatment Station 10"
Rating
WodaRO BB-TECH 10" is a professional, 3-stage water treatment station for home or business, based on Big Blue 10" (4.5") housings. The Read moreShow less
WodaRO BB-TECH 10" is a professional, 3-stage water treatment station for home or business, based on Big Blue 10" (4.5") housings. The stable metal frame allows the unit to be placed on the floor, and the double O-ring reduces the risk of leaks. Built-in pressure gauges (optional) facilitate pressure monitoring and the timing of cartridge replacements. Note: the station is sold without filter cartridges.
Benefits
- View the cartridge through the clear bowl
Specifications
BB-TECH10
In stock
- Stan
- Nowy
- EAN
- 5905031173004
- Kod producenta
- BB-TECH-10
- Marka
- wodaRO
- Model
- BB-TECH-10
- Pojemność
- 0
View full specifications
- Kolor dominujący
- Black
- Application
- Whole house
- Cartridge length
- 10″
- Connection size
- 1″
- Housing standard
- Big Blue 10″
- Maximum flow
- 66.666667 l/min
- Maximum working pressure
- 6 bar
- Maximum working temperature
- 45 °C
- Minimum working temperature
- 2 °C
- Product type
- Pre-filtration system
- Number of filtration stages
- 3 etap
Description
WodaRO BB-TECH Whole House Water Filter Professional Treatment Station 10" is an efficient, 3-stage water filtration system for a home or business, based on 10" Big Blue housings with a 4.5" diameter. The set was designed for effective water treatment, flexible selection of filter cartridges, and stable operation in installations requiring a robust solution. A metal frame, double O-ring, adjustable feet, and the ability to monitor pressure make this a professional water filter for the entire building, prepared for an individual configuration based on a specific filter cartridge and the user's needs.
Note: the station is sold without filter cartridges, so you can choose the appropriate set yourself for the planned water treatment and expected water filtration system.
Professional water treatment station for the whole home or business
WodaRO BB-TECH 10" is a professional filtration unit designed to operate on the main water supply line. Thanks to three filter housings, it allows you to create an effective and tailored filtration setup for the entire building.
This solution works well wherever larger cartridge capacity, convenient operation, and the ability to configure the system for specific water problems matter. This design provides great freedom in selecting filter media and makes it possible to prepare a set that matches the real requirements of the installation.
The station is supplied without filter cartridges. The cartridges must be selected and purchased separately, depending on the desired filtration effect.
Solid construction for demanding installations
Big Blue 10" housings with increased capacity
The Big Blue housings used, with a diameter of 4.5" and a height of 10", allow the installation of high-capacity filter cartridges. This translates into high system efficiency and convenient operation in home and business installations.
Stable metal frame
The metal frame stiffens the entire structure and allows the unit to be placed on the floor without the need for wall mounting. This practical solution makes it easier to position the station in a utility room, boiler room, or another place intended for a water treatment system.
Double leak protection
The design uses a double O-ring, which reduces the risk of leaks and increases safety of use. This is an important element in installations where reliable sealing and stable pressure operation are essential.
Adjustable feet
Screw-in adjustable feet help level the station and ensure stability after it has been placed on the floor.
High build quality and reliability
The station is made of high-quality materials resistant to pressure surges. This construction supports long service life and safe, stable operation of the entire filtration system.
This solution is intended for users who expect durability, expandability, and operation based on components used in professional water treatment installations.
3-stage filtration system tailored to your needs
WodaRO BB-TECH is a 3-stage filtration station. Three housings allow for the use of three different cartridges, making it possible to build a comprehensive system for protecting the installation and improving water quality.
Each cartridge can serve a different function, and the entire filtration process can be tailored to the expected results. This design makes the station a base for a specialized water treatment system in a home or business.
This solution is not a reverse osmosis filter set or a reverse osmosis system for drinking water under the sink. It is a central filtration system installed at the point where the installation enters the building, which prepares water for the whole building and can work with other solutions, such as local reverse osmosis or an osmosis filter at the point of water draw-off.
The filtration effectiveness depends on the correct selection of cartridges for water quality and the treatment purpose. Three housings allow you to build a system tailored to the user's individual needs.
Pressure control with gauges
The station can be equipped with 2 pressure gauges, which make it easier to read the pressure in the installation. This is practical support in everyday use, as it allows you to observe the operating conditions of the system and assess the time for cartridge replacement more quickly.
Pressure control also helps monitor filtration efficiency and detect performance drops resulting from the natural wear of the cartridges.

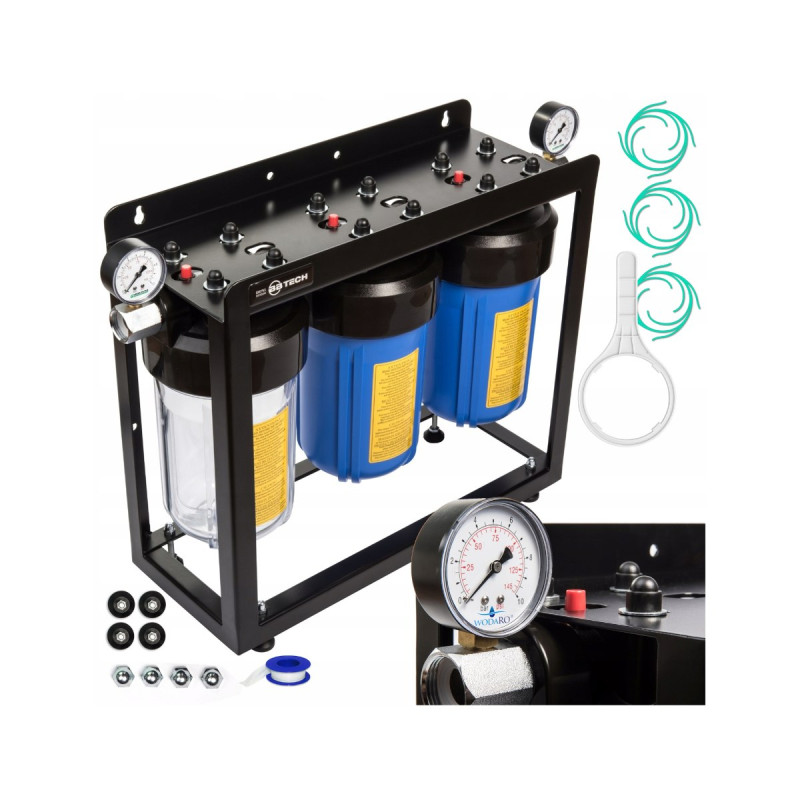

Set contents
- 1 x transparent housing (10" high) – allows you to check the condition of the filter cartridge.
- 2 x blue housings (10" high) – space for filter cartridges.
- Metal frame – stabilizes the entire structure.
- 2 x pressure gauge (optional) – for monitoring system pressure.
- Housing wrench – makes cartridge installation and removal easier.
- 3 x centering discs – stabilize the position of the cartridges in the housings.
- Teflon tape (6.0 m x 12 mm x 0.1 mm) – for leak-tight connections.
- 4 x screw-in feet – for mounting the station on the floor.
Operation and practical usage tips
The station operates on installation pressure and does not require external power. This means it can be integrated into the water system as a central water filter for a home or business.
The transparent housing makes it easy to visually inspect the condition of one of the cartridges, and the housing wrench speeds up maintenance work. The centering discs help properly stabilize the cartridges, and the included Teflon tape supports the creation of tight connections.
The unit should be operated within a working temperature range of 2°C to 45°C and at a maximum operating pressure of 6 bar. Before starting up, it is worth leveling the station properly on the adjustable feet and ensuring that all connections are leak-tight.
Technical specifications
| Housing height | 10" (25.4 cm) |
|---|---|
| Housing diameter | 4.5" (11.4 cm) |
| Connection | 1" (standard) |
| Operating temperature | 2°C – 45°C |
| Maximum operating pressure | 6 bar |
| Power supply | Installation pressure (no external power supply required) |
| Flow rate | Up to 4 m³/h at standard pressure |
| Pressure gauges | 2 x pressure gauge (optional) |
| Unit dimensions (H x W x D) | 48 x 55 x 22 cm |
| Gross weight | 10" version: <14 kg |
| Filter housings | 1 x transparent housing, 2 x blue housings |
| Accessories included | Metal frame, housing wrench, 3 x centering discs, Teflon tape (6.0 m x 12 mm x 0.1 mm), 4 x screw-in feet |
| Safety and certifications | Certified materials, tested by PZH |
| Filter cartridges | Not included |
| 10" version | <14 kg |
FAQ
Is the WodaRO BB-TECH station sold with filter cartridges?
What are the three filter housings for?
Does this station have to be wall-mounted?
Which cartridges fit this station?
Are pressure gauges included?
What are the unit dimensions?
What operating conditions are recommended for this station?
Does the transparent housing have a practical purpose?
Is this a reverse osmosis system?
No. The set is sold without filter cartridges. This allows you to choose the appropriate cartridges yourself based on water quality and intended use.
The three housings allow you to create a 3-stage water filtration system. Each cartridge can handle a different stage of treatment, making it easier to build a comprehensive setup tailored to the needs of a home or business.
There is no such need. The metal frame allows the station to be placed on the floor, and the adjustable feet help ensure stability after the unit is positioned.
The station is based on 10" Big Blue housings with a diameter of 4.5", so filter cartridges compliant with this size standard should be used.
The station предусматривает 2 pressure gauges as an optional element. They are used to monitor system pressure and help track operating conditions and the time for cartridge replacement.
The station dimensions are 48 x 55 x 22 cm (height x width x depth).
The unit operates within a temperature range of 2°C to 45°C, at a maximum operating pressure of 6 bar. Power comes from installation pressure, without the need for an external power source.
Yes. The transparent housing allows you to see the condition of the filter cartridge, making it easier to monitor wear and plan maintenance.
No. It is a central filtration station for a whole home or business, installed on the water system. It is not a typical under-sink reverse osmosis filter, but it can complement an installation in which a reverse osmosis drinking water system also operates.
Choose a set or individual cartridges. Replacement intervals depend on the cartridge and operating conditions.
