AQUAFILTER 10'' FCPP100 Water Filter Mechanical String Cartridge 100 Micron

Rating

4 people bought this

AQUAFILTER FCPP100 string mechanical cartridge for standard 10" housings. It filters solid impurities up to 100 microns, such as sand, Read moreShow less

AQUAFILTER FCPP100 string mechanical cartridge for standard 10" housings. It filters solid impurities up to 100 microns, such as sand, silt, and rust, improving water clarity and protecting the installation and devices. It works well as a pre-filter before subsequent stages of treatment. Dimensions: 10" x 2.5". Operating temperature: 2-45°C, up to 6 bar.

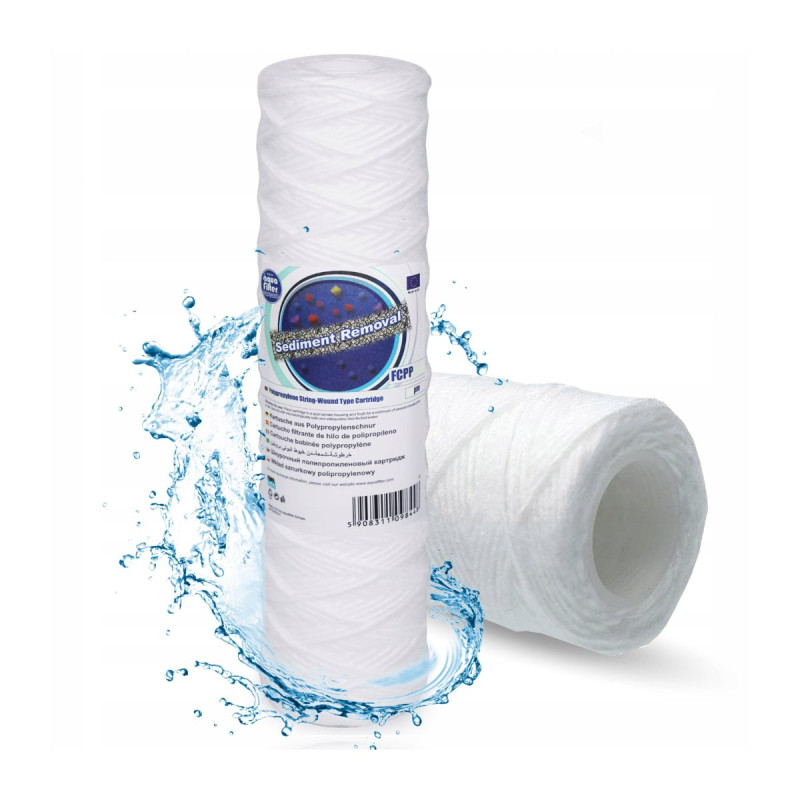

AQUAFILTER FCPP100 10" Sediment String Filter Cartridge Zoom

Benefits

Specifications

FCPP100
In stock
Stan
Nowy
Stan opakowania
oryginalne
EAN
5908311098349
Kod producenta
FCPP100
Marka
Aquafilter
Model
FCPP100
View full specifications
Liczba wkładów
1
Kolor dominujący
biały
Przeznaczenie
Filtr wody|Filtr narurowy|Filtr na cały dom|Odwrócona osmoza
Cartridge diameter
2,5″
Cartridge length
10″
Cartridge type
RO mechanical, Sediment, String wound sediment
Filtration rating
100 µm
Maximum working pressure
6 bar
Maximum working temperature
45 °C
Filter media
Polypropylene
Minimum working temperature
2 °C
Product type
Filter cartridge
Reusable
No

Description

The FCPP100 AQUAFILTER 10'' Water Filter is a mechanical string filter cartridge designed for standard 10" housings. It effectively traps solid contaminants down to 100 microns, such as sand, silt, and rust, improving water clarity and protecting the installation, fittings, and appliances. It is a practical water filter used as a pre-filter stage in water filtration systems, also before solutions such as a osmotic filter, reverse osmosis system, or other water treatment systems.

AQUAFILTER FCPP100 Cartridge – mechanical sediment filtration

AQUAFILTER FCPP100 is a string mechanical cartridge designed to capture solid contaminants present in water. Its task is to retain particles up to 100 microns in size, which helps prevent sediments from entering downstream installation components.

This type of cartridge works very well where pre-filtration of water is required before subsequent treatment stages. As a result, the next filter cartridges can operate more efficiently and for longer.

Cartridge function

  • Retaining mechanical contaminants up to 100 microns in size, protecting installations and devices from damage.
  • Cleaning water of fine particles, improving its clarity and quality.
  • Pre-filtration before other filter cartridges, extending their service life.

Key advantages

  • Efficient filtration: the cartridge retains larger contaminants such as sand, silt, and rust, clearly reducing the amount of sediment in the water.
  • Protection of installations and appliances: helps protect water systems and household appliances from the negative impact of large solid particles.
  • Improved water quality: acts as a pre-filter, improving water clarity and preparing it for further filtration.
  • Easy installation: fits standard 10" housings, making installation and regular cartridge replacement easy.
  • Long-lasting efficiency: the string design of the cartridge supports effective operation over a longer period.

Use in a water filtration system

The FCPP100 cartridge can be used as the first stage of water purification in a house, apartment, draw-off point, or utility installation. It is a good choice wherever there are visible or microscopic mechanical particles in the water.

As a pre-filter, it supports the operation of subsequent elements of the water filtration system. It can precede more precise cartridges as well as water treatment installations, including a reverse osmosis filter or a complete reverse osmosis system, where reducing mechanical sediments is important for the service life of later components.

The cartridge should be selected for standard 10" housings. Regular replacement is important to maintain filtration efficiency. The recommended service life is up to 3–6 months, depending on the level of water contamination and intensity of use.

Operation and cartridge replacement

To maintain high performance, the cartridge should be replaced regularly. Replacement frequency depends primarily on the quality of the feed water and the amount of sediment retained.

  • Typical service life is up to 3–6 months.
  • With higher levels of mechanical contamination, replacement may be needed sooner.
  • Regular replacement helps maintain proper water flow and effective protection of the installation.
  • The cartridge serves as a pre-cleaning stage, so its condition also affects the performance of subsequent filtration stages.

Technical specifications

Cartridge type Mechanical, string
Size 10"
Dimensions 10" x 2.5" (25 cm x 6.5 cm)
Filtration precision 100 micron
Operating temperature 2–45°C
Maximum operating pressure 6 bar
Service life Up to 3–6 months, depending on the level of water contamination
Compatibility Standard 10" housings

FAQ

What is the AQUAFILTER FCPP100 cartridge used for?

It is a mechanical string cartridge for pre-filtration of water. Its task is to retain solid contaminants, such as sand, silt, and rust, up to 100 microns in size.

What contaminants does this filter cartridge remove?

The cartridge primarily removes mechanical contaminants present in water, including sand, silt, rust, and other larger solid particles that can reduce water clarity and burden the installation.

Does the cartridge fit every housing?

The FCPP100 model is designed for standard 10" housings. Before purchase, make sure the filter housing has a compatible size.

Is the FCPP100 AQUAFILTER 10'' Mechanical String Water Filter Cartridge 100 Micron suitable as a pre-filter stage?

Yes, it is a typical pre-filtration cartridge. It prepares water for further purification stages and helps protect the subsequent elements of the water filtration system.

Can it be used before a reverse osmosis system?

Yes, a mechanical cartridge of this type can operate before systems such as a reverse osmosis filter, osmotic filter, or reverse osmosis system, because it reduces the amount of sediments reaching later filtration stages.

How often does the cartridge need to be replaced?

The recommended service life is up to 3–6 months. The actual replacement frequency depends on the level of water contamination and the intensity of use.

What are the dimensions of the FCPP100 cartridge?

The cartridge measures 10" x 2.5", which corresponds to approximately 25 cm x 6.5 cm.

What operating conditions are provided for this cartridge?

The cartridge is designed to operate at temperatures from 2 to 45°C with a maximum working pressure of up to 6 bar.

Why use a string cartridge?

A string cartridge effectively captures mechanical contaminants, improves water clarity, and helps protect the installation and appliances from sediment, which can positively affect the durability of the entire system.
