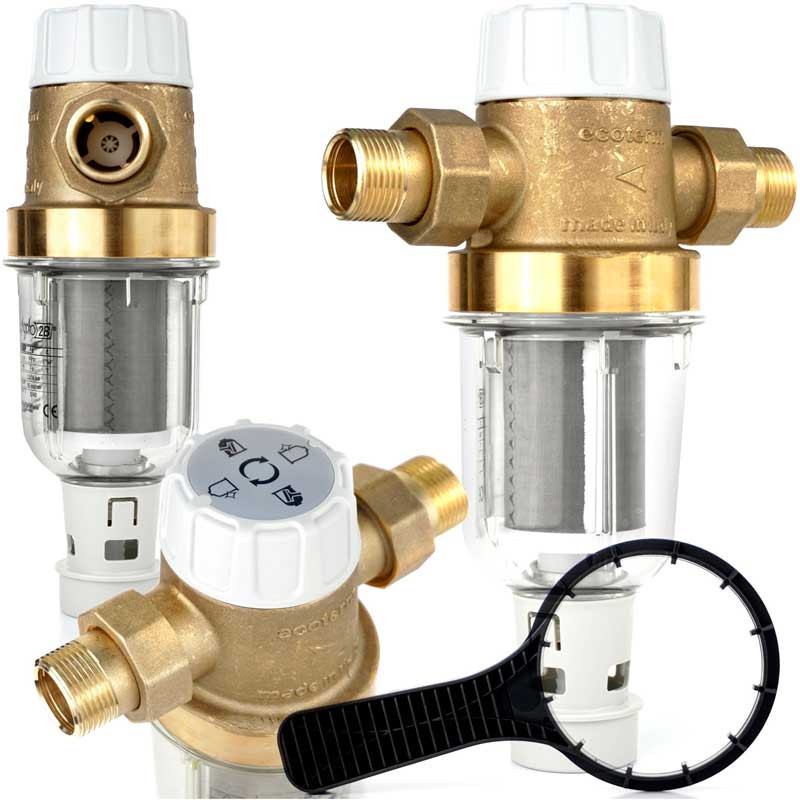

Water Filter 5/4" with OTTOCLEAN OTTONE Flushing
The OTTOclean 5/4" water filter is designed for effective removal of impurities from water. It features a semi-automatic flushing syste Read moreShow less
The OTTOclean 5/4" water filter is designed for effective removal of impurities from water. It features a semi-automatic flushing system, making it ideal for both domestic and industrial use.
Specifications
- Application
- Industrial
- Connection size
- 1 1/4″
- Filtration rating
- 90 µm
- Maximum flow
- 233.333333 l/min
- Maximum working pressure
- 16 bar
- Maximum working temperature
- 30 °C
View full specifications
- Minimum working pressure
- 1.5 bar
- Model
- OTTOCLEAN
- Product type
- Self-cleaning filter
Description
The 5/4" water filter with OTTOCLEAN OTTONE flushing is an efficient component of a water filtration system, designed for effective removal of mechanical impurities in domestic and industrial installations. The semi-automatic flushing model makes routine maintenance easier, supports efficient water treatment, and helps protect fittings, equipment, and subsequent filtration stages, including the more precise filter cartridge used in expanded systems.

OTTOCLEAN 5/4" mechanical filter for water installations
The OTTOCLEAN filter with a 5/4" diameter has been designed for effective removal of impurities from water. This solution combines high build quality, high performance, and convenient operation, so it works well in both domestic and industrial applications.
The most important advantage of this model is the semi-automatic flushing system, which significantly simplifies use and reduces the time needed to clean the filter element. As a result, the water filter can operate efficiently for a long time, while routine maintenance remains quick and convenient.
Main features and benefits
Versatile application
The filter operates at temperatures up to 30°C and withstands pressure up to 16 bar, allowing it to be used in a wide range of installations. This makes it suitable wherever a durable and effective water filtration system based on the separation of mechanical impurities is needed.
Efficiency and performance
A filtration accuracy of 90 µm allows for effective capture of mechanical impurities present in water. The filter requires a minimum pressure of 1.5 bar for efficient flushing, and the large filtration area and high flow rates translate into very good performance in everyday use.
The semi-automatic flushing function, carried out using brushes and a knob, makes it easy to keep the unit clean without complicated servicing.
Durability and reliability
The filter cartridge is made of materials valued for resistance and long service life: INOX stainless steel and polyamide. This construction supports reliable filter operation and allows for long-term use even in demanding conditions.
The solid construction of the entire body and accessories increases resistance to intensive use and helps maintain stable operating parameters.
Practical functionality
The filter is equipped with a nickel-plated brass drain valve and a check valve included in the set. This solution increases ease of use, supports reliable operation, and makes flushing and routine maintenance easier.
High filtration efficiency
The use of a stainless steel mesh filter cartridge translates into effective water purification from solid particles. It is a good choice as a pre-filter protecting further installation components and utility equipment.
Easy maintenance
The semi-automatic flushing system makes cleaning the filter simple and quick. This reduces the time needed for maintenance while also making it easier to keep the unit operating efficiently.
Operation and use in the installation
The OTTOCLEAN 5/4" model works well as a mechanical filter for protecting the water installation against impurities. It can serve as an important pre-stage where effective water treatment and protection of fittings, valves, equipment, and subsequent filtration components matter.
In practice, the filter can be used before more advanced water treatment solutions such as an osmosis filter, reverse osmosis filter, reverse osmosis system, or reverse osmosis, because it limits the flow of larger mechanical particles into later treatment stages.
For proper flushing, a minimum pressure of 1.5 bar is required. The unit operates at a maximum temperature of 30°C and a maximum pressure of 16 bar. The sewage connection size is 5/4".
Why choose the OTTOCLEAN 5/4" filter
- Effectively removes mechanical impurities from water.
- Suitable for domestic and industrial installations.
- Offers 90 µm filtration accuracy.
- Provides convenient maintenance thanks to semi-automatic flushing.
- Uses a durable filter cartridge made of INOX and polyamide.
- Has a nickel-plated brass drain valve.
- Includes a check valve in the set.
- Achieves high performance thanks to a large filtration area and high flow rates.
5/4" water filter OTTOclean with semi-automatic flushing
The OTTOclean filter with a 5/4" diameter is a high-quality product designed for effective removal of impurities from water. Thanks to the semi-automatic flushing system, it is easy to use, which makes it ideal for both domestic and industrial use.
Product features
Versatility
The OTTOclean filter operates at temperatures up to 30°C and withstands pressure up to 16 bar, enabling a wide range of applications.
Efficiency and Performance
The filter requires a minimum pressure of 1.5 bar for efficient flushing, and the 90 µm filter mesh ensures precise filtration of impurities. The large filtration area and high flow rates make the filter extremely efficient. The semi-automatic flushing function using brushes and a knob makes maintenance easier.
Durability and Reliability
The filter cartridge made of durable materials such as stainless steel (INOX) and polyamide ensures a long service life for the filter. The solid construction made of durable materials guarantees long-term use even in difficult conditions.
Functionality
The filter is equipped with a nickel-plated brass drain valve and a check valve, which increases its functionality and reliability.
High filtration efficiency
Thanks to the stainless steel mesh filter cartridge, the OTTOclean filter provides excellent water quality.
Easy maintenance
The semi-automatic flushing system makes cleaning the filter simple and quick, minimizing the time needed for maintenance.
Technical parameters
Maximum operating temperature 30°C
Maximum operating pressure 16 bar
Minimum pressure required for flushing 1.5 bar
Filtration accuracy 90 µm
Flow rate 6 m³/h (1") 7 m³/h (5/4") 12 m³/h (6/4") 14 m³/h (2")
Filter cartridge INOX, polyamide
Drain valve Nickel-plated brass
Check valve Included
Semi-automatic flushing function using brushes and a knob
Sewage connection 5/4"

Technical specification
| Product type | Water filter with semi-automatic flushing |
|---|---|
| Model | OTTOCLEAN |
| Diameter / size | 5/4" |
| Maximum operating temperature | 30°C |
| Maximum operating pressure | 16 bar |
| Minimum pressure required for flushing | 1.5 bar |
| Filtration accuracy | 90 µm |
| Flow rate for 1" connection | 6 m³/h |
| Flow rate for 5/4" connection | 7 m³/h |
| Flow rate for 6/4" connection | 12 m³/h |
| Flow rate for 2" connection | 14 m³/h |
| Filter cartridge | INOX, polyamide |
| Filter mesh material | Stainless steel |
| Drain valve | Nickel-plated brass |
| Check valve | Included |
| Flushing function | Semi-automatic flushing using brushes and a knob |
| Sewage connection | 5/4" |
| Application | Domestic and industrial |
FAQ
What is the OTTOCLEAN 5/4" water filter used for?
It is a mechanical filter designed to remove impurities from water. It helps protect the installation, fittings, and equipment from solid particles present in water.
Is the 5/4" Water Filter with OTTOCLEAN OTTONE Flushing suitable for home and industrial use?
Yes. The OTTOCLEAN 5/4" filter has been described as suitable for both domestic and industrial use.
How does semi-automatic flushing work?
The flushing function is operated using brushes and a knob. This solution makes cleaning the filter easier and shortens the time needed for routine maintenance.
What filtration accuracy does the 5/4" Water Filter with OTTOCLEAN OTTONE Flushing offer?
The filtration accuracy is 90 µm. This mesh effectively retains mechanical impurities, supporting the protection of the water installation.
What pressure is needed to flush the filter?
The minimum pressure required for efficient flushing is 1.5 bar.
What are the maximum operating parameters of the filter?
The filter can operate at a maximum temperature of 30°C and a maximum pressure of 16 bar.
What materials is the filter cartridge made of?
The filter cartridge is made of INOX and polyamide. The filter mesh is made of stainless steel, which supports durability and effective operation.
Does the filter have a check valve and a drain valve?
Yes. The filter is equipped with a nickel-plated brass drain valve, and a check valve is included in the set.
What is the sewage connection size?
The sewage connection size is 5/4".
Can this filter work with further water treatment stages?
Yes. As a mechanical filter, it can serve as a first-stage safeguard for the installation and subsequent treatment components, helping reduce the flow of larger impurities to more precise filtration systems.
