Connection kits for refrigerators and ice makers

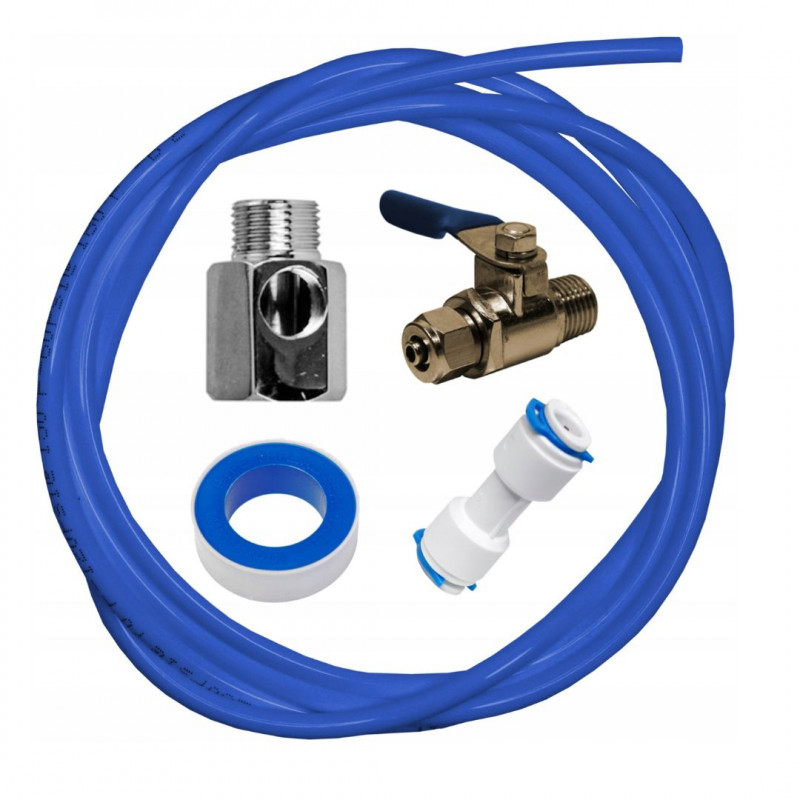

WATER CONNECTION KIT FOR REFRIGERATOR 3/8'' INCH
Rating
Complete water connection kit for refrigerators, ice makers, or dispensers. The set includes a 3/8" (approx. 16 mm thread) tee, a 1/4" Read moreShow less
Complete water connection kit for refrigerators, ice makers, or dispensers. The set includes a 3/8" (approx. 16 mm thread) tee, a 1/4" valve, 10 m of tubing, a quick connector for refrigerator connection, and Teflon tape for sealing threads. Designed for devices with a connection to the water supply system.
Specifications
AK-PRZYŁĄCZE-LOD-38G
1000 Items
- Accessory type
- Water connection
- Application
- Refrigerator / ice maker
- Connection size
- 1/4″
- Maximum working temperature
- 42 °C
- Minimum working temperature
- 2 °C
- Product type
- Water connection
View full specifications
- Thread gender
- Male + female
- Thread size
- 1/4″, 3/8″
- Tube outer diameter
- 1/4″
Description
The 3/8'' refrigerator water connection kit is a complete installation set for connecting a refrigerator, ice maker, or water dispenser to a water supply system. The set includes the elements needed to create a leak-tight connection: a 3/8'' tee, a 1/4'' valve, 10 m of tubing, a quick connector, and PTFE tape. It is a practical solution for devices requiring a constant water supply, including where a water filter, water filtration system, or water treatment system is used.
Complete set for connecting a refrigerator, ice maker, and dispenser
This kit was prepared with convenient connection of devices equipped with a connection to the water supply system in mind. It works well with refrigerators with an ice maker, refrigerators with a water dispenser, and other devices requiring a stable water supply.
The kit fits any refrigerator equipped with a water supply connection. The tee size is 3/8", which corresponds to a thread diameter of approximately 16 mm.
What is included in the set
The set contains all the basic components needed to connect water to a refrigerator or a similar device:
3/8" female x 3/8" male x 1/4" female tee
1/4" female x 1/4" QC connection valve
10 m water supply tubing
Quick connector for connecting the hose to the refrigerator or joining the existing refrigerator hose with the hose from the set
PTFE tape for sealing threaded connections
Main benefits in everyday use
A complete set reduces the need to select parts separately.
The 10-meter hose makes it easier to route water even when the supply point is farther from the refrigerator.
The quick connector allows you to efficiently connect the line to the appliance or extend an existing connection.
PTFE tape helps seal threaded connections.
The set is suitable for systems supplying refrigerators, ice makers, and water dispensers.
Application
The kit is intended for devices with a connection to the water supply system. It can be used wherever a constant supply of tap water is needed, for example for a refrigerator with an ice maker or dispenser. It also works in installations where the water supply to the device is routed through an additional water filter, reverse osmosis system, osmosis filter, or other water filtration system, provided that the connection diameters match the installation used.
Before installation, make sure that the diameters and types of connections are compatible with the installation and the device. After making the connections, carefully seal the threads with PTFE tape and check the tightness of the entire system before starting normal operation.
Installation and operation
The kit has been assembled to make it easier to connect water to a refrigerator. The tee allows you to split the water supply, the connection valve helps control the flow, and the hose delivers water to the device. The quick connector allows the line to be connected to the refrigerator or the existing hose to be joined to a new section.
In everyday use, it is worth periodically checking the tightness of the connections and the condition of the water supply line. This is especially important in systems operating continuously, including when the refrigerator works with water treatment solutions such as a reverse osmosis filter or reverse osmosis.
Technical specifications
| Tee type | 3/8" = approx. 16 mm thread |
|---|---|
| Tee | 3/8" female x 3/8" male x 1/4" female |
| Connection valve | 1/4" female x 1/4" QC |
| Hose length | 10 m |
| Operating temperature | 2-42 °C |
| Intended use | Water connection for refrigerator, ice maker, or dispenser |
Questions
Which devices is this kit suitable for?
The kit is intended for refrigerators, ice makers, and dispensers equipped with a connection to the water supply system.
What tee is included in the set?
The set includes a 3/8" female x 3/8" male x 1/4" female tee. The tee size is 3/8", which is about a 16 mm thread.
What is the length of the water supply hose?
The kit includes 10 meters of water supply hose, which provides considerable flexibility when planning the connection route.
What is the quick connector used for?
The quick connector is used to connect the hose to the refrigerator or to join the existing refrigerator hose with the hose included in the kit.
Does the set include a component for sealing threads?
Yes, the set includes PTFE tape designed to seal threaded connections.
What is the operating temperature of the kit?
The operating temperature ranges from 2 to 42 °C.
Can the kit be used in an installation with an additional water filter?
Yes, the kit can also be used in installations where water is routed through an additional water filter or water filtration system, if the connections used are compatible.
Is the kit suitable for a refrigerator with an ice maker and water dispenser?
Yes, it is a solution designed specifically for devices requiring a constant water supply, such as refrigerators with an ice maker or dispenser.
