TRM1 HM Digital TDS meter three probes triple

Triple TDS measurement in one housing

The device is used to measure the total amount of all substances dissolved in water. Thanks to three probes, you can monitor water quality at several points at once, which significantly makes it easier to assess the operation of the filtration system and to continuously monitor the effectiveness of treatment.

The reading is carried out in the range 0-9990, and for results greater than 999 ppm the [x10] symbol appears on the display. The device display range is 1-9990 ppm (mg/dm3), which makes the meter suitable both for water after filtration and for monitoring raw water or intermediate stages of the circuit.

Key features and benefits

• triple TDS measurement at three points in the installation thanks to three electrode probes,
• line1/line2/line3 switch for convenient selection of the active measurement point,
• automatic shut-off after 10 minutes of inactivity to save battery power,
• electrodes placed in tees with John Guest quick connectors, allowing water hoses to be connected instantly without additional sealing,
• quick installation and removal using two self-adhesive hook-and-loop strips,
• the ability to use the TRM1 as a standard portable meter after disconnecting the tees,
• factory calibration and the option of manual calibration with a mini screwdriver.

Convenient installation in the filtration system

The TRM1 HM Digital was designed for quick and trouble-free installation. The electrodes are located in tees with John Guest quick connectors, which allows water hoses to be connected efficiently without using additional seals. This solution is especially convenient where a reverse osmosis filter, reverse osmosis system, or another water filter requiring parameter monitoring at several points is in use.

The meter itself is mounted on two self-adhesive hook-and-loop strips. This solution simplifies both the initial installation and later removal, for example during servicing, cleaning, or when changing the system configuration.

Reading accuracy and everyday use

The meter offers a measurement tolerance of +/- 2% and operates with a resolution of 1 ppm for the range from 0 to 999 and 10 ppm for the range from 1000 to 9990. This characteristic makes it easier to interpret results quickly and conveniently monitor changes in water quality over time.

The device is ready to use right out of the box because it has been factory calibrated. Manual calibration using a mini screwdriver is also available if needed. The average battery life is 1000 hours of operation, and the auto-off function after 10 minutes of inactivity further reduces power consumption.

Application

The triple TDS meter works wherever quick water quality control at several sections of the installation is important. It is a particularly useful solution for users of treatment systems, domestic filtration systems, and setups based on reverse osmosis.

• water control before and after filtration,
• monitoring the operation of the water filtration system,
• evaluating the efficiency of cartridges and membranes in osmosis installations,
• checking parameters in several lines at once,
• stationary or portable measurement, depending on your needs.

Dimensions

• 7.6 cm
• 2 cm
• 4.7 cm

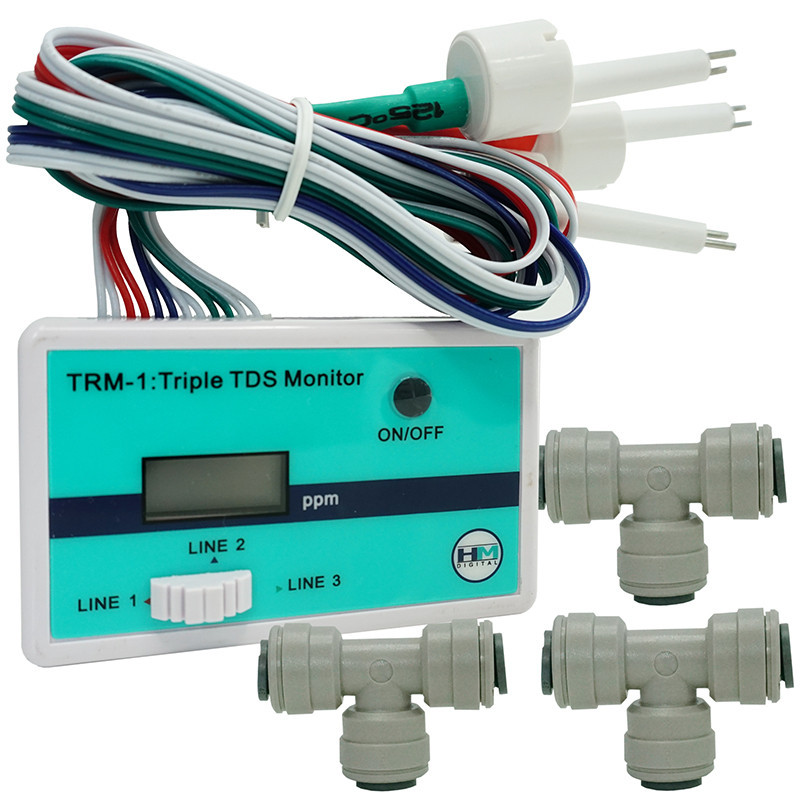

Kit contents

• TRM1 triple TDS Meter with line1/line2/line3 switch,
• two installed 1.5V LR44 batteries,
• three electrodes on 62 cm cables,
• three tees with Murdock quick connectors,
• instruction manual,
• foil packaging.

Additional important information

• 7.6 CM
• 2 CM
• 4.7 CM
