100 gpd is equivalent to 378 liters.

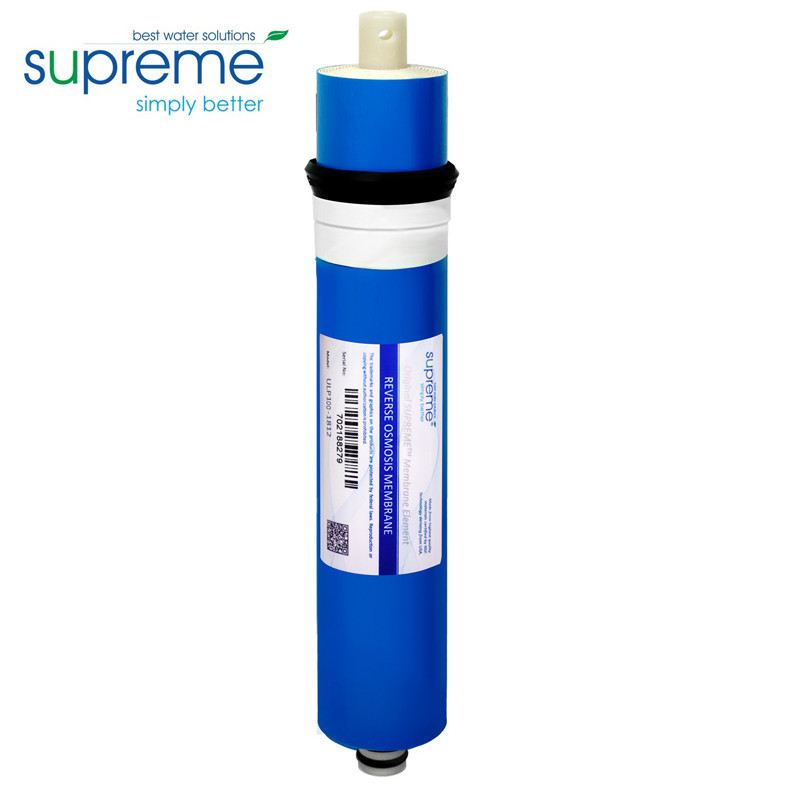

Supreme 100 GPD osmotic membrane
Rating
Supreme 100 GPD is a membrane for reverse osmosis systems for drinking water and aquarium applications. In standard size, it fits most Read moreShow less
Supreme 100 GPD is a membrane for reverse osmosis systems for drinking water and aquarium applications. In standard size, it fits most RO membrane housings. It removes up to 99.9% of dissolved organic and inorganic contaminants, heavy metals, and selected bacteria and viruses (not smaller than 0.001 microns). The product has an individual serial number.
Benefits
Specifications
ULP100
9977 Items
- Compatibility
- Universal RO systems
- Height
- 304.8 mm
- Service life
- 72 months
- Maximum working pressure
- 6 bar
- Maximum working temperature
- 42 °C
- Membrane capacity
- 100 GPD
View full specifications
- Membrane size
- 1812
- Minimum working pressure
- 2.8 bar
- Minimum working temperature
- 2 °C
- Model
- ULP100 Max
- Product type
- RO membrane
Description
Supreme 100 GPD osmotic membrane is an original RO cartridge designed for drinking water treatment systems and aquarium applications. This osmotic membrane is compatible with most standard housings used in reverse osmosis systems, making it suitable as a replacement in many popular configurations. It effectively supports the reverse osmosis system by retaining up to 99.9% of dissolved organic and inorganic contaminants, heavy metals, and selected bacteria and viruses no smaller than 0.001 micron. Each unit has an individual serial number, which confirms the product's originality.
Original RO membrane for drinking water and aquariums
The Supreme 100 GPD model has been designed for use in reverse osmosis systems used both as a water filter for home use and in aquarium installations. The standard size makes it easy to fit into almost all typical RO membrane housings, so the product is a practical choice when servicing or upgrading an existing water filtration system.
In everyday use, the membrane is responsible for the key purification stage. It is this component that determines the very high efficiency of separation of dissolved compounds present in water, which is why it is one of the most important elements of the entire filtration system.
How does the Supreme 100 GPD membrane work?
During filtration, the osmotic membrane retains up to 99.9% of dissolved organic and inorganic contaminants, heavy metals, and some bacteria and viruses not smaller than 0.001 micron.
During operation, contaminants are separated from the water stream and discharged to the sewage system. The purified water passes through microscopic openings to the central spindle and then, under pressure, flows out of the membrane. This allows the reverse osmosis filter to deliver water with a very high level of purification for further use at home or in an aquarium.
Key benefits
- designed for RO systems for drinking water and aquarium applications,
- standard dimensions compatible with most membrane housings,
- capacity of 100 GPD, or up to 380 liters per 24 hours,
- filtration efficiency of up to 99.9% for selected contaminants,
- retention of dissolved organic and inorganic contaminants,
- reduction of heavy metals,
- limitation of some bacteria and viruses no smaller than 0.001 micron,
- individual serial number confirming the originality of the product.
Operation and important notes
The membrane should not be used for microbiologically contaminated water or water of unknown origin.
The membrane service life is up to 6 years, however the actual operating period depends on the quality of the feed water and the operating conditions of the installation.
When replacing the membrane, it is advisable to replace the flow restrictor at the same time. For this model, a 550 restrictor is required.
Chlorine tolerance is 0 ppm, therefore the membrane requires properly functioning pre-filtration protecting it from contact with chlorine.
* Depending on the quality of the feed water.
Application
Supreme 100 GPD is a solution designed for use in classic RO installations as a component responsible for the main contaminant separation process. It will work wherever a reverse osmosis system is to prepare water for consumption or for applications requiring a high level of purity, such as aquariums.
Thanks to its standard dimensions, the membrane can be used as a replacement part in many popular devices in which the osmotic filter uses a 12-inch housing.
Additional important information
- Height: 12" Diameter: 2"
Technical specification
| Parameter | Value |
|---|---|
| Manufacturer | SUPREME |
| Model | ULP100 Max |
| Capacity | 100 GPD / up to 380 L/24h |
| Height | 12" |
| Service life | 6 years * |
| Chlorine tolerance | 0 ppm |
| Operating pressure | 2.8 - 6 bar |
| Operating temperature | 2-42 °C |
| Required restrictor / flow limiter | 550 * |
FAQ
Which systems is the Supreme 100 GPD membrane compatible with?
The membrane is designed for reverse osmosis systems used for drinking water filtration and in aquarium systems. Thanks to its standard dimensions, it fits most typical RO membrane housings.
What is the capacity of this osmotic membrane?
The Supreme 100 GPD model achieves a capacity of 100 GPD, or up to 380 liters per 24 hours.
What contaminants does the membrane retain?
The membrane retains up to 99.9% of dissolved organic and inorganic contaminants, heavy metals, and some bacteria and viruses not smaller than 0.001 micron.
Does the membrane completely remove contaminants from the water?
In the reverse osmosis process, contaminants are separated from the purified water and discharged to the sewage system, while the filtered water passes to the central spindle of the membrane and then flows out of the cartridge under pressure.
Can this membrane be used with any water?
No. The membrane should not be used for microbiologically contaminated water or water of unknown origin.
How long can the Supreme 100 GPD membrane operate?
The approximate service life is up to 6 years, but it depends on the quality of the feed water and the operating conditions of the entire water filtration system.
Do I also need to replace the restrictor when replacing the membrane?
It is advisable to also replace the flow restrictor. For this model, a 550 restrictor or flow limiter is required.
What are the required operating conditions for the membrane?
The operating pressure range is 2.8-6 bar, and the operating temperature is 2-42 °C. Chlorine tolerance is 0 ppm, so the membrane should operate in a system with appropriate pre-filtration.
Is the product original?
Yes. Each membrane is marked with an individual serial number, which confirms the originality of the product.
