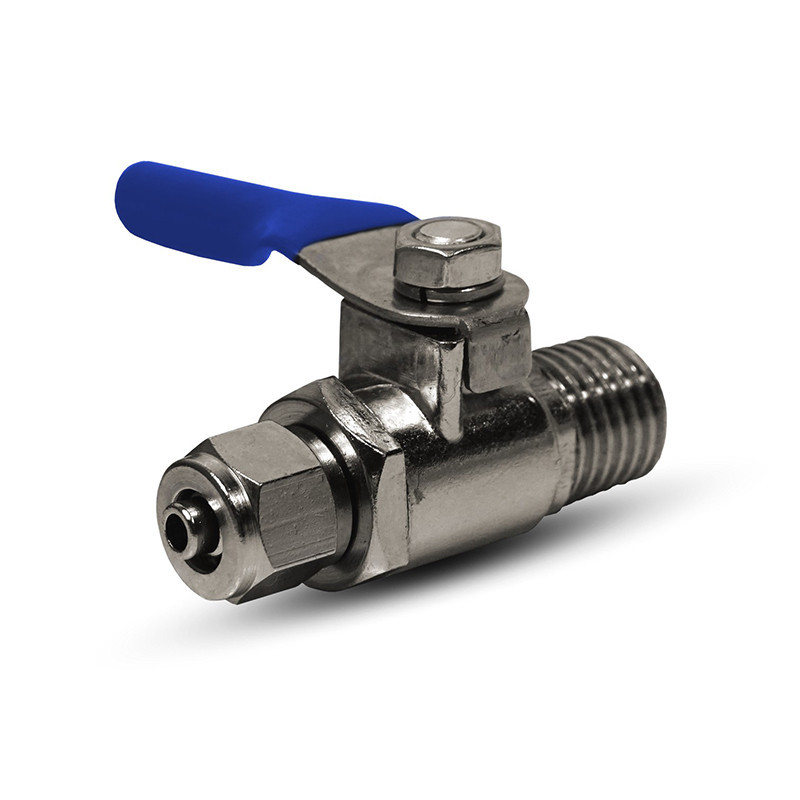

SEWBV1414 1/4" connection valve
ZK14GZ14T
5901521891106
Rating
SEWBV1414 is a metal ball valve for connecting the water supply to the filter. It is typically mounted with a water connection, creating a tee that allows for integration into the installation. It fits connections with a mounting hole of 1/4 inch. The valve has a 1/4 inch external thread, and the hose connection is made using a "mushroom" and a nut from the set.
Description
SEWBV1414 1/4" connection valve is a metal ball valve designed for connecting the water supply to a filter. It works well as a practical installation component in systems such as a water filter, reverse osmosis filter, reverse osmosis, and other water treatment solutions. Installed together with a water connector, it forms a tee that allows convenient integration of the filtration system into most domestic water installations.
The model is equipped with a 1/4-inch male thread and a hose connection with a so-called mushroom fitting, with a mounting nut included in the set. This solution makes it easier to connect the pipe supplying water to the filter and allows a tight, functional connection without additional sealing on the hose side.
What is the SEWBV1414 valve used for?
SEWBV1414 is typically used to connect the water supply to a filter. It is a small but very important installation component that allows the filtration unit to be connected to an existing water connection in a controlled way.
The valve is most often used together with a water connector of an appropriately selected diameter. After combining these elements, a tee is created, allowing the filter to be connected to most water installations found in households.
Design and connection method
The valve has a metal construction and a ball valve design, which makes it well suited as a water supply component for filtration systems. This is a commonly used solution when installing under-sink filtration sets and in installations based on a water filtration system.
The SEWBV1414 model fits all water connectors, regardless of manufacturer, provided that the connector has a 1/4-inch mounting hole.
The valve has a 1/4-inch external thread, which is approximately 11 mm. On the hose side, a so-called mushroom fitting is used, onto which the hose is slipped. The whole assembly is then tightened with the nut included in the set.
Main benefits
- allows the water supply to be connected to the filter,
- creates a functional installation tee with the water connector,
- fits connectors with a 1/4-inch mounting hole,
- is compatible with connectors from different manufacturers,
- has a standard 1/4-inch male thread,
- does not require additional sealing on the hose side,
- a nut for hose installation is included in the set.
Use in filtration systems
The 1/4-inch connection valve is used in many installations designed to improve water quality. It is suitable for connecting systems such as an under-sink water filter, an osmosis filter, a reverse osmosis system, or a classic reverse osmosis filter.
Thanks to its standard mounting solution, it can be used in installations where convenient water supply to the filtration device matters without the need for extensive plumbing modifications.
Important installation note: the hose connection to the valve does not require additional sealing. However, the connection between the valve and the water connector should be sealed, for example with PTFE tape.
Installation and operation
Proper valve installation is crucial for the tightness and safe operation of the entire filtration system. The valve is designed to be mounted directly with the water connector, together forming a tee that supplies the filter.
What does the connection look like?
- the valve is installed in the standard way together with the water connector,
- the thread on the connector side should be sealed, e.g. with PTFE tape,
- on the hose side, the pipe is slipped onto the mushroom fitting,
- then the connection is tightened with the nut included in the set,
- the hose connection to the valve does not require additional sealing.
This solution is convenient in everyday use and is often used when connecting water filtration devices in the kitchen, including RO systems and other water treatment sets.
Contents of the set
- SEWBV1414 metal ball valve,
- nut for tightening the hose connection.
Technical specifications
| Model | SEWBV1414 |
|---|---|
| Product type | Metal ball valve |
| Intended use | Connecting the water supply to a filter |
| Thread diameter | 1/4 inch |
| Thread type | Male |
| Approximate thread diameter | Approx. 11 mm |
| Compatibility with connector | Water connectors with a 1/4-inch mounting hole |
| Hose connection method | On a mushroom fitting, tightened with a nut |
| Additional sealing on the hose side | Not required |
| Sealing on the water connector side | Required, e.g. with PTFE tape |
| Application | Water filters and filtration systems |
Product Details
ZK14GZ14T
991 Items
Data sheet
- Model
- SEWBV1414
- Accessory type
- Valve
- Compatibility
- Universal RO systems
- Connection size
- 1/4″
- Product type
- Valve
- Tube outer diameter
- 1/4″
Questions
What is the SEWBV1414 valve used for?
The valve is used to connect the water supply to a filter. Installed together with the water connector, it allows the filtration system to be integrated into the water installation.
Is this valve suitable for a reverse osmosis system?
Yes, SEWBV1414 is suitable for applications such as a reverse osmosis filter, an osmosis filter, or a complete reverse osmosis system, as long as the installation uses a connector with a 1/4-inch mounting hole.
What thread does the valve have?
The SEWBV1414 model has a 1/4-inch male thread. The approximate thread diameter is about 11 mm.
Does the valve fit only connectors from one brand?
No. The valve fits all water connectors from different manufacturers, provided they have a 1/4-inch mounting hole.
How is the hose connected to the valve?
On the hose side there is a so-called mushroom fitting. The hose should be slipped onto it and then the connection should be tightened with the nut included in the set.
Does the hose connection to the valve need additional sealing?
No, the hose connection to the valve does not require additional sealing.
Does the valve thread on the water connector side need to be sealed?
Yes, the connection between the valve and the water connector should be sealed, for example with PTFE tape, to ensure a watertight installation.
What is included in the set?
The set includes the SEWBV1414 metal ball valve and the nut needed to tighten the hose connection.
