RO drain clamps

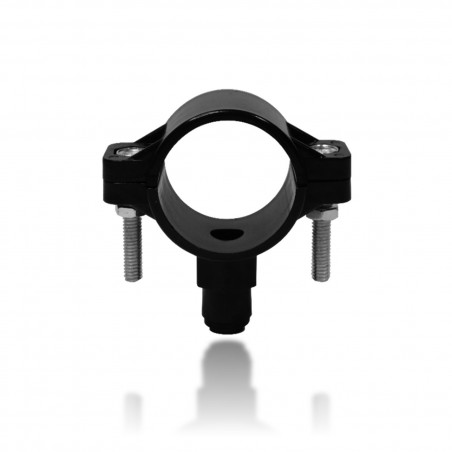

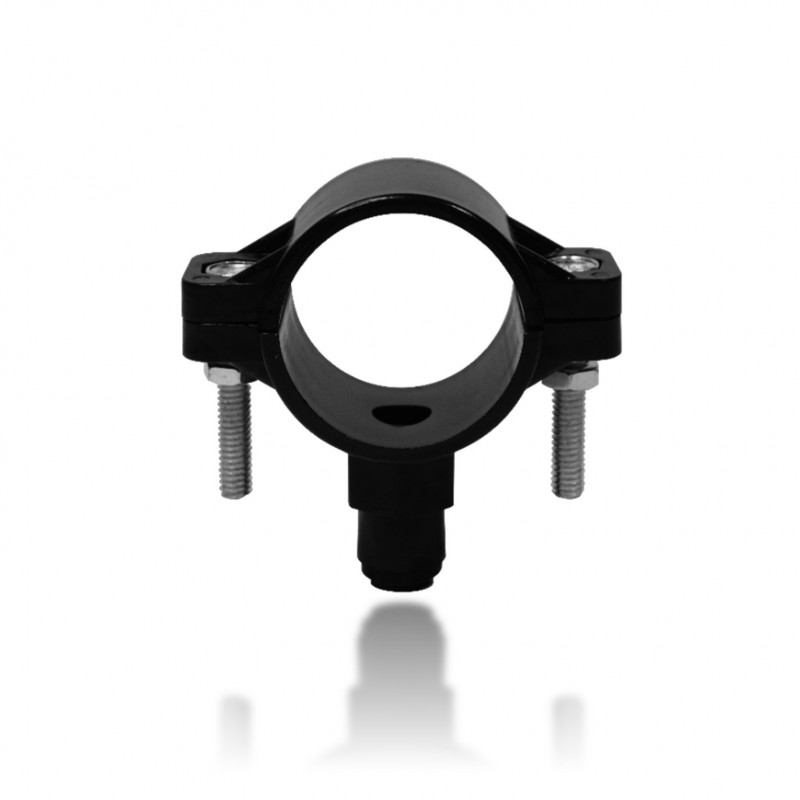

SC500B14 drain pipe clamp for sewage
Rating
SC500B14 drainage outlet clamp is a holder for securing the hose that drains dirty water from the filter, most commonly in reverse osmo Read moreShow less
SC500B14 drainage outlet clamp is a holder for securing the hose that drains dirty water from the filter, most commonly in reverse osmosis (RO) systems. It allows for maintenance-free drainage of the reject water to the sewage system during membrane rinsing. It is mounted on a pipe, preferably behind the siphon, with a seal to limit gas escape.
Specifications
OBEJMA14
In stock
- Accessory type
- Drain saddle
- Compatibility
- Universal RO systems
- Model
- SC500B14
- Product type
- Accessory / spare part
- Tube outer diameter
- 1/4″
Description
SC500B14 drain pipe clamp for sewage is a practical mounting component designed to connect a hose that discharges wastewater to the sewage system. It is most commonly used in devices such as reverse osmosis, osmotic filter, and complete reverse osmosis system, where it ensures convenient and leak-tight discharge of the reject water generated during membrane operation. This small but very important component supports maintenance-free and automatic operation of the water filter.
What is the SC500B14 clamp used for?
The SC500B14 clamp is used to attach a hose that drains dirty water to the sewage system. It is a solution used primarily in water treatment systems based on reverse osmosis, where filtration produces a stream of purified water and a stream of reject water containing concentrated contaminants.
Thanks to the drain clamp, it is possible to permanently connect the drain hose to the sewage pipe, which makes everyday operation of the device easier and allows automatic disposal of wastewater without the need for manual handling.
How does the clamp work in a reverse osmosis system?
In installations such as a reverse osmosis filter or another water filtration system with an osmotic membrane, the device automatically replenishes the water in the tank when the level of stored water drops. During this time, the water is treated on the osmotic membrane.
During the water treatment process, the membrane is also technologically rinsed and the concentrated contaminants are discharged. This reject water is normally directed to the sewage system. The SC500B14 clamp is used for this connection, enabling proper fastening of the drain hose.
In practice, this means that the component supports fully automatic, maintenance-free operation of the RO system and helps maintain the correct filtration process.
Key benefits
- allows the reject hose to be connected to the sewage system,
- supports automatic operation of the reverse osmosis system,
- makes it easier to properly drain dirty water during membrane rinsing,
- allows for an aesthetic and durable installation on the sewage pipe,
- the included gasket helps reduce the escape of gases from the sewage system,
- the screw-tightened design ensures a strong attachment of the clamp to the pipe.
Installation and correct placement
The pipe clamp is best installed after the trap. This placement helps avoid unwanted gurgling sounds associated with water flowing into the sewage system. This is an important installation tip that improves the comfort of using the entire filtration set.
At the point where the hole is made in the sewage pipe, tightness is essential. The clamp is equipped with a gasket that reduces the escape of gases from the sewage system. Depending on the delivery, this may be a rubber foam pad or an O-ring rubber gasket.
The best place to install the clamp is the section of pipe after the trap. This solution helps reduce the noise associated with reject water discharge and improves the overall operation of the system. During installation, ensure that the hole is made properly and that the gasket is pressed in firmly.
Clamp design
The Aquafilter SC500B14 clamp consists of two halves tightened with screws. This design allows the component to be firmly attached to the sewage pipe and creates a stable connection with the drain hose.
The simple, functional design makes the clamp well suited as an installation component in home water treatment systems, especially where an osmotic membrane is operating and continuous wastewater discharge is required.
Application
SC500B14 is used wherever a water filter generates reject water that must be discharged into the sewage system. This will most often be:
- reverse osmosis used at home,
- under-sink osmotic filter,
- reverse osmosis system with tank,
- water filtration system using an osmotic membrane,
- water treatment systems requiring disposal of dirty water during operation or rinsing.
Technical specification
| Model | SC500B14 |
|---|---|
| Product type | Drain pipe clamp for sewage |
| Intended use | Fastening a hose that drains dirty water to the sewage system |
| Application | Mainly RO reverse osmosis systems |
| Installation location | Sewage pipe, preferably after the trap |
| Sealing | Gasket that limits the escape of gases from the sewage system |
| Gasket type | Depending on the delivery: rubber foam pad or O-ring rubber gasket |
| Design | Two halves tightened with screws |
| Function in the system | Discharging reject water and wastewater generated during treatment and membrane rinsing |
| Depending on the delivery | rubber foam pad or O-ring rubber gasket |
FAQ
What is the SC500B14 clamp used for?
It is used to secure a hose that drains dirty water to the sewage system. It is mainly used in reverse osmosis systems, where it discharges the reject water generated during membrane operation.
Is the clamp compatible with RO systems?
Yes, it is mainly intended for use with RO filters and reverse osmosis systems where a drain connection to the sewage system is required.
Why does the SC500B14 drain pipe clamp for sewage osmotic system need to drain water to the sewage system?
During operation of the osmotic membrane, part of the water is purified and part is used to flush out contaminants. This wastewater, called reject water, should be discharged to the sewage system.
Where is the best place to install the drain clamp?
It is best to install it after the trap. This placement helps reduce gurgling sounds and improves the comfort of everyday filter use.
Does the clamp ensure a tight connection?
Yes, the clamp has a gasket that helps reduce the escape of gases from the sewage system through the hole made in the drain pipe.
What gasket is included in the clamp?
Depending on the delivery, it may be a rubber foam pad or an O-ring rubber gasket. Both solutions provide sealing.
How is the SC500B14 clamp built?
It consists of two halves tightened with screws. This design allows the clamp to be firmly and stably attached to the sewage pipe.
Is the clamp necessary for automatic operation of a reverse osmosis filter?
Yes, proper discharge of reject water to the sewage system is an important part of system operation. The clamp helps organize this drain in a durable and convenient way, supporting maintenance-free operation of the device.
