Big Blue 20-inch cartridges

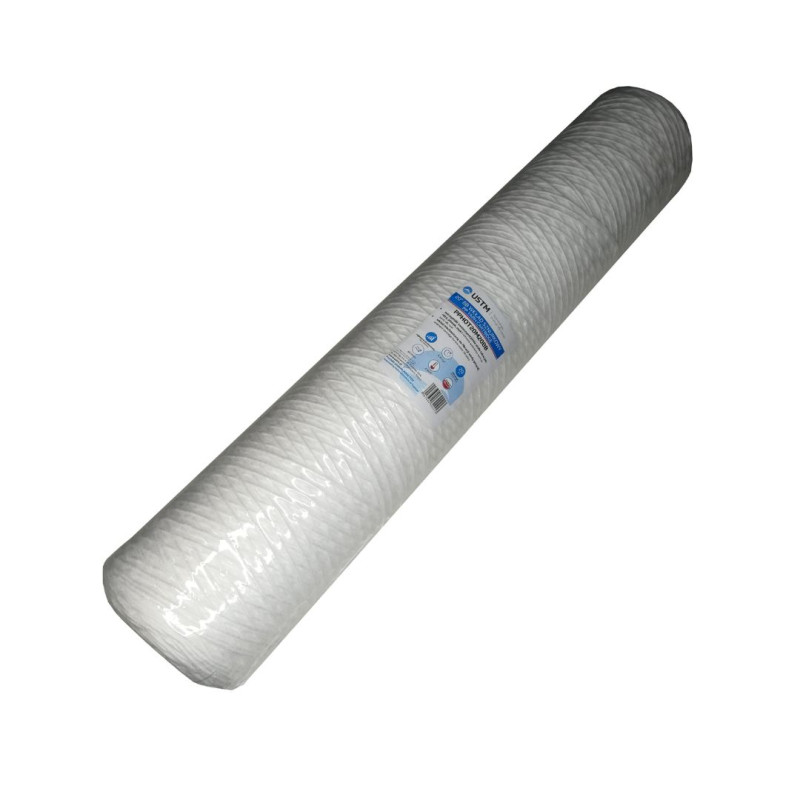

PPHOT20M20BB CORD INSERT FOR HOT WATER BB 20
Rating
PPHOT20M20BB is a wound polypropylene cartridge for 20-inch Big Blue housings. It traps sand, rust and silt in water at 2–80°C. Flow ra Read moreShow less
PPHOT20M20BB is a wound polypropylene cartridge for 20-inch Big Blue housings. It traps sand, rust and silt in water at 2–80°C. Flow rate up to 60 l/min.
Benefits
- Captures sand, sediment and rust particles
- Protects subsequent filtration stages
Specifications
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
- Cartridge type
- String wound sediment
- Compatibility
- Big Blue 20"
- Housing standard
- Big Blue 20″
- Service life
- 6 months
View full specifications
- Material
- Polypropylene
- Maximum flow
- 60 l/min
- Maximum working temperature
- 80 °C
- Filter media
- Polypropylene
- Minimum working temperature
- 2 °C
- Model
- PPHOT20M20BB
- Product type
- Filter cartridge
- Reusable
- No
Description
PPHOT20M20BB is a string cartridge for hot water BB 20, designed for mechanical filtration of solid contaminants in water systems. This filter cartridge made of polypropylene fits BIG BLUE 20" housings and effectively supports the water filtration system as well as everyday water treatment by retaining rust, sand, and silt. The gradient fiber structure improves contaminant separation efficiency, and heat resistance up to 80°C allows it to be used in hot water systems as well.
BB 20 string cartridge for hot water filtration
The PPHOT20M20BB model is made of polypropylene string and designed to operate as a mechanical cartridge in BIG BLUE 20" housings. This solution is intended to capture solid contaminants present in utility water, especially where preliminary protection of installations, fittings, valves, taps, and subsequent filtration stages is required.
Thanks to its string construction, the cartridge performs well as a mechanical filtration element in domestic and utility water systems. It can serve as an important stage when a water filter is meant to protect downstream system components from sediments and solid particles.
How the cartridge's gradient structure works
The cartridges are made of polypropylene string. The use of a special winding method of the yarn onto the core, i.e. the cartridge’s central support, made it possible to obtain a gradient structure.
In practice, this means that the fiber density increases toward the inside of the cartridge. At the same time, the micron rating decreases in subsequent layers, which translates into greater filtration efficiency. Such a structure promotes effective retention of solid particles and better use of the entire volume of the filter material.
What contaminants it retains
The PPHOT20M20BB mechanical cartridge is used to remove solid contaminants from water, such as:
- rust
- sand
- silt
These are typical deposits found in water systems that can reduce water use comfort, accelerate wear of fittings, and burden further elements of the water filtration system.
Application in water systems
The 20" cartridge for BIG BLUE housings is used wherever effective mechanical filtration of hot water is needed. It can work as a pre-stage before other water treatment solutions or as a standalone cartridge responsible for capturing solid particles.
It is a good choice for users who want to reduce the presence of sediments in water and improve system protection. In systems that use more advanced technologies such as reverse osmosis filters, osmosis filters, reverse osmosis, or reverse osmosis systems, mechanical filtration remains an important preliminary stage for the entire setup.
Important operating note: cartridge service life is up to 6 months and depends on water quality and the level of contamination. In case of heavy media fouling or reduced performance, the cartridge should be replaced earlier to maintain proper filtration efficiency.
Main benefits
- designed for hot water filtration
- made of polypropylene string
- gradient structure increasing filtration efficiency
- effective retention of solid contaminants
- protection of the installation and subsequent elements of the filtration system
- compatibility with BIG BLUE 20" housings
- flow rate of 60 l/min
Technical specifications
| Model | PPHOT20M20BB |
|---|---|
| Product type | Hot water string cartridge |
| Material | Polypropylene string |
| Size | 20" |
| Housing standard | BIG BLUE 20" |
| Flow rate | 60 l/min |
| Temperature range | 2-80°C |
| Service life | up to 6 months (depending on water quality) |
| Retained contaminants | rust, sand, silt |
FAQ
What is the PPHOT20M20BB cartridge used for?
Which housings does this cartridge fit?
Is this cartridge suitable for hot water?
What contaminants does the string cartridge remove?
What does gradient structure mean?
What is the flow rate of this cartridge?
How often should the cartridge be replaced?
Can the cartridge work as the first filtration stage?
It is a mechanical cartridge designed for hot water filtration. Its task is to retain solid contaminants such as rust, sand, and silt in order to improve the protection of the installation and subsequent elements of the filtration system.
The cartridge is 20" in size and is intended for BIG BLUE 20" housings.
Yes. The operating temperature range is from 2 to 80°C, so the cartridge can be used in hot water installations within the specified parameters.
The cartridge retains solid contaminants present in water, especially rust, sand, and silt.
Gradient structure means that the fiber density increases toward the inside of the cartridge. As a result, the micron rating decreases in deeper layers and filtration efficiency increases because contaminants are gradually captured within the material structure.
The cartridge flow rate is 60 l/min.
Cartridge service life is up to 6 months, but the actual service period depends on water quality and the amount of contaminants. If a drop in flow or noticeable fouling occurs, the cartridge should be replaced earlier.
Yes, the string cartridge works very well as a preliminary mechanical filtration stage. It helps reduce the amount of solid particles reaching downstream devices and other water treatment components.
Compatible with 5
Compatible devices and housings.
- Big Blue 20" Double O-ring Filter Housing
- FH20B1-B-WB Aquafilter big blue 20" filter housing Reference: FH20B1-B-WB
- HHBB20A Aquafilter double big blue 20" water filter Reference: HHBB20A
- HHBB20B Aquafilter triple big blue water filter 20" Reference: HHBB20B
- WODARO HBB20 BIG BLUE Water Filter Treatment Station Reference: HBB20
