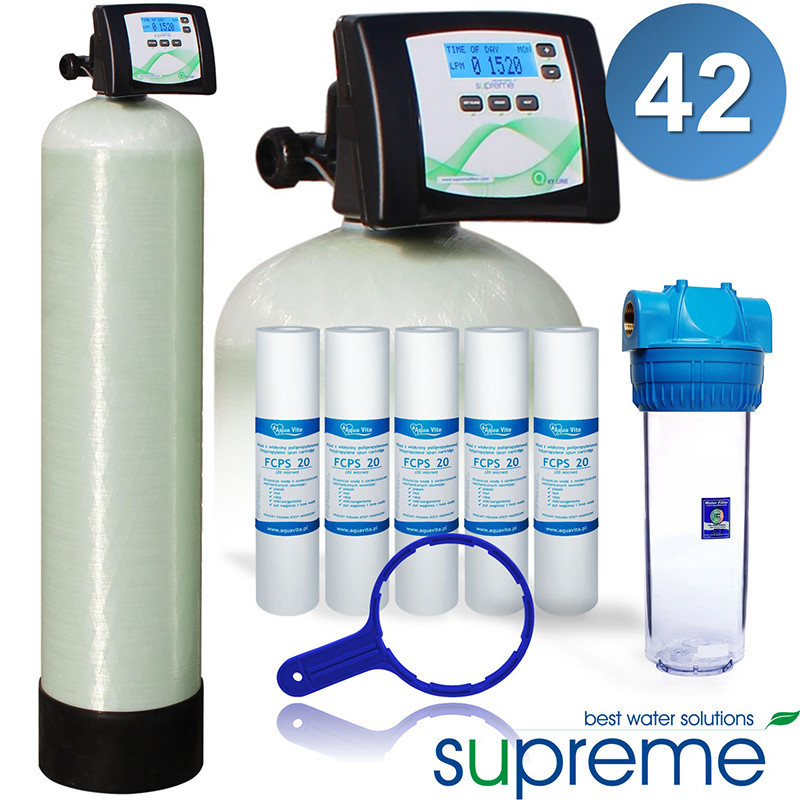

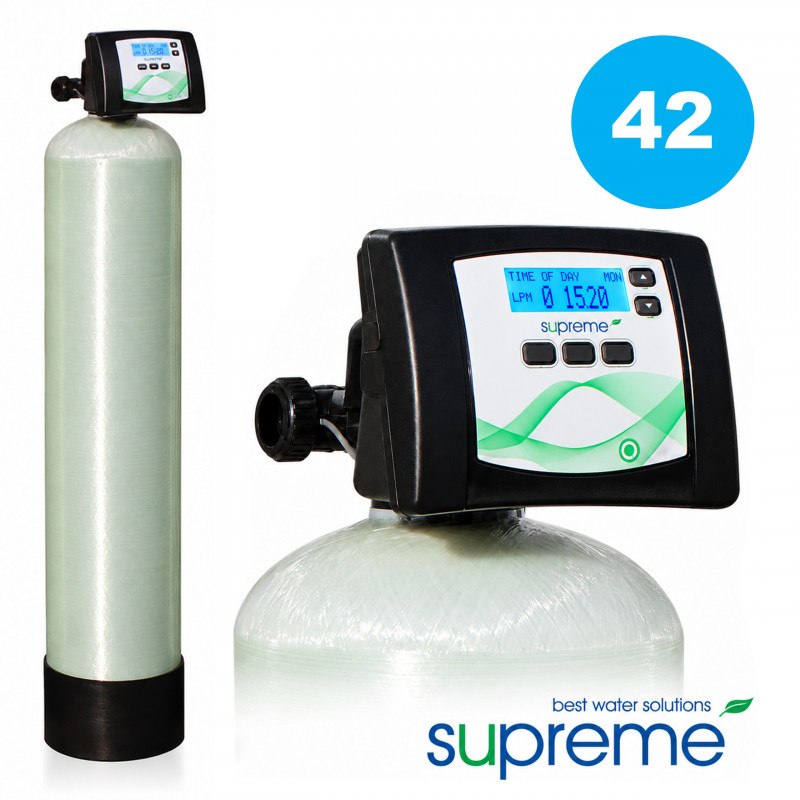

OXYLINE PLUS 42 Supreme deironizer demanganizer

The OXYLINE PLUS TM series is a modern line of ecological water deironizers. The modern systems of the OXYLINE PLUS TM series are characterized by excellent quality and very high effectiveness in reducing iron, manganese, and hydrogen sulfide, at a low pH level of water (6.0).

Iron, manganese, and hydrogen sulfide are among the most common contaminants found in drinking and general-use water. OXYLINE stations work with every type of pressure tank (flow or diaphragm), and additionally do not require the use of chemical preparations.

How the device works:

During the regeneration mode, the device draws in air, creating an air cushion inside the tank. The result of aeration is excellent reduction of iron, manganese, and hydrogen sulfide. This solution eliminates the need for additional aeration of the water.

Main advantages of the OXYLINE PLUS system:

• Electronic backlit controller
• Reliable CLACK control valve, operates in a timed mode and ensures complete automatic operation of the device. The controller incorporates many patented and modern solutions that ensure long and trouble-free operation.
• High-performance Katalox Light™ resin - the end of problems with regeneration chemicals
• Compatible with both diaphragm and flow pressure tanks. Backwash hoses included
• The OXYLINE PLUS TM systems are built on the largest possible tanks that can store large amounts of media and air. The pressure tank is made of the highest quality materials, making it resistant to cracking.
• The devices do not require the installation of an additional tank, allowing them to be installed wherever space is limited.
• Optionally, the OXYLINE PLUS TM systems can be equipped with a BY-PASS valve, which ensures the supply of raw water to the installation in case of device failure and during maintenance work, along with an angle connection that allows for quick, easy, and convenient installation of the product.
• Backwash hoses included

Technical parameters:

• Series: OXYLINE PLUS TM
• Model: OXYLINE PLUS 42
• Working pressure min./max.: 2.5 bar / 8.6 bar
• Working temperature min./max.: 4°C - 43°C
• Electrical connection: 230/50 V/Hz
• Hydraulic connection inlet/outlet: external thread 1” BSP
• Type of control: Electronic, timed
• BY-PASS valve: optional
• Media working parameters (pH): 6 - 9.0

Available sizes: 28L, 42L, 56L
