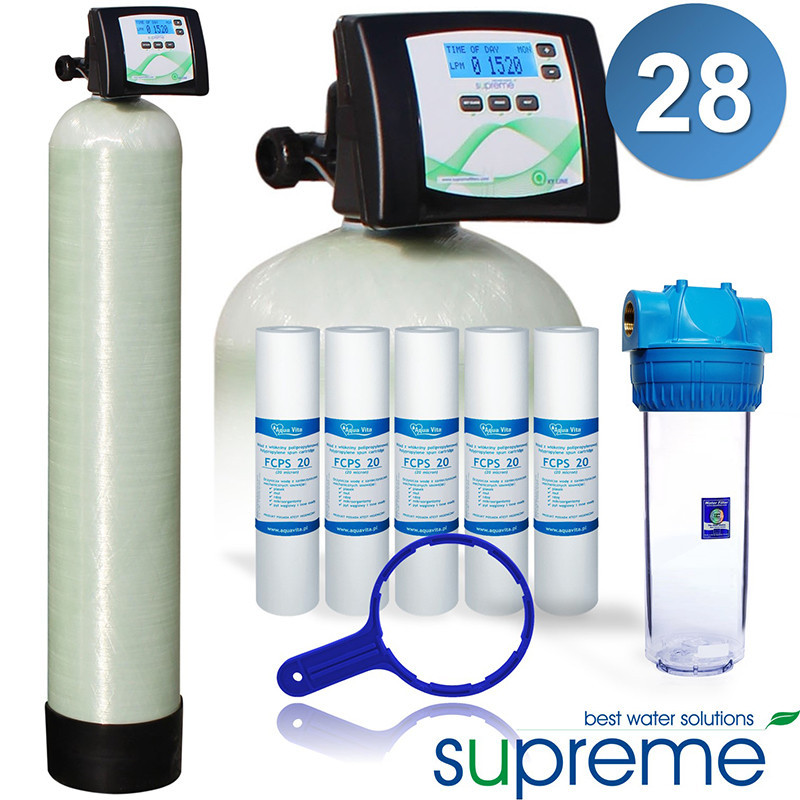

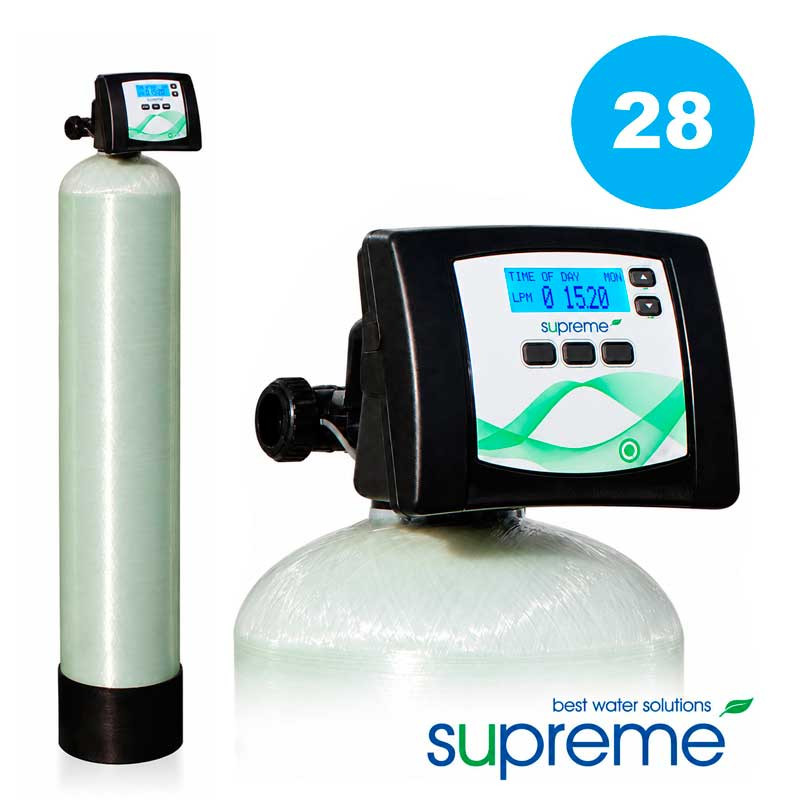

OXYLINE PLUS 28 Supreme iron remover manganese remover

Eco-friendly iron and manganese remover for everyday water treatment

The OXYLINE PLUS TM series is a modern line of eco-friendly iron removal systems, created to effectively eliminate the most common water quality issues found in raw water. The OXYLINE PLUS 28 Supreme model reduces the content of iron, manganese, and hydrogen sulfide, improving the quality of service water and the comfort of its daily use.

The system stands out for its high efficiency even at a low water pH level of 6.0. This is an important feature in installations where conventional treatment solutions do not always deliver the expected results or require expansion with additional components.

Iron, manganese, and hydrogen sulfide are among the most common contaminants found in drinking water and general utility water. OXYLINE PLUS 28 Supreme has been designed to reduce these problems automatically, without the need to use chemical agents.

How OXYLINE PLUS 28 Supreme works

During the regeneration mode, the unit draws in air, creating a special air cushion inside the tank. In practice, this means effective water aeration without the need for additional aerators or separate aeration systems.

The aeration effect supports the reduction of iron, manganese, and hydrogen sulfide. As a result, the system combines effective performance with simpler installation and a more compact design, which is especially important where installation space is limited.

Key advantages of the OXYLINE PLUS system

• Electronic backlit controller makes the device easier to operate and monitor.
• Reliable CLACK control valve operates in time-based mode and ensures fully automatic operation of the device. The controller uses many patented and modern solutions that support long-term and trouble-free operation.
• High-performance Katalox Light™ media eliminates the need for regeneration chemicals, ensuring effective media operation without requiring additional chemical agents.
• Compatibility with diaphragm and flow-pressure tanks increases versatility in various types of water installations.
• Backwash hoses included make the system easier to prepare for operation.
• Large pressure tank has been selected to store large amounts of media and air. The tank itself is made of high-quality materials, making it resistant to cracking.
• No need to install an additional tank simplifies installation and saves space.
• Optional BY-PASS valve can provide raw water supply to the installation in the event of device failure or during maintenance work.
• Optional elbow connector enables quick, easy, and convenient installation of the product.

Practical application

OXYLINE PLUS 28 Supreme works well as a central water filter for buildings with their own water intake, especially where ferric deposits, fixture staining, dark manganese buildup, or unpleasant odor related to the presence of hydrogen sulfide are a problem. It is a solution for users looking for an automatic and convenient water treatment system before further filtration stages in the installation.

In practice, such a system can be an important part of a larger service water preparation setup. In many homes, the iron and manganese remover operates as a preliminary stage before devices such as an under-sink water filter, osmotic filter, reverse osmosis filter, reverse osmosis system, or reverse osmosis for drinking water. Thanks to this, water directed to subsequent purification stages is better prepared for further filtration.

Design and operation

The system has been designed with an emphasis on user convenience and stable, automatic operation. The electronic time-based control is responsible for the device's operating cycles, and the CLACK valve used is among the solutions valued for durability and reliability in water treatment systems.

Operation of the device does not require the use of regeneration chemicals. This is a convenient solution, more user-friendly in everyday use, and practical in residential installations. At the same time, the system works with various types of pressure tanks, which makes its implementation easier in existing water systems.

Available sizes in the series

The OXYLINE PLUS TM series is available in the following sizes:

• 28L
• 42L
• 56L
