Cartridges for Cintropur filters

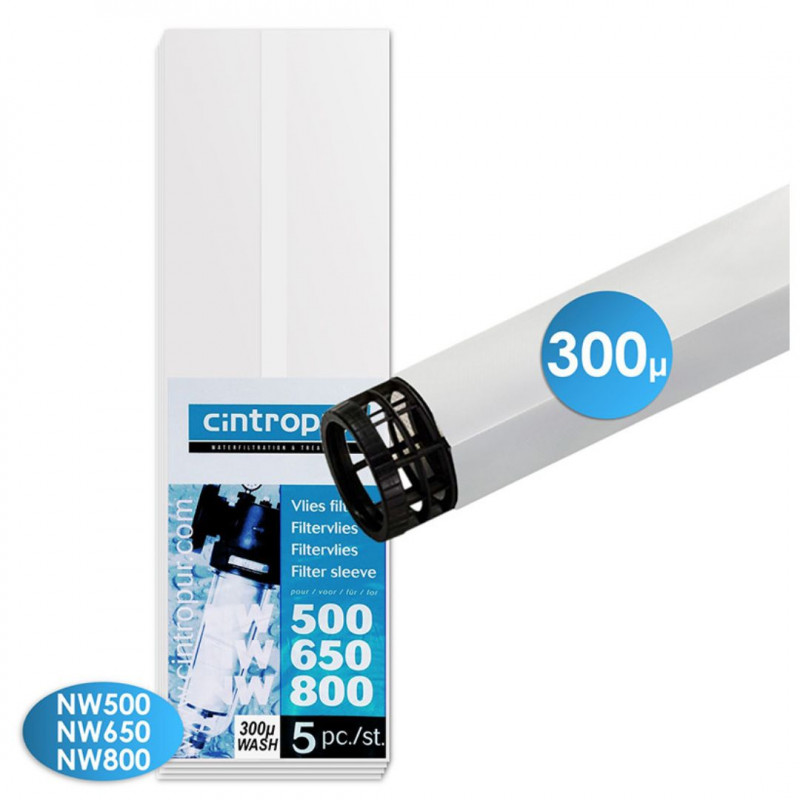

NW500 Cintropur filter insert 300 micron NYLON
Rating
Nylon sock insert (sleeve) for Cintropur industrial filters: NW 500, NW 650, NW 800, and older series NW 50, NW 62, NW 75. Mechanical f Read moreShow less
Nylon sock insert (sleeve) for Cintropur industrial filters: NW 500, NW 650, NW 800, and older series NW 50, NW 62, NW 75. Mechanical filtration up to 300 microns removes rust, sand, and silt, among others. The smooth surface facilitates the settling of contaminants to the bottom of the body and their drainage. Reusable insert. Packaging: 5 pcs.
Benefits
- Captures sand, sediment and rust particles
- Reusable after rinsing
Specifications
NW500/650/800-300
9993 Items
- Application
- Industrial
- Cartridge type
- Reusable / pleated
- Filtration rating
- 300 µm
- Product type
- Filter cartridge
- Reusable
- Yes
Description
NW500 Cintropur filter insert 300 micron NYLON is a durable filter insert for industrial Cintropur filters, designed for effective mechanical water filtration. The nylon sleeve retains rust, sand, sludge, and other solid contaminants, supporting water treatment and protecting the installation. This is a practical water filter used in more extensive systems where a reliable water filtration system, easy rinsing, and compatibility with many Cintropur models matter.
Nylon sock insert for Cintropur filters
The sock insert, also called a nylon sleeve, has been designed for Airwatec Cintropur industrial filters. It fits NW 500, NW 650, and NW 800 models, as well as the older NW 50, NW 62, and NW 75 series. It is a solution intended for mechanical filtration, whose task is to capture contaminants present in the water before further stages of use or treatment.
A filtration accuracy of 300 microns makes it possible to effectively reduce the presence of larger solid particles such as rust, sand, sludge, and other mechanical contaminants. As a result, the insert helps protect fittings, water installations, and devices operating in the water circuit.
How the Cintropur nylon insert works
The sleeve is made of nylon with a smooth surface. This design not only supports effective retention of mechanical contaminants, but also helps them settle to the bottom of the filter housing. This is an important operational feature, because the sediment can then be conveniently removed by opening the drain valve.
In practice, this means simpler filter operation and more efficient maintenance of the system’s cleanliness, especially where the water contains a higher amount of suspended solids. The insert is suitable for multiple rinsing, which increases convenience of use and allows one set to be used for longer.
The insert performs a mechanical filtration function. It works well as a pre-filtration element in utility and industrial water systems, where the goal is to retain solid particles and protect the downstream components of the system.
Applications in installations and facilities
Industrial Cintropur filters equipped with the proper insert help protect various types of installations from mechanical contaminants present in the water. The 300-micron nylon insert is used wherever reliable pre-filtration is important.
- protection of industrial installations,
- protection of sanitary installations,
- support for water systems,
- protection of production machinery,
- filtration of irrigation networks,
- use in schools,
- use in restaurants,
- use in hotels,
- use in other large facilities.
Such a solution often forms an important part of a broader system in which the mechanical filter insert protects subsequent water purification stages. It can work as a stage preceding more advanced methods, including installations with a fine filter, an osmosis filter, a reverse osmosis system, or a reverse osmosis filter.
Main user benefits
- compatibility with both new and older generations of Cintropur filters,
- mechanical filtration down to 300 microns,
- effective removal of rust, sand, sludge, and other mechanical contaminants,
- smooth surface that helps contaminants settle at the bottom of the housing,
- easier removal of sediment through the drain valve,
- ability to rinse multiple times,
- practical use in industrial, sanitary, and water installations.
Set contents
The set includes 5 pieces of nylon sock insert providing filtration with an accuracy of up to 300 microns.
Technical specifications
| Product type | Nylon sock insert (sleeve) |
|---|---|
| Application | Cintropur industrial filters |
| Compatible models | NW 500, NW 650, NW 800 |
| Compatibility with older series | NW 50, NW 62, NW 75 |
| Filtration type | Mechanical filtration |
| Filtration accuracy | 300 microns |
| Retained contaminants | Rust, sand, sludge, and other mechanical contaminants |
| Material | Nylon |
| Surface | Smooth |
| Operational features | Contaminants settle at the bottom of the housing and can be removed by opening the drain valve |
| Rinsing possibility | Yes, insert for multiple rinsing |
| Package | 5 pcs. |
FAQ
Which filters does the NW500 Cintropur 300 micron insert fit?
The insert fits Cintropur NW 500, NW 650, and NW 800 filters. It is also compatible with the older NW 50, NW 62, and NW 75 series.
What contaminants does this nylon insert retain?
The insert is used for mechanical filtration and primarily retains rust, sand, sludge, and other solid contaminants present in the water.
What does filtration down to 300 microns mean?
It means that the insert captures mechanical contaminants sized according to a filtration accuracy of 300 µm. This is a level suitable for pre-filtration of water and protection of installations and devices.
Can the insert be cleaned and reused?
Yes. It is an insert for multiple rinsing, which makes operation easier and helps maintain filtration performance with regular servicing.
Why is the smooth nylon surface important?
The smooth surface helps the retained contaminants settle at the bottom of the filter housing. This makes the sediment easier to remove by opening the drain valve.
Where is this filter insert most commonly used?
The insert is used in industrial, sanitary, and water installations. It is also used to protect production machinery, filter irrigation networks, and in large facilities such as schools, restaurants, and hotels.
How many inserts are included in the package?
The package contains 5 nylon sock inserts with a filtration accuracy of 300 microns.
Is this insert suitable as a pre-stage before finer water filtration?
Yes, mechanical filtration using a 300-micron insert works very well as a pre-stage. It helps reduce the amount of larger contaminants before the next components of the water filtration system.
