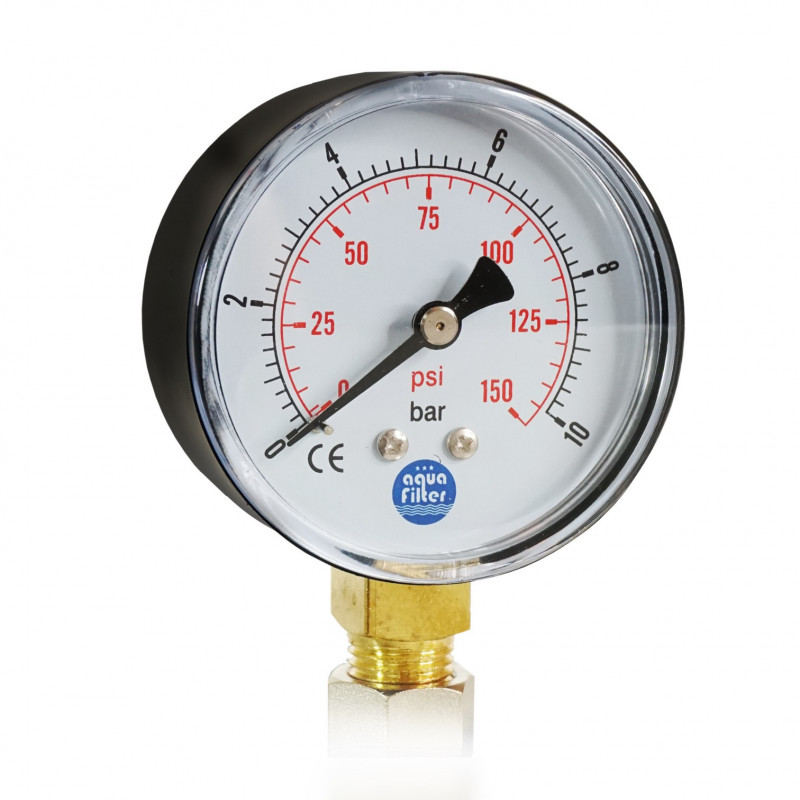

KCGA-1 Aquafilter pressure gauge manometer 1/4 10bar
KCGA-1
Rating
Aquafilter KCGA-1 manometer for pressure control in water installations and filtration systems. Equipped with a 1/4" NPT external thread, it can be connected to typical systems with the appropriate fittings. It facilitates the assessment of supply pressure, among others, in reverse osmosis (RO) systems. Range 0-10 bar (0-150 psi), dual scale bar/psi.
Description
The KCGA-1 Aquafilter is a practical 1/4" pressure gauge for monitoring pressure in water installations, water treatment systems, and water filtration systems. With a 0-10 bar range, dual bar/psi scale, and 1/4" NPT external thread, it makes it easy to quickly assess the operating parameters of an installation, including solutions such as reverse osmosis, an osmotic filter, or a reverse osmosis system. It is a simple and useful diagnostic component that helps check whether the supply pressure is within the proper range for device operation.
Pressure gauge for monitoring pressure in a water installation and filtration systems
The Aquafilter KCGA-1 pressure gauge is designed to measure pressure in a water installation and in a filtration system. It is a particularly useful solution wherever stable supply parameters affect the proper operation of equipment and ease of use.
The 1/4" external thread allows installation using suitable connectors in standard water systems. As a result, the gauge can be integrated into many popular systems where ongoing or periodic pressure monitoring is required.
Why use a pressure gauge in a water system?
Pressure monitoring matters both in home installations and in more advanced filtration systems. The gauge reading allows you to quickly assess the operating conditions of the system and makes it easier to detect problems related to too low or too high pressure.
- enables convenient pressure measurement in a water installation,
- helps assess the operating conditions of filtration equipment,
- works well in systems where a water filter operates,
- facilitates supply diagnostics in domestic and technical installations,
- provides a clear reading thanks to the bar and psi scale.
Use in RO reverse osmosis systems
In installations where a reverse osmosis filter is used, the gauge allows you to assess the water pressure supplied to the system. This is important because proper supply pressure affects the operating conditions of the membrane and the entire system.
If a reverse osmosis system is used, the gauge reading helps check whether the operating conditions for the RO system are correct. This is useful both during initial start-up and during later use, when you want to confirm the stability of the supply parameters.
The pressure gauge can therefore be a practical addition to installations such as:
- reverse osmosis for home use,
- under-sink osmotic filter,
- water filtration system based on an RO membrane,
- water treatment system requiring inlet pressure control.
The pressure gauge has a 1/4" NPT external thread. Suitable adapters or fittings matched to the design of the system may be required for installation in a specific setup.
Clear measurement and convenient assessment of operating parameters
The 0-10 bar measurement range makes the KCGA-1 suitable for monitoring typical water installations and many filtration systems. The additional psi scale increases ease of use, especially when comparing readings with device documentation or using markings found on different system components.
A measurement accuracy of 0.2 bar allows for practical assessment of supply pressure and daily monitoring of installation operating conditions. This is especially useful when you want to confirm proper system operation or diagnose the cause of reduced performance more quickly.
Where is the Aquafilter KCGA-1 pressure gauge a good fit?
This is a versatile component for applications wherever water pressure monitoring is needed. It works well in home installations, with filtration sets, and in systems where quick verification of water supply parameters is important.
- in a standard water installation,
- in under-sink filtration sets,
- in RO systems,
- in water treatment solutions,
- at points requiring pressure control before or within a filtration system.
Technical specifications
| Parameter | Value |
|---|---|
| Brand | Aquafilter |
| Model | KCGA-1 |
| Product type | Pressure gauge / manometer for water installations and filtration systems |
| Thread size | 1/4" NPT |
| Thread type | External |
| Measurement range | 0-10 bar (0-150 psi) |
| Measurement accuracy | 0.2 bar |
| Scale | bar and psi |
| Application | Water installations, filtration systems, RO systems |
FAQ
What is the Aquafilter KCGA-1 pressure gauge used for?
It is used to measure pressure in a water installation and in filtration systems. It helps assess system operating conditions and monitor supply parameters.
Is this pressure gauge suitable for a reverse osmosis system?
Yes, the gauge is useful in reverse osmosis systems because it allows you to assess the supplied water pressure and check whether the operating conditions for the RO system are correct.
What thread does the KCGA-1 model have?
The pressure gauge is equipped with a 1/4" NPT external thread.
What is the pressure measurement range?
The measurement range is from 0 to 10 bar, which corresponds to 0-150 psi.
Is the reading given only in bar?
No. The pressure gauge has a dual scale, so the reading is possible in both bar and psi.
What is the measurement accuracy?
The measurement accuracy is 0.2 bar.
Can the pressure gauge be installed in a standard water installation?
Yes, it can be installed in a standard water installation using appropriate connectors. Fittings should be selected to match the design of the specific system.
Will this pressure gauge work with a water filter?
Yes, it can be used with water filters and in water filtration systems when you want to monitor supply pressure or the operating conditions of the installation.
Product Details
KCGA-1
9976 Items
Data sheet
- Measurement range
- 0–10 bar
- Model
- KCGA-1
- Accessory type
- Pressure gauge
- Connection size
- 1/4″
- Product type
- Pressure gauge
Aquafilter KCGA-1 manometer for pressure control in water installations and filtration systems. Equipped with a 1/4" NPT external thread, it can be connected to typical systems with the appropriate fittings. It facilitates the assessment of supply pressure, among others, in reverse osmosis (RO) systems. Range 0-10 bar (0-150 psi), dual scale bar/psi.
