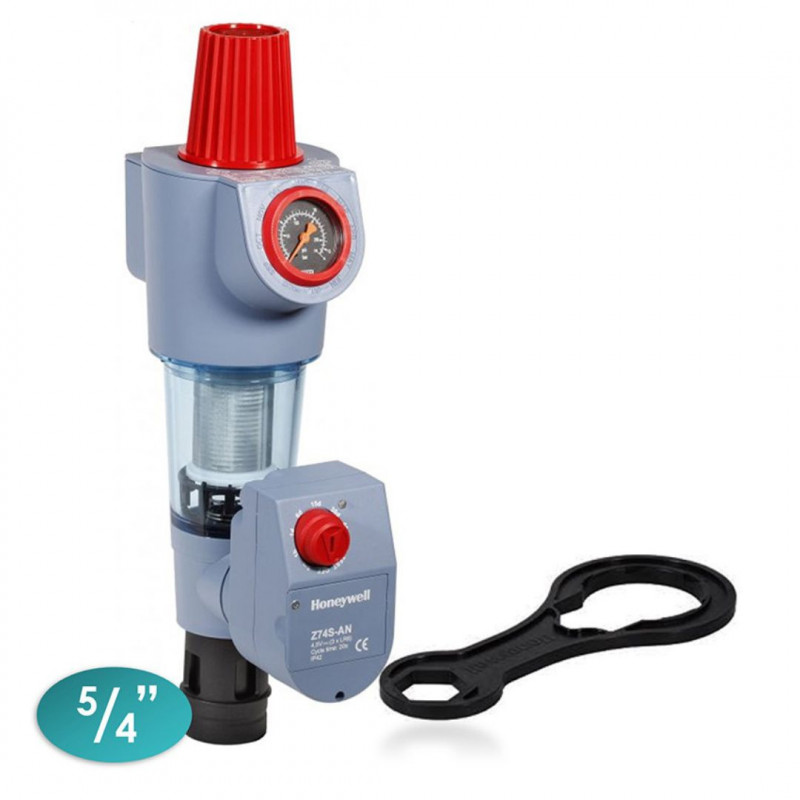

FK74CS-5/4AA Honeywell water filter with pressure regulator controller

Filter-regulating station for installation protection and pressure stabilization

The FK74CS-5/4AA model was designed as a compact filter-regulating station that combines two key functions: mechanical filtration and pressure regulation. This combination helps protect the water installation, fittings, and connected devices against the effects of contamination and excessive pressure.

The filter ensures a continuous supply of filtered water while maintaining constant pressure in the internal installation. The fine-mesh filter effectively retains foreign bodies such as rust particles, hemp fibers, or grains of sand. The pressure regulator protects the installation against excessively high pressure and helps reduce water consumption.

FK74CS stations are used wherever a pressure regulator is required. Thanks to the rotatable connection, the filter can be installed on both horizontal and vertical pipes, making it easier to adapt to installation conditions.

Key features and benefits

• DVGW certificate confirming device approvals,
• integrated pressure regulator with balanced seat,
• changes in inlet pressure do not affect outlet pressure,
• filtered water is supplied even during backwashing,
• the patented backwashing system operates quickly and allows the filter to be cleaned using a small amount of water,
• a special setting ring indicates when the next backwash should be performed,
• compatible with an automatic backwashing unit,
• large filtration area,
• the transparent filter bowl made of impact-resistant synthetic material makes it easy to monitor the contamination level of the cartridge,
• replaceable filter insert,
• very simple operation,
• manufactured in accordance with KIWA recommendations for drinking water.

How the backwashing filter with pressure reducer works

In everyday operation, the filter-regulating station works in two ways. On the one hand, it retains mechanical contaminants present in the water; on the other, it maintains the set pressure parameters downstream of the filter. This is particularly important in domestic and utility installations, where the stable operation of fittings, valves, and end devices affects the comfort and durability of the entire system.

An important advantage of the FK74CS-5/4AA model is that even during backwashing, the device continues to supply filtered water. This means greater convenience in use and less service disruption. Additionally, the special setting ring helps control the timing of the next backwash, simplifying ongoing maintenance.

Application

Honeywell FK74CS-5/4AA was designed for drinking water installations. It works well as an element protecting the installation against mechanical contamination and excessive pressure, helping maintain proper system operating conditions.

The device can be part of an expanded water preparation system and complements other solutions used in installations well, such as an additional water filter for specific user needs. In practice, it can cooperate with a broader treatment system, although its primary task remains mechanical filtration and pressure regulation, rather than membrane processes used in solutions such as a reverse osmosis filter, osmotic filter, reverse osmosis, or reverse osmosis system.

Installation and operation

A major advantage of this model is the filter with a rotatable connector, which increases installation flexibility. Thanks to this, installation in a horizontal or vertical position is possible, depending on the pipe layout and available space. The 5/4" connection with external thread allows the device to be matched to suitable sections of the installation.

Operation has been designed with user convenience in mind. The transparent filter bowl allows the contamination level to be assessed on an ongoing basis, and the backwashing system enables quick cleaning of the filter element. The replaceable filter insert additionally helps keep the device in good technical condition for a long time.

Why choose Honeywell FK74CS-5/4AA

It is a solution for users who expect both protection of the installation against mechanical contamination and effective pressure control. The FK74CS-5/4AA model combines simple operation, high functionality, and service convenience resulting from backwashing and the ability to monitor contamination through the transparent housing.

Thanks to its well-thought-out design, the device works well as a central element of preliminary installation protection, especially wherever reliability, easy maintenance, and stable water operating parameters matter.

Technical specification
