FK06-3/4AA Honeywell water filter with pressure reducer

Filtration and pressure control in one device

The FK06 filter belongs to the group of filters with filter screen rinsing. During normal operation, the device continuously filters water, retaining mechanical impurities on the screen, such as rust, sand, fibers, and hemp shives, as well as other fine particles present in the installation.

The built-in pressure reducer protects the installation against the negative effects of excessive pressure. At the same time, it helps reduce water consumption and improves the operating conditions of installation components located further downstream in the system.

How does filter screen rinsing work?

In the Honeywell FK06-3/4AA model, impurities retained by the filter screen and sediment collected at the bottom of the housing are discharged outside the filter by opening the ball valve located in the lower part of the housing. This solution simplifies operation and helps keep the filter ready for further use.

An important advantage of this design is that filtered water is supplied even during rinsing, which increases everyday convenience.

Key features and benefits

• Simple installation
• Setting visible directly on the adjustment knob
• Adjustment spring mounted without contact with water
• Replaceable valve insert made of high-quality materials
• Filtered water supplied even during rinsing
• The regulator balances inlet pressure without affecting outlet pressure
• Transparent impact-resistant filter bowl allows observation of the contamination level
• Replaceable filter insert and filter bowl
• All materials have a hygienic certificate
• All materials have KTW approval
• The filter meets TÜV LGA requirements for low flow noise, Group 1 without restrictions

Compact design for places with limited space

Thanks to its small dimensions, the filter can be used wherever installation space is limited. This is an important advantage in service cabinets, near meters, in technical rooms, and wherever easy integration into an existing installation matters.

The transparent, impact-resistant housing makes it easy to monitor the contamination level on an ongoing basis. The user can quickly assess when rinsing should be carried out, without the need to dismantle the device.

Application in a water installation

Honeywell FK06-3/4AA works well as a pre-filter in cold water installations where simultaneous protection against mechanical impurities and pressure stabilization are required. It is a good choice upstream of devices sensitive to sediment and pressure fluctuations, as well as an element preparing water for further treatment stages.

In practice, such a water filter can be an important protective element for fittings, taps, valves, washing machines, dishwashers, water heaters, softeners, as well as installations in which an RO filter or a complete reverse osmosis system operates.

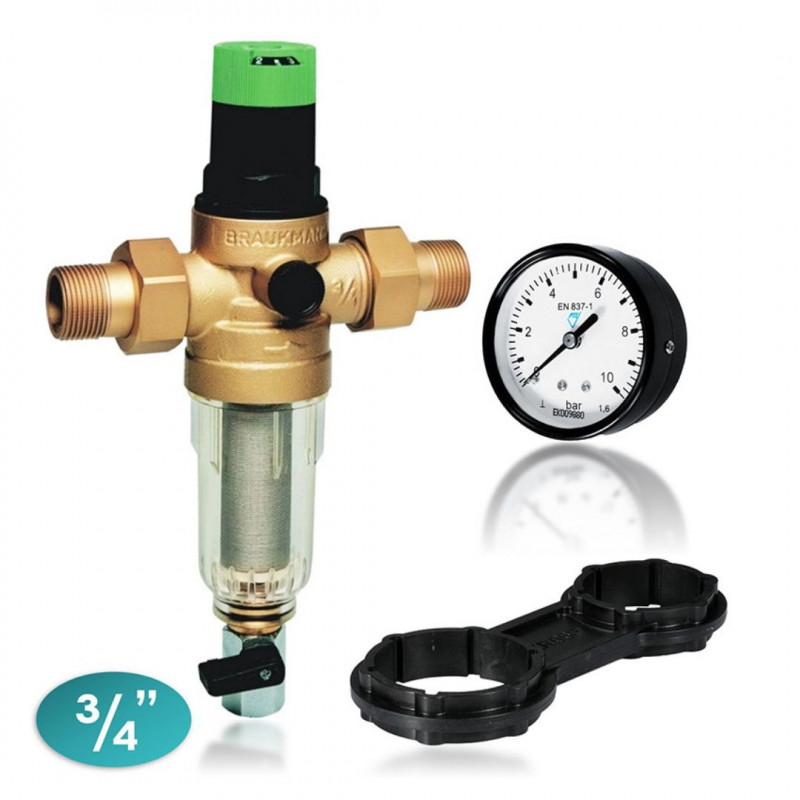

Set contents

• Honeywell FK06-3/4AA water filter with pressure reducer
• Prematlak pressure gauge
• Pressure gauge connection: 1/4" male thread
• Pressure gauge operating range: 0-10 bar

Operation and use

Daily operation of the device is convenient thanks to the combination of a filter and pressure reducer in one housing. The pressure setting is visible directly on the adjustment knob, making it easier to control the settings. Additionally, the regulator balances inlet pressure without affecting outlet pressure, which supports stable installation operation.

The design solutions used in this model increase durability and operational safety. The adjustment spring is mounted without contact with water, and the replaceable valve insert is made of high-quality materials. The device also provides the option of replacing the filter insert and the filter bowl.

Technical specifications
