On water entry
FK06-1AA Honeywell water filter with pressure reducer
Rating
Honeywell FK06-1AA is a water filter with a pressure reducer and a mesh flushing function. It stops mechanical impurities (including ru Read moreShow less
Honeywell FK06-1AA is a water filter with a pressure reducer and a mesh flushing function. It stops mechanical impurities (including rust, sand), and flushing is done by opening the ball valve at the bottom of the housing, without interrupting the supply of filtered water. The set includes a Prematlak pressure gauge 0-10 bar (external thread 1/4"). Connection: 1".
Specifications
9999 Items
- Connection size
- 1/4″
- Filtration rating
- 100 µm
- Material
- Brass
- Maximum working temperature
- 40 °C
- Model
- Honeywell FK06-1AA
- Product type
- Self-cleaning filter
View full specifications
- Technology
- Mechanical filtration
Description
Honeywell FK06-1AA is a compact water filter with a pressure reducer, pressure gauge, and filter mesh rinsing function. The device protects the installation against mechanical impurities such as rust, sand, or hemp fibers, while also stabilizing the water pressure in the system. It is a practical component that supports everyday water treatment and complements a household water filtration system, including installations where an RO filter or reverse osmosis system is used later on. Thanks to its compact dimensions, the FK06-1AA model is also suitable for locations with limited installation space.
Filtration and pressure reduction in one device
The FK06-1AA model combines two key water installation protection functions: mechanical filtration and pressure reduction. The filter operates continuously, trapping typical impurities present in the water on the filter mesh, including rust, sand, and hemp fibers. The integrated pressure regulator protects the system against the effects of excessively high pressure and helps reduce water consumption.
This solution is useful both in residential systems and wherever it is important to protect fittings, valves, household appliances, and further treatment stages. Stable incoming water parameters are also particularly important for systems such as a reverse osmosis filter, reverse osmosis, or an advanced water filtration system.
How does filter mesh rinsing work?
Honeywell FK06-1AA belongs to the category of filters with filter mesh rinsing. This means convenient operation without the need to interrupt the supply of filtered water during cleaning.
Impurities retained on the mesh and collected at the bottom of the housing are flushed out of the filter after opening the ball valve located at the bottom of the housing. A major advantage of this solution is that filtered water is supplied even during rinsing.
The filter must be installed in a horizontal position, with the bowl facing downward. This installation method is important for proper operation of the filtration system and effective impurity removal during rinsing.
Key features and benefits
- Easy installation
- Setting visible directly on the adjustment knob
- Adjustment spring mounted without contact with water
- Replaceable valve insert made of high-quality materials
- Filtered water supplied even during rinsing
- The regulator balances inlet pressure without affecting outlet pressure
- Transparent, impact-resistant filter bowl allows monitoring of the contamination level
- Replaceable filter insert and filter bowl
- All materials have a hygienic certificate
- All materials have KTW approval
- The filter meets TÜV LGA requirements for low flow noise, Group 1 without restrictions
Compact design for places with limited space
The filter's compact size allows it to be used where installation space is limited. This is an important advantage during upgrades of existing systems and in technical cabinets or recesses where every centimeter matters.
The transparent, impact-resistant filter bowl makes it easy to quickly assess the level of contamination without disassembly. This allows the user to easily monitor the operating condition of the device and plan rinsing at a convenient time.
Package contents

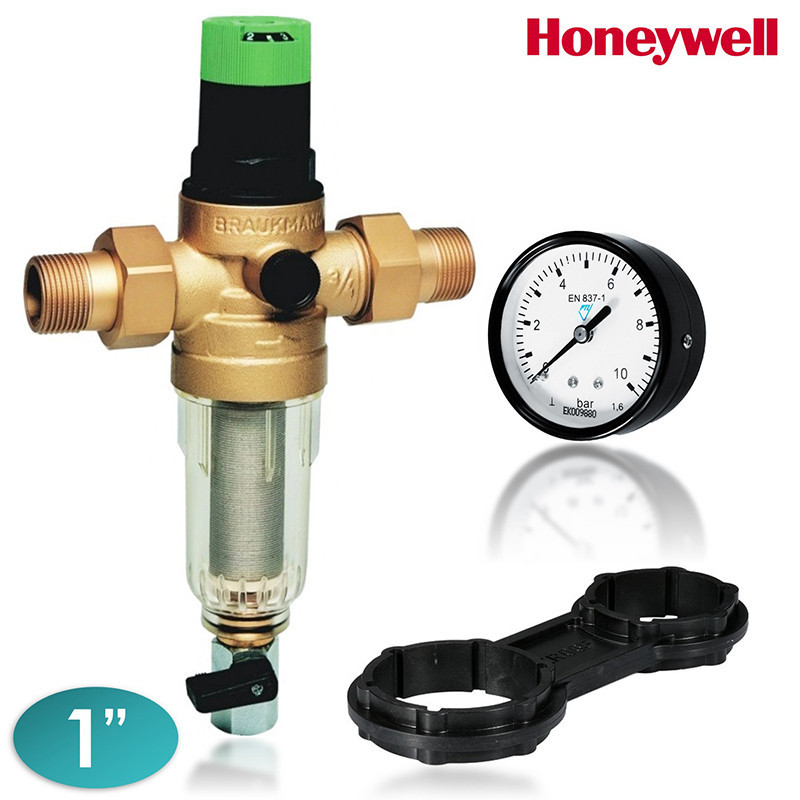

The set includes the Honeywell FK06-1AA water filter and a Prematlak pressure gauge.
- Prematlak pressure gauge
- Pressure gauge external thread: 1/4"
- Pressure gauge operating range: 0-10 bar
Why choose the Honeywell FK06-1AA?
This solution is for users who want to protect the installation against mechanical impurities while also limiting the effects of excessive pressure. Combining a filter, reducer, and pressure gauge in one device simplifies installation and everyday system monitoring.
The FK06-1AA works well as the first stage of water installation protection, supporting not only fittings and end devices but also more advanced treatment systems such as an RO filter, a reverse osmosis filter, or a complete reverse osmosis system.
Technical specifications
| Model | Honeywell FK06-1AA |
|---|---|
| Device type | Water filter with pressure reducer and filter mesh rinsing function |
| Connection type | Male thread |
| Body material | Dezincification-resistant brass |
| Spring support material | Synthetic material |
| Max. medium temperature | 40 °C |
| Static pressure | PN16 |
| Pressure setting range | 1.5-6 bar |
| Setting scale | Yes |
| Balanced seat | Yes |
| Installation position | Horizontal, with the bowl facing downward |
| Pressure gauge | Prematlak |
| Pressure gauge connection | 1/4" male thread |
| Pressure gauge operating range | 0-10 bar |
Questions
What is the Honeywell FK06-1AA used for?
It is a water filter with a pressure reducer and pressure gauge that protects the installation against mechanical impurities and the effects of excessively high pressure.
What impurities does the filter trap?
The filter traps mechanical impurities such as rust, sand, hemp fibers, and similar particles present in the water installation.
Does the water need to be shut off during filter rinsing?
No. One of the main advantages of this model is that filtered water is supplied even during filter mesh rinsing.
How is the filter mesh rinsed?
Rinsing is carried out by opening the ball valve located at the bottom of the housing. The impurities collected at the bottom are then flushed out of the filter.
How is the pressure set on the reducer?
The device has a setting scale, and the setting is visible directly on the adjustment knob. The pressure setting range is from 1.5 to 6 bar.
In what position should the filter be installed?
The filter must be installed in a horizontal position, with the bowl facing downward. This installation position ensures proper operation of the device.
Is the FK06-1AA Honeywell water filter with pressure reducer suitable for places with limited space?
Yes. The FK06-1AA has compact dimensions, so it can be used where installation space is limited.
What is included in the set?
The set includes the Honeywell FK06-1AA filter and a Prematlak pressure gauge with a 1/4" male thread and an operating range of 0-10 bar.
What connection diameter does the filter have?
The filter connection diameter is 1".
