TOP FILTER WC10-20B Filter Insert 1 pc. Mesh Water Filter

Mechanical mesh insert for effective filtration of solid contaminants

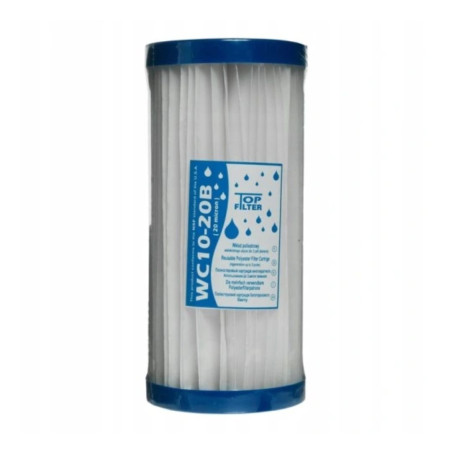

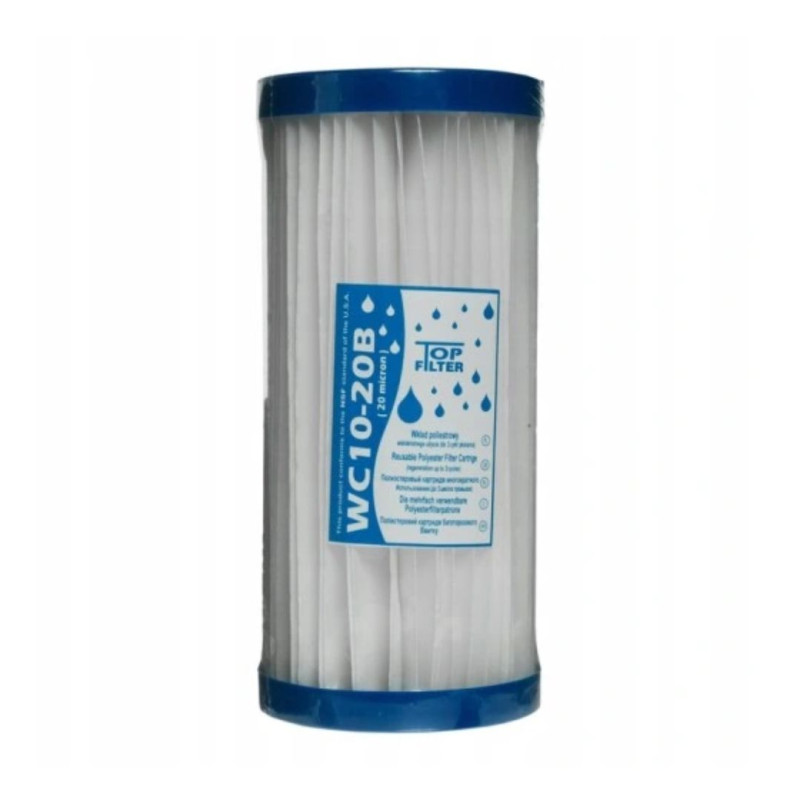

TOP FILTER WC10-20B is a reusable mechanical insert with a pleated design, made of polyester. Its task is to capture solid contaminants from water that can impair the performance of the installation and downstream filtration devices.

The insert effectively removes:

• sand,
• silt,
• sediment,
• rust.

With a filtration rating of 20 microns, the WC10-20B model works well as a pre-filtration stage wherever protection of fixtures, filter housings, and other installation components matters. Such an insert can also be a good addition to systems using an osmotic filter, reverse osmosis filter, or a more advanced reverse osmosis system.

Pleated construction and reusable operation

The polyester pleated structure increases the working surface of the insert, which supports effective capture of mechanical contaminants while maintaining convenient operation. The WC10-20B model is reusable, which means it does not need to be replaced immediately after the first signs of clogging.

The insert can be rinsed up to 3 times to extend its service life. This is a practical solution for users who want to maintain effective mechanical filtration while reducing the frequency of purchasing new consumables.

Application of the TOP FILTER WC10-20B insert

The TOP FILTER WC10-20B mesh insert is intended for mechanical water filtration in 10" housings with a 4½" diameter. This is a suitable solution wherever the presence of solid particles in water needs to be reduced and downstream installation components protected.

It can operate as a standalone mechanical insert or as the first stage of filtration before finer media. In practice, this means better equipment protection and greater convenience in operating the entire filtration system.

Key benefits

• mechanical filtration of solid contaminants from water,
• trapping of sand, silt, sediment, and rust,
• 20-micron filtration precision,
• pleated polyester construction,
• reusable use,
• ability to be rinsed up to 3 times,
• compatibility with 10" housings with a 4½" diameter,
• practical support for installations and subsequent stages of water filtration.

Operation and use

To maintain filtration efficiency, it is worth regularly checking the condition of the insert and responding to visible contamination of the filter surface or a drop in flow rate. The insert is designed to operate within a temperature range of 2 to 42°C.

The ability to rinse it up to 3 times extends the service period, but once the filtration capacity is exhausted or in the case of permanent contamination, it should be replaced with a new element. In applications with more heavily contaminated water, the condition of the insert should be checked more frequently.

* Service life depends on the level of water contamination.

Available filtration variants

If the installation requires finer mechanical filtration, 5-micron filtration inserts are also available. The choice of the appropriate grade should be matched to the water quality and the requirements of the specific system.
