FHPR1-3V_R Self-Cleaning Water Filter for the Whole House

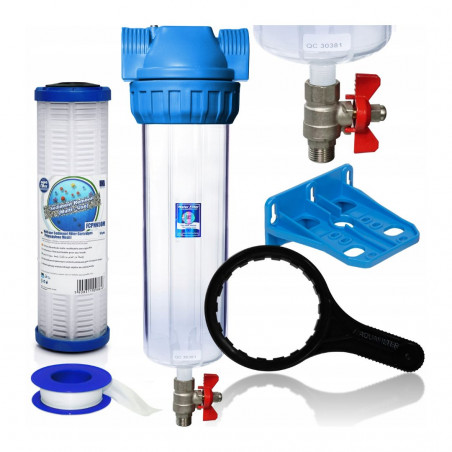

Filtration set consisting of:

• filter housing FHPR1-3V

• reusable cartridge FCPNN50M

• mounting plate for attaching the filter to the wall

• screws for securing the filter to the plate

• wrench for unscrewing the housing

• drain valve

• sealing tape

Thanks to the three-element construction of the Aquafilter FHPR1-3V, the housing is ideally suited for installation in places where the total height necessary for the operation of the filter is important - this is because to unscrew the filter cover, it is not unscrewed down from the head, as is the case with typical filter housings, but only the nut is unscrewed. The filter is intended for cold water and pressure up to 6 bar.

The high-quality filter housing features brass threads with a diameter of 1"

The housing consists of three elements:

• filter head, screwed onto the cold water pipe

• filter cover, in which the filter cartridge is placed

• nut (collar) for tightening the cover to the head

At the bottom of the filter cover, there is a drain valve that allows flushing the cartridge inside under pressure from the water system.

If a mesh or accordion cartridge is placed in the housing, the impurities collected by it are flushed under pressure into a designated container or through a hose connected to the drain valve.

FCPNN50M - mesh cartridge 10 inches 50 microns

Efficient sediment cartridge used for treating cold water. Installed in typical housings for 10" cartridges (also for 9 7/8" cartridges).

The nylon mesh captures impurities the size of sand, preventing them from entering the further part of the water system. The cartridge practically does not cause pressure drops - the resistance to water is minimal.

In practice, this is an ideal solution that allows for automatic flushing of the cartridge without the need to unscrew it.

Technical parameters of the filter:

• Height: 33 cm

• Water pressure: up to 6 bar

• Water temperature: 2 - 42 °C

• Diameter: 11 cm

• Thread diameter: 1 inch

Technical parameters of the cartridge:

• Height: 9 7/8 inches / also 10 inches (about 25 cm)

• Diameter: 2 1/2 inches (about 6 - 6.5 cm)

• Flow rate: up to 20 liters / minute

• Filtration accuracy: up to 50 microns

• Pressure drop: 0.2 - 0.4 bar
