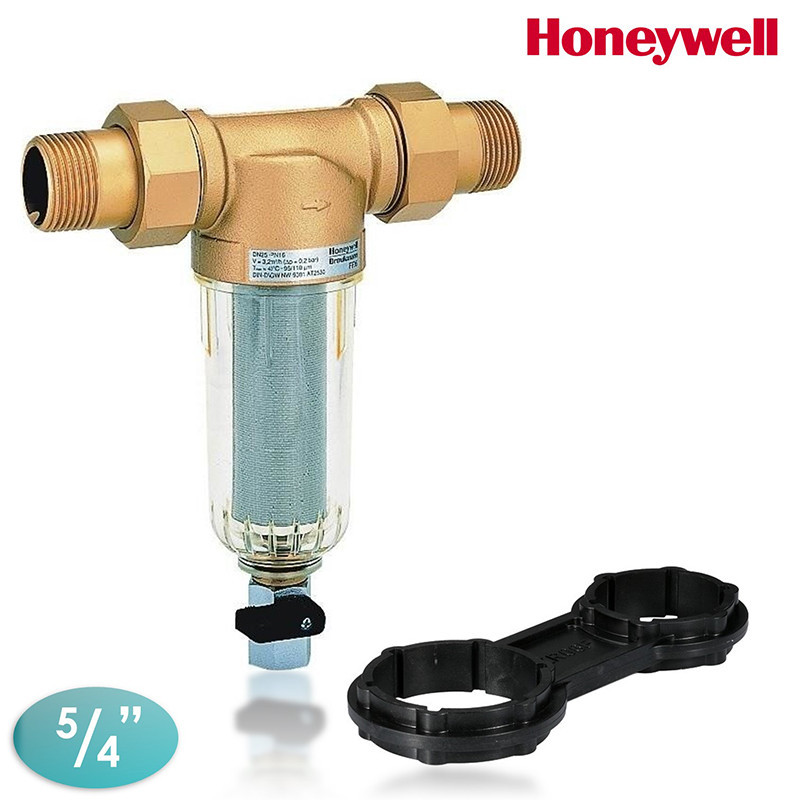

FF06-5/4AA Honeywell mechanical water filter

Original Honeywell FF06 sediment filter, designed for preliminary water filtration at main connections. The filter is equipped with a stainless steel mesh that traps mechanical impurities of 100 microns and larger.

Connection diameter: 5/4"

The Honeywell brand is known for its robust water filter constructions. Filters from this company have been installed for many years in single-family homes, apartments, etc., and larger models in industrial water filtration systems.

Application:

The FF06 filter belongs to the filters with the so-called mesh backwashing. This filter provides continuous water filtration by trapping impurities such as rust, sand, hemp fibers, etc. The impurities accumulate at the bottom of the transparent housing and can be easily removed by briefly opening the ball valve. Due to its small size, the filter can be installed where there is little space for installation.

Typical applications

The FF06 filter can be installed in all types of systems. It is especially effective in domestic installations, allowing compliance with applicable standards and in selected industrial applications. The FF06 filter is installed: In systems where devices require protection against impurities In systems where a pressure regulator is not required (static pressure up to 5 bar) In systems where a pressure regulator is installed but there is no possibility to equip it with a filter.

Scope of applications:

Medium: Water

The filter is designed for drinking water. In the case of use in technological installations, its efficiency should be checked individually.

Operating principle:

As water enters the filter, it flows into the filtration chamber and from the outside into the filter cartridge, which traps impurities on its outer surface. Opening the ball valve causes the filter cartridge to be backwashed and impurities to be removed outside while ensuring the supply of filtered water.

Features:

• Filter certified according to DIN/DVGW
• Easy installation
• Continuous supply of filtered water (also during filter backwashing)
• Transparent filter housing made of impact-resistant synthetic material allowing easy monitoring of the degree of contamination of the cartridge
• Easy replacement of the filter cartridge and filter housing
• Body with internal and external threads
• Product meets KTW requirements for drinking water

Construction

The FF06 filter consists of:

• Body with internal and external threads
• Threaded connectors
• Fine mesh filter cartridge
• Transparent housing
• Ball valve
• Open-end wrench for disassembly and assembly of the filter housing

Materials

• Housing made of brass (resistant to dezincification)
• Threaded connectors made of brass
• Filter cartridge made of stainless steel
• Filter housing made of impact-resistant, transparent synthetic material

Technical data

• Mounting position Horizontal, with the filtration chamber facing down
• Working pressure max. 16 bar
• Working temperature max. 40°C
• Connection diameter 5/4"
