FF06-1AA Honeywell mechanical water filter

Honeywell FF06-1AA mechanical filter for water installation protection

The FF06-1AA Honeywell is an original sediment filter designed for pre-filtration of water at main connections. Its task is to stop mechanical impurities before they enter fittings, appliances, and further treatment stages.

The fine stainless steel mesh insert captures contaminants of 100 microns and larger. In practice, this means effective protection against deposits such as rust, sand, or hemp fibers. This is especially important in installations where equipment requiring protection against solid particles is in operation.

Thanks to its compact dimensions, the filter can also be installed where installation space is limited. It works well both in single-family houses and apartments, as well as in selected industrial applications.

Application and typical installation locations

The Honeywell FF06 filter can be installed in all types of water systems. It performs particularly well in domestic installations, where it helps maintain proper operation of fittings and appliances and reduces the impact of mechanical impurities on the entire installation.

The FF06-1AA model is used especially:

• in installations where equipment requiring protection against contaminants is present,
• in installations where the use of a pressure regulator is not required at static pressure up to 5 bar,
• in installations where a pressure regulator is installed but cannot be equipped with a filter.

The filter is designed for use with drinking water. In the case of use in process installations, its suitability for the specific medium and operating conditions should always be assessed.

How the filter with rinsing function works

The FF06 belongs to filters with rinsing of the filter mesh. Water flows into the filter chamber and then reaches the filter insert from the outside. Contaminants are retained on the outer surface of the mesh, so filtered water is supplied to the installation.

Deposits collect at the bottom of the transparent housing. They are removed by briefly opening the ball valve, which allows contaminants to be flushed out. An important advantage of this solution is that the continuous supply of filtered water is maintained even during filter rinsing.

Key features and benefits

• filter certified according to DIN/DVGW,
• easy installation,
• continuous supply of filtered water, also during filter rinsing,
• transparent filter housing made of impact-resistant synthetic material, allowing simple inspection of the insert contamination level,
• easy replacement of the filter insert and filter housing,
• body with internal and external thread,
• the product meets KTW requirements for drinking water.

Thanks to this design, the filter can serve as effective preliminary protection for the installation. It is a solution often chosen before further treatment stages when the system includes an additional filter cartridge, a reverse osmosis filter, an osmotic filter, or a more extensive reverse osmosis system. Removing larger mechanical contaminants at the beginning of the installation helps reduce wear on subsequent filtration components.

Device construction

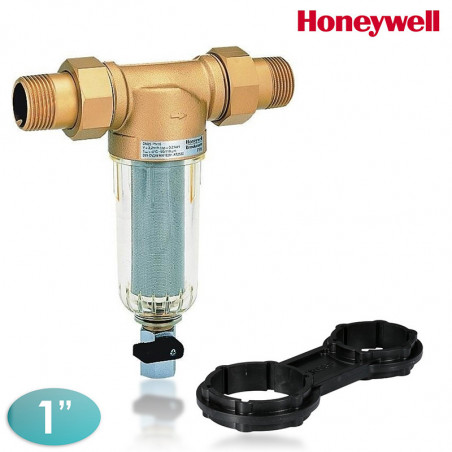

The FF06 filter consists of the following elements:

• body with internal and external thread,
• threaded connectors,
• fine mesh filter insert,
• transparent housing,
• ball valve,
• ring spanner for dismantling and assembling the filter housing.

Materials

• housing made of dezincification-resistant brass,
• threaded connectors made of brass,
• filter insert made of stainless steel,
• filter housing made of impact-resistant, transparent synthetic material.

The use of durable materials translates into operational resistance and stable performance in typical drinking water installations. The transparent cover additionally facilitates ongoing assessment of the contamination level and cleaning planning.

Operation and everyday use

The filter operation has been designed to minimize interruptions in installation operation. Contaminants retained on the mesh and deposits collected in the lower part of the housing can be removed by briefly opening the ball valve. This cleaning method is quick and convenient, while allowing filtration efficiency to be maintained without complicated service procedures.

The transparent housing allows visual inspection of the contamination level. When servicing is required, the design allows easy replacement of the filter insert and filter housing.

Additional important information

• Connection diameter 1"
