Big Blue 20-inch cartridges

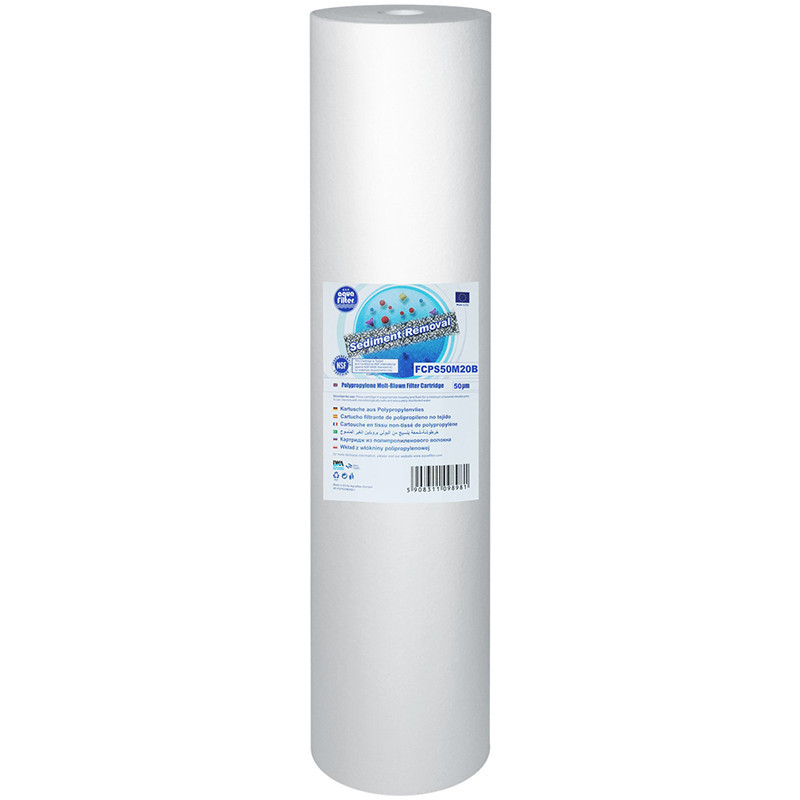

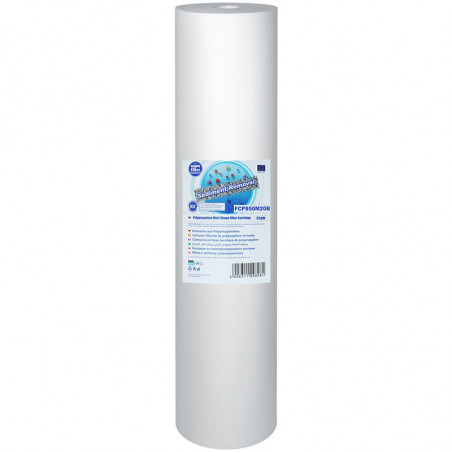

FCPS50M20B Aquafilter 50 micron BIG BLUE 20" cartridge
Rating
Aquafilter FCPS50M20B sediment filter for Big Blue 20" housings. The foam insert made of polypropylene non-woven fabric effectively rem Read moreShow less
Aquafilter FCPS50M20B sediment filter for Big Blue 20" housings. The foam insert made of polypropylene non-woven fabric effectively removes solid contaminants from water, such as sand, silt, sludge, rust, and suspensions. It filters through the entire structure of the insert, ensuring good filtration with low pressure drop. Designed for cold water filtration. NSF certification and PZH approval.
Benefits
- Captures sand, sediment and rust particles
- Protects subsequent filtration stages
Specifications
FCPS50M20B
In stock
- Temperatura pracy
- 2°C - 45°C
- Żywotność
- do 6 miesięcy*
- Wydajność
- do 60 l/min
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
- Cartridge type
- Foam sediment, Sediment
View full specifications
- Compatibility
- Big Blue 20"
- Filtration rating
- 50 µm
- Housing standard
- Big Blue 20″
- Material
- Polypropylene
- Filter media
- Polypropylene
- Model
- FCPS50M20B
- Product type
- Filter cartridge
- Reusable
- No
Description
FCPS50M20B Aquafilter is a 50-micron sediment filter cartridge for Big Blue 20" housings, designed for effective cold water filtration. Made of polypropylene nonwoven fabric, it removes mechanical impurities such as sand, silt, sludge, rust, and suspended solids, and thanks to filtration through the entire cartridge structure, it provides high efficiency with low pressure drop. It is a practical water filter cartridge for domestic and utility water filtration and water treatment systems wherever reliable protection of installations and equipment is important.
Big Blue 20" sediment cartridge for effective mechanical filtration
Aquafilter FCPS50M20B is a foam sediment cartridge designed for use in 20” Big Blue housings. Its purpose is to retain fine fractions of solid contaminants present in water, which helps improve pre-filtration quality and protect downstream installation components.
The cartridge is made of polypropylene nonwoven fabric. The proper forming of the material ensures that water is filtered through the entire cartridge structure, which translates into effective sediment capture while maintaining good flow parameters.
What contaminants does the FCPS50M20B cartridge remove?
The cartridge is designed to remove mechanical impurities found in cold water. It effectively retains primarily:
- sand,
- silt,
- sludge,
- rust,
- suspended solids.
As a result, it can help protect fittings, the water installation, and subsequent filtration stages when operating as part of a larger water treatment system.
Key advantages of the cartridge
- Removes mechanical impurities (rust, sand, silt, suspended solids)
- Provides excellent filtration with low pressure drop
- Holds PZH approval
- Manufactured in the EU
Why does filtration through the entire cartridge structure matter?
Cartridges made of polypropylene nonwoven fabric are valued for uniform operation throughout the entire volume of the filtration material. In practice, this means that contaminants are not trapped only on the surface, but are captured throughout the entire cartridge structure. This design supports efficient mechanical filtration and helps maintain a low pressure drop during everyday use.
This is particularly important in installations where the water filter is intended to operate steadily as a preliminary stage before subsequent devices or as a standalone protective element of the water filtration system.
Application
The FCPS50M20B model has been designed for use with 20” Big Blue housings and for cold water filtration. It performs well wherever mechanical sediment must be removed from water supplied to an installation.
It can be used as a pre-filter cartridge in domestic and utility systems, also as a stage preceding more precise water treatment steps. In practice, this type of filter cartridge is often used before solutions such as an RO filter, reverse osmosis filter, reverse osmosis unit, or an advanced reverse osmosis system, because it helps reduce the flow of solid particles to subsequent filtration stages.
The cartridge is intended for cold water filtration. Cartridge service life depends on water quality and the amount of retained contaminants, so the replacement frequency should be adjusted to actual operating conditions.
Certificates and build quality
The cartridge holds NSF certification and PZH approval. This is important confirmation of material quality and the product’s compliance with requirements for components used in water filtration. An additional advantage is that it is manufactured in the EU.
Technical specification
| Model | FCPS50M20B |
|---|---|
| Brand | Aquafilter |
| Product type | Sediment cartridge (foam) |
| Material | Polypropylene nonwoven fabric |
| Filtration rating | 50 µm |
| Compatible housings | Big Blue 20" housings |
| Intended use | Cold water filtration |
| Removed contaminants | Sand, sludge, silt, rust, suspended solids |
| Filtration method | Filtration through the entire cartridge structure |
| Operational advantage | Low pressure drop |
| Certificates and approvals | NSF, PZH |
| Place of manufacture | EU |
Questions
Which housings is the FCPS50M20B cartridge compatible with?
The cartridge is designed for use with 20” Big Blue housings.
What contaminants does this cartridge remove?
The FCPS50M20B model removes mechanical impurities such as sand, silt, sludge, rust, and suspended solids.
Is this cartridge suitable for hot water?
No. The product is designed for cold water filtration.
What does a 50-micron filtration rating mean?
A 50 µm rating means that the cartridge is intended for mechanical filtration of larger and fine solid particles present in water, helping protect the installation and subsequent treatment stages.
How does filtration through the entire cartridge structure work?
Water flows through the entire volume of the polypropylene nonwoven fabric, and contaminants are retained not only on the surface but also inside the structure of the filtration material.
Does the cartridge cause a large pressure drop?
No. One of its key advantages is effective filtration with a low pressure drop.
How often should the cartridge be replaced?
Cartridge service life depends on water quality and the amount of retained contaminants. The more sediment there is in the water, the more frequently replacement may be required.
Can the cartridge work as a pre-filter before a reverse osmosis system?
Yes, sediment cartridges of this type are often used as a preliminary stage that reduces the flow of mechanical impurities to further filtration components, including solutions such as a reverse osmosis filter or reverse osmosis system.
Does the product have confirmed quality and safety?
Yes. The cartridge holds NSF certification and PZH approval.
