Big Blue 20-inch cartridges

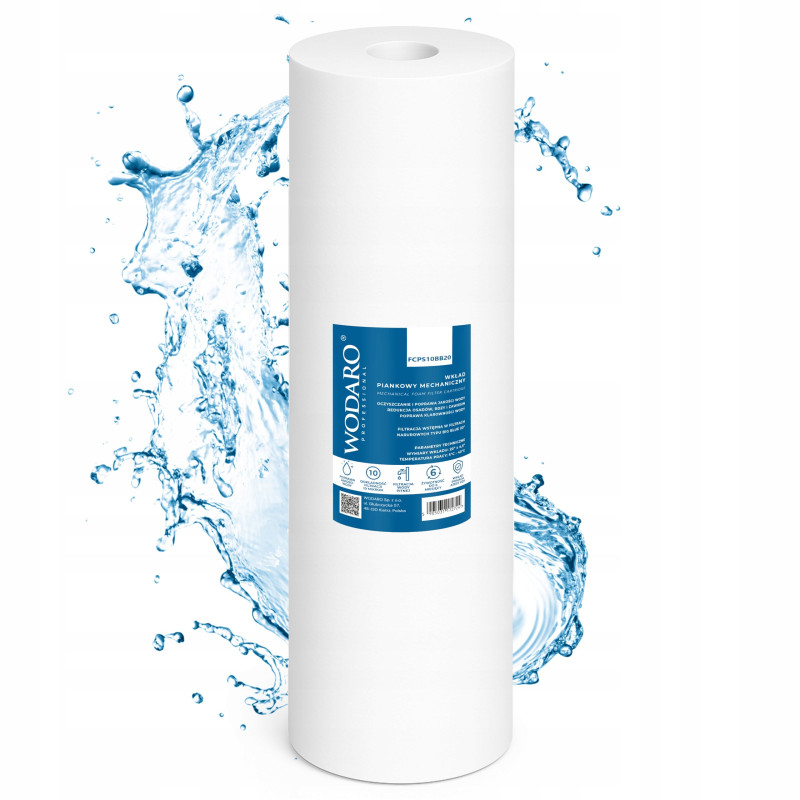

FCPS10BB20 WodaRO BIG BLUE 20" foam cartridge 10 micron
Rating
FCPS10BB20 foam insert for waterRO BIG BLUE 20" for mechanical water filtration. Effectively traps sediments and fine solid impurities Read moreShow less
FCPS10BB20 foam insert for waterRO BIG BLUE 20" for mechanical water filtration. Effectively traps sediments and fine solid impurities (e.g., silt, sludge) from well water and tap water. Filtration accuracy of 10 microns. Used as the first stage of protection for installations and specialized inserts (carbon, softening, de-ironing). Fits 20" BIG BLUE type housings.
Benefits
- Captures sand, sediment and rust particles
- Protects subsequent filtration stages
Specifications
FCPS10BB20
In stock
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
- Cartridge type
- Foam sediment, Sediment
- Compatibility
- Big Blue 20"
- Filtration rating
- 10 µm
- Housing standard
- Big Blue 20″
View full specifications
- Service life
- 6 months
- Material
- Polypropylene
- Filter media
- Polypropylene
- Model
- FCPS10BB20 WodaRO
- Product type
- Filter cartridge
- Reusable
- No
Description
FCPS10BB20 WodaRO is a foam filter cartridge BIG BLUE 20" designed for mechanical water filtration. It effectively retains sediment, silt, sludge and other fine solid contaminants present in well water and tap water. With a filtration accuracy of 10 microns, the cartridge works well as the first stage of protection for installations, fittings and subsequent elements of a water filtration system, such as carbon cartridges, softening cartridges, iron removal cartridges, as well as selected systems such as a water filter, reverse osmosis filter or reverse osmosis system.
Effective mechanical filtration in BIG BLUE 20" housings
The cartridge from the FCPS WodaRO BIG BLUE series was designed to remove mechanical contaminants, also referred to as sedimentary contaminants. Its task is to capture fine solid particles that may occur both in water from a private well and in tap water.
This is a practical solution wherever water may contain suspended particles formed naturally or entering the installation during transmission. The cartridge helps limit the passage of such contaminants further into the system, supporting more stable and safer water treatment.
What contaminants does the FCPS10BB20 cartridge remove?
The FCPS10BB20 model is designed to retain fine solid contaminants present in water. In practice, this means effective reduction of typical mechanical sediment such as:
- silt,
- sludge,
- sedimentary deposits,
- fine solid particles appearing in well water,
- mechanical contaminants present in tap water that may enter it during transmission.
The 10-micron accuracy makes the cartridge a good solution as an initial stage of protection for the installation and further treatment stages.
Construction and material
The cartridge is made of high-quality foam, i.e. polypropylene nonwoven fabric. The material is formed in a way that ensures water filtration through the entire structure of the cartridge, not only on its surface.
Such a design supports effective capture of mechanical contaminants and allows the cartridge to serve as an efficient pre-filter in various filtration systems.
Use in installations and filtration systems
The FCPS10BB20 foam cartridge is used, among others, in under-sink and inline filters. It most often operates as the first stage of mechanical filtration, protecting the system’s downstream components.
It is particularly recommended as protection for:
- carbon cartridges,
- softening cartridges,
- iron removal cartridges,
- water installations,
- fittings.
In practice, this means a lower load on subsequent filtration stages and better operating conditions for water treatment devices. Such a filter cartridge can also be a valuable element in systems where reverse osmosis or an osmosis filter operates, as it limits the inflow of sediments to more sensitive filter media.
Housing compatibility
The FCPS10BB20 model is designed for 20" BIG BLUE housings. The standard size makes it easy to use the cartridge in popular housings used in domestic and utility filtration systems.
The service life of the cartridge depends on the quality of the incoming water and the amount of contaminants retained. In the case of heavier sediment load, replacement may be necessary earlier than after the maximum declared service life.
Why choose this cartridge?
- provides effective mechanical water filtration,
- retains silt, sludge and fine sediments,
- protects the water installation and fittings,
- serves as protection for specialized cartridges,
- filters water through the entire structure of the cartridge,
- fits BIG BLUE 20" housings,
- works well in well water and tap water.
Technical specification
| Parameter | Value |
|---|---|
| Model | FCPS10BB20 WodaRO |
| Cartridge type | Foam cartridge for mechanical filtration |
| Series / standard | BIG BLUE |
| Cartridge height | 20'' |
| Cartridge diameter | 4.5" |
| Filtration accuracy | 10 microns |
| Material | Foam / polypropylene nonwoven fabric |
| Service life | Up to 6 months* |
| Pressure drop | 0.2 - 0.4 bar |
| Intended for | 20" BIG BLUE housings |
| Application | Mechanical filtration of well water and tap water |
FAQ
What is the FCPS10BB20 WodaRO cartridge used for?
It is a cartridge for mechanical water filtration whose task is to retain fine solid contaminants such as silt, sludge and other sedimentary deposits.
Which housings does this cartridge fit?
The cartridge is designed for 20" BIG BLUE housings.
What is the filtration accuracy of the FCPS10BB20 WodaRO foam cartridge BIG BLUE 20" 10 micron?
The filtration accuracy is 10 microns, which allows the cartridge to effectively capture fine mechanical contaminants present in water.
What material is the cartridge made of?
The FCPS10BB20 model is made of high-quality foam, i.e. polypropylene nonwoven fabric, formed so that water is filtered through the entire structure of the cartridge.
Where can this filter cartridge be used?
The cartridge is used, among others, in under-sink and inline filters. It can work as the first stage of protection for the installation and subsequent filter media.
Is this cartridge suitable for well water?
Yes, the cartridge is suitable for filtering water from a private well, especially where fine mechanical contaminants such as silt or sludge are present.
Can it also be used for tap water?
Yes, the cartridge also works well in tap water, where it can retain mechanical contaminants entering the water during transmission.
How long can the cartridge be used?
The expected service life is up to 6 months, however the actual operating time depends on the quality of the incoming water and the amount of contaminants retained.
What function does this cartridge serve in an advanced water filtration system?
It most often operates as a pre-filter cartridge that protects the installation, fittings and subsequent treatment stages, for example carbon cartridges, softening cartridges, iron removal cartridges, as well as more sensitive elements of filtration systems.
Compatible with 5
Compatible devices and housings.
- Big Blue 20" Double O-ring Filter Housing
- FH20B1-B-WB Aquafilter big blue 20" filter housing Reference: FH20B1-B-WB
- HHBB20A Aquafilter double big blue 20" water filter Reference: HHBB20A
- HHBB20B Aquafilter triple big blue water filter 20" Reference: HHBB20B
- WODARO HBB20 BIG BLUE Water Filter Treatment Station Reference: HBB20
