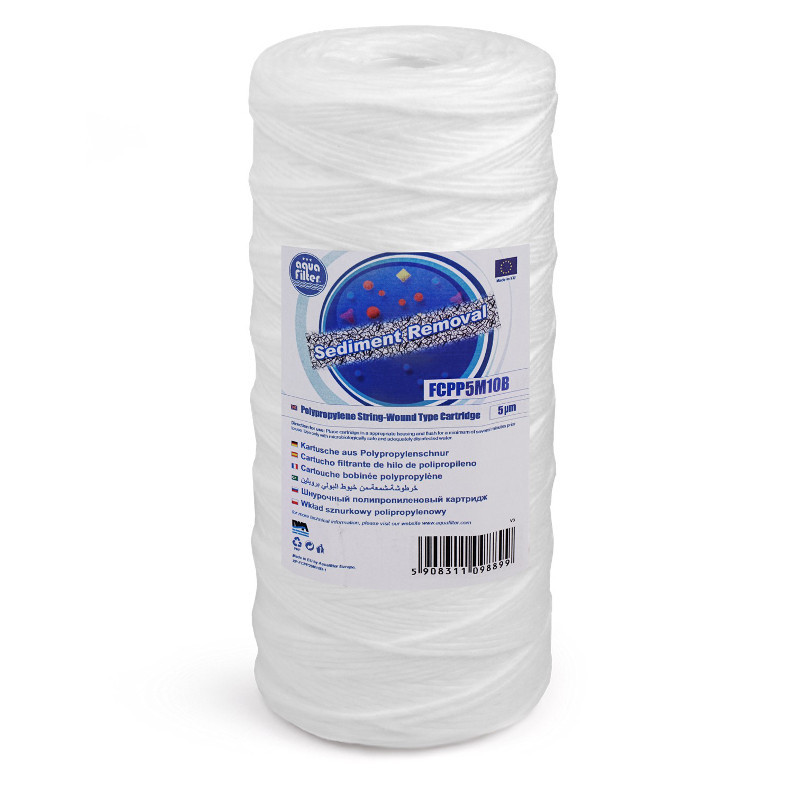

FCPP5M10B Aquafilter 5 micron BIG BLUE 10" cartridge

Mechanical cartridge for effective cold water filtration

Aquafilter FCPP5M10B is a cartridge made of polypropylene string, designed to remove mechanical impurities from water. Its purpose is to capture solid particles that may reduce water quality and put strain on subsequent filtration stages.

The cartridge traps typical sediment present in the water system, such as sand, rust, and silt, with a filtration accuracy of up to 5 µm. Thanks to this, it performs well wherever effective pre-filtration is needed before further water purification.

What is the Aquafilter FCPP5M10B cartridge used for?

The FCPP5M10B model is intended for cold water and serves as the first filtration stage. It is an important component of any system in which subsequent cartridges or devices require protection against mechanical impurities.

Using this cartridge as a pre-filtration stage helps protect subsequent filtration media, including:

• carbon cartridges,
• softening cartridges,
• iron removal cartridges.

This solution is particularly beneficial in residential and utility installations, where mechanical filtration supports more advanced purification processes, as well as systems such as a reverse osmosis filter, an RO filter, or a complete reverse osmosis system.

Key benefits in everyday use

• effective removal of mechanical impurities down to 5 microns,
• protection of subsequent filter cartridges against premature wear,
• operation in cold water installations,
• fit for 10-inch BIG BLUE type housings,
• high flow capacity, suitable for applications requiring efficient filtration,
• easy integration with an existing water filtration system.

Compatibility and application

The cartridge is intended for use in 10-inch BIG BLUE type housings. Its standard size means it can be used in many popular housings designed for efficient mechanical filtration.

With a diameter of 4 1/2 inches and a height of 10 inches, the cartridge is adapted for operation in large housings, where not only filtration accuracy but also adequate water flow matters. It is a practical choice both as a standalone mechanical filter and as part of a larger treatment system.

Operation and cartridge replacement

The cartridge lifespan is up to 18,000 liters or approximately 3–6 months of use. The actual service life depends on the quality of the feed water and the amount of trapped sediment.

In the case of more heavily contaminated water, the cartridge may require earlier replacement. Regular monitoring of wear allows proper filtration performance to be maintained and effectively protects subsequent system components.
