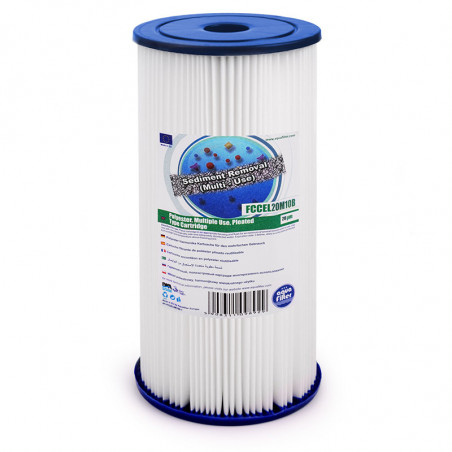

FCCEL20M10B Aquafilter big blue 10" pleated filter cartridge

BIG BLUE 10" pleated cartridge for mechanical filtration

The FCCEL20M10B model belongs to the series of reusable mechanical pleated cartridges. It was designed to remove solid contaminants present in water that can reduce its usable quality and put additional strain on subsequent components of the filtration system.

The 20-micron filtration rating effectively reduces the presence of typical mechanical impurities. This makes the cartridge a good choice wherever the protection of fittings, devices, and further filtration stages is important.

Key advantages

• removes mechanical impurities such as rust, sand, silt, and suspended solids,
• used mainly as the first stage of filtration for drinking water and general-purpose water,
• reusable cartridge,
• the pleated construction provides greater filtration efficiency,
• delivers excellent filtration with low pressure drop,
• fits BIG BLUE 10" housings.

How does the FCCEL20M10B cartridge work?

The mechanical cartridge retains solid particles flowing with the water. Its function is to capture contaminants such as sand, rust, silt, and suspended solids before they reach further components of the installation. This is particularly important in systems where mechanical filtration is the first stage of water purification.

The pleated design increases the filtration surface area compared to simpler solutions, resulting in greater cartridge efficiency. At the same time, this design helps maintain a low pressure drop, so water flow remains more stable during operation.

Applications

FCCEL20M10B is primarily used as a pre-filtration cartridge for drinking water and general-purpose water. It can operate in residential and utility installations wherever effective separation of mechanical impurities is needed before further treatment stages.

As the first filtration stage, it helps protect subsequent cartridges and devices. In practice, it complements an advanced water filtration system, as well as installations where a reverse osmosis filter, reverse osmosis, or a complete reverse osmosis system is used further downstream.

Operation and reuse

One of the key advantages of this model is its reusability. Once dirty, the cartridge should be washed and rinsed under running water, and then reinstalled. This solution makes everyday use easier and may help reduce how often a new cartridge needs to be purchased.

FCCEL20M10B can be used up to 3 times. The cartridge lifespan is approximately 3-6 months until the first rinsing, although the actual service life depends on the quality of the incoming water and the amount of contaminants retained.

When should the cartridge be replaced or rinsed?

• when a noticeable drop in flow performance is observed,
• when the cartridge is clearly contaminated with mechanical sediment,
• when the typical service period resulting from the installation's operating conditions has elapsed,
• when the expected filtration efficiency does not return after rinsing.

Compatibility and fit

The cartridge fits BIG BLUE 10" housings. The 10"BB size means it is designed for popular housings used in mechanical filtration with increased flow capacity. It is a practical choice for users looking for an effective pre-filtration cartridge for larger inline housings.
