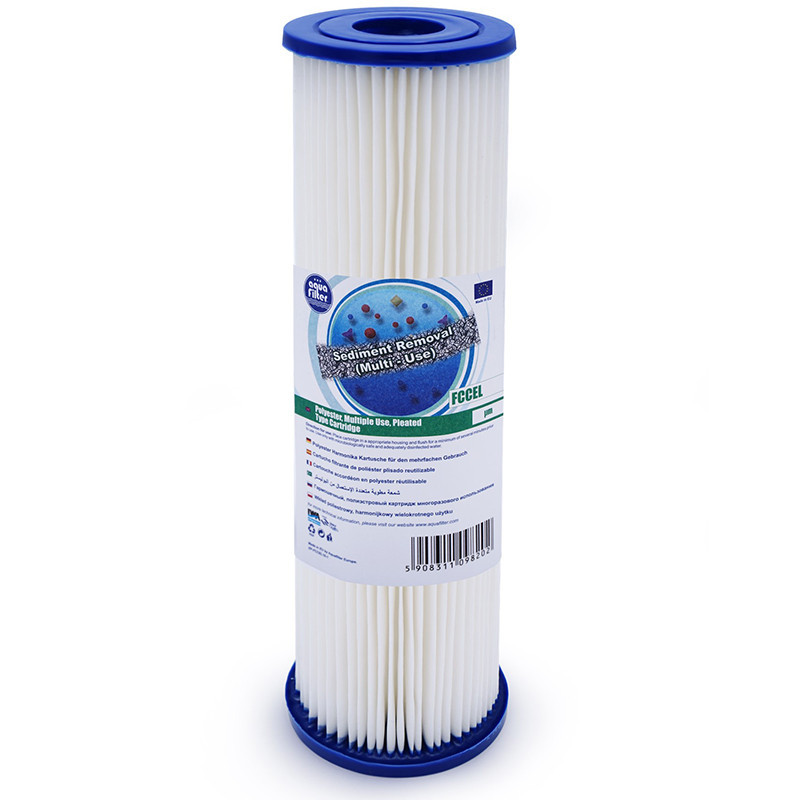

FCCEL20 Aquafilter accordion cartridge

Mechanical cartridge for the first stage of filtration

Aquafilter FCCEL20 is made of corrugated cellulose coated with polyester. This design allows it to effectively capture typical mechanical impurities present in water while supporting stable operation of the filtration system.

The cartridge is mainly used as the first stage of filtration for drinking water and utility water. Its task is to capture solid contaminants at the very beginning of the process, which helps protect subsequent installation components and improves water use comfort.

What does the FCCEL20 cartridge remove?

The mechanical accordion cartridge is designed to retain contaminants such as:

• rust,
• sand,
• silt,
• suspended solids.

As a result, water can be effectively cleaned of visible and invisible solid particles even before the next filtration stages. This is especially important where the system operates in multiple stages, for example as a classic water filter or as part of a more advanced water preparation system for household use.

Key advantages of the Aquafilter accordion cartridge

• Removes mechanical impurities (rust, sand, silt, suspended solids).
• Mainly used as the first stage of filtration for drinking water and utility water.
• Reusable cartridge.
• The accordion design provides greater filtration efficiency.
• Provides excellent filtration with a low pressure drop.
• Fits most 10' housings for hot water available on the market.

Why does the accordion design matter?

The accordion structure of the cartridge increases the working surface area of the filter material. In practice, this translates into higher filtration efficiency and efficient cartridge operation in everyday use. An additional benefit is low flow resistance, so the cartridge provides effective filtration with a low pressure drop.

This is an important feature both in simple domestic installations and in systems where the first stage is intended to prepare water for further purification.

Regeneration and multiple use

One of the main advantages of the FCCEL20 model is the possibility of regeneration. The cartridge can be rinsed under running water and then reused. This solution makes operation easier and may reduce replacement frequency compared with disposable cartridges.

Application in home filtration systems

The Aquafilter FCCEL20 cartridge is used primarily for pre-filtration. It can operate in systems preparing water for everyday use, supporting the protection of fittings, appliances, and subsequent treatment stages.

It is a suitable solution for users who are building or servicing a water filtration system and want to effectively remove mechanical impurities right at the inlet. This type of pre-filtration is also often an important element of installations working with more advanced technologies, such as a reverse osmosis filter, osmotic filter, or reverse osmosis system, because it limits the flow of solid particles to subsequent components.

Fit and compatibility

The FCCEL20 model fits most 10' housings for hot water available on the market. This makes it easier to use in many popular filter housings and allows it to be conveniently integrated into an existing installation.
