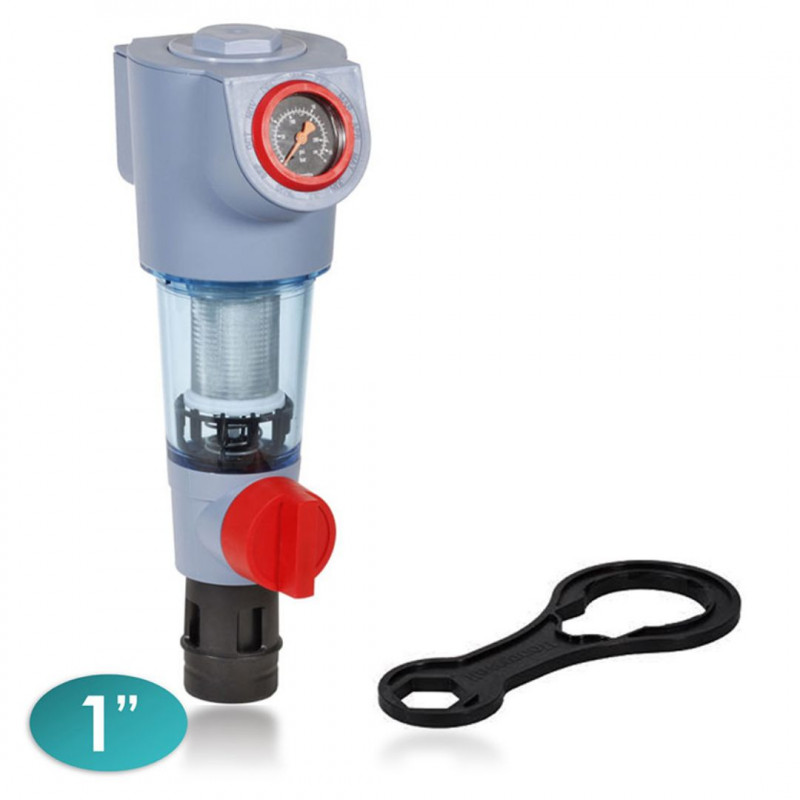

F74CS-1AA Honeywell mechanical water filter
F74CS-1
4019837122171
Rating
The Honeywell F74CS-1AA is a mechanical water filter with backwashing, ensuring the supply of filtered water even during the cleaning of the mesh. The fine mesh insert of 100 microns captures, among other things, rust particles and sand. The transparent housing facilitates the monitoring of dirt accumulation, and the adjustment ring indicates the time for the next backwash. 1" connection, horizontal or vertical installation.
Description
F74CS-1AA Honeywell mechanical water filter is a robust water filter with backwashing, designed to protect the installation against sand, rust particles, and other mechanical impurities. The device ensures a continuous supply of filtered water even during cleaning of the filter mesh, making it an excellent component of a domestic and commercial water filtration system as well as processes related to water treatment. The transparent housing, 100-micron filter insert, 1" connection, and the option of horizontal or vertical installation make this model a practical choice for many types of installations.
Mechanical protection of the water installation without interrupting operation
Honeywell F74CS-1AA was designed for effective retention of solid contaminants present in water. The fine-mesh filter captures foreign matter such as rust particles, hemp fibers, or grains of sand, helping to protect fittings, valves, appliances, and downstream installation components.
The key advantage of the design is backwashing, which allows the filter mesh to be cleaned without shutting off the supply of filtered water. In practice, this means more convenient operation and better continuity of the entire system.
Applications of the Honeywell F74CS-1AA filter
Honeywell F74CS filters are intended for installations equipped with a pressure regulator, as well as for systems where such a regulator is not required. This model is used in:
- typical domestic installations,
- industrial installations,
- commercial facilities.
Thanks to the rotary connection included in the set, the filter can be installed on both horizontal and vertical pipes, making it easier to adapt the device to the existing installation.
The filter is equipped with a 1" connection and has been adapted for operation with water. The transparent housing allows ongoing assessment of the contamination level of the insert, and the setting ring makes it easier to monitor the date of the next backwash.
Key features and benefits
- Filtered water is supplied even during backwashing.
- The patented backwash system is fast and allows the filter to be cleaned using a small amount of water.
- Large filtration area.
- A special setting ring shows when the next backwash should be carried out.
- Large filtration surface.
- The transparent filter housing made of impact-resistant synthetic material allows easy monitoring of the contamination level of the insert.
- Replaceable filter insert.
- Very easy operation.
- Manufactured in accordance with KIWA recommendations for drinking water.
- DIN/DVGW certificates.
Operation and ease of use
The F74CS-1AA model was developed to make everyday use as simple as possible. The transparent housing makes it easy to quickly check the contamination level of the filter mesh without the need to dismantle the device. In turn, the special setting ring reminds the user of the date of the next backwash, helping maintain the filter's efficiency in regular operation.
The AA filter insert used, with a 100-micron rating, supports effective removal of typical mechanical impurities. This solution works well as a preliminary stage before more advanced technologies, such as a reverse osmosis filter, RO filter, or a complete reverse osmosis system, because it helps reduce the flow of solid particles to downstream installation components.
Set contents
- Honeywell F74CS filter
- Ring spanner for the filter housing
- AA filter insert - filter mesh - 100 microns
- Ball valve with drain cover
- Backwash activation knob
- Rotary connection with gasket and mounting screws
- Hex key for connection installation
Why is this filter a good choice?
Honeywell F74CS-1AA combines effective mechanical filtration with user convenience and easy cleaning. It protects the installation from solid contaminants, and thanks to backwashing it does not require complicated handling. It is a practical solution wherever reliability, insert condition monitoring, and constant water flow matter.
Technical specifications
| Parameter | Value |
|---|---|
| Filter type | backwashing |
| Medium type | water |
| Housing material | plastic |
| Connection type | male thread |
| Transparent housing | yes |
| Backwashing with filtered water | yes |
| Operating pressure | 10 bar |
| Maximum pressure | 16 bar |
| Maximum temperature | 30°C |
| Weight | 3 kg |
| Inserts | AA |
Product Details
F74CS-1
9994 Items
Data sheet
- Filtration rating
- 100 µm
- Maximum working pressure
- 16 bar
- Maximum working temperature
- 30 °C
- Connection size
- 1″
- Installation location
- Whole-house inlet
- Product type
- Self-cleaning filter
- Solution type
- Whole house / POE
- Technology
- Mechanical filtration
- Material
- Plastic
Questions
What is the Honeywell F74CS-1AA filter used for?
It is a mechanical water filter designed to remove solid contaminants such as sand, rust particles, and other mechanical sediments. Its purpose is to protect the water installation and connected devices.
What contaminants does the filter insert retain?
The 100-micron fine-mesh insert retains, among others, rust particles, hemp fibers, and grains of sand, as well as other similar mechanical impurities present in water.
Is water still available during backwashing?
Yes. One of the key features of this model is that filtered water is supplied even during backwashing, which increases user convenience.
Can the filter be installed vertically and horizontally?
Yes. The filter can be installed on a horizontal or vertical pipe. This is facilitated by the rotary connection included in the set.
What is the connection diameter?
The filter has a 1" connection and a male-threaded connection type.
Does the housing allow monitoring of the contamination level?
Yes. The transparent housing made of impact-resistant synthetic material allows a simple and quick assessment of the contamination level of the filter insert.
Is the filter insert replaceable?
Yes. The filter is equipped with a replaceable AA-type filter insert. The set includes an AA filter insert in the form of a 100-micron filter mesh.
In which installations is the F74CS-1AA Honeywell mechanical water filter suitable?
The F74CS-1AA model is used in typical domestic, industrial, and commercial installations. It can operate both in installations equipped with a pressure regulator and where a regulator is not required.
What operating pressure and temperature can the filter handle?
The operating pressure is 10 bar, the maximum pressure is 16 bar, and the maximum operating temperature is 30°C.
