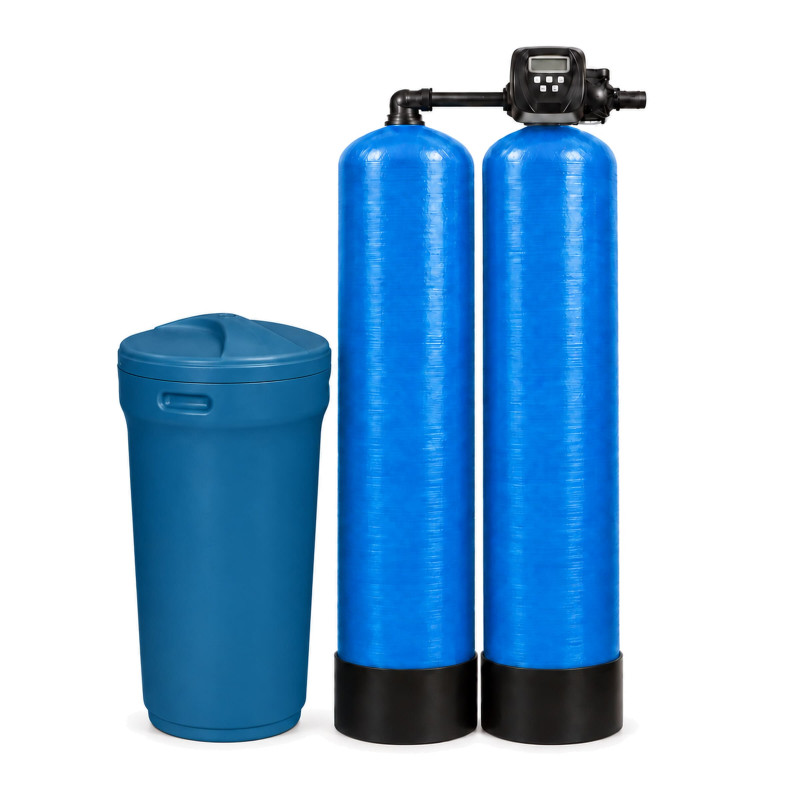

Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x90L
WODARO TWIN SOFT 2×90 L supplies soft water around the clock, without regeneration breaks. 2 × 90 l of ion-exchange resin; flow 4.0 m³/ Read moreShow less
WODARO TWIN SOFT 2×90 L supplies soft water around the clock, without regeneration breaks. 2 × 90 l of ion-exchange resin; flow 4.0 m³/h. Reduces hardness and scale. Regular salt refilling is required.
Benefits
Description
WODARO TWIN SOFT 2x90L is a softener for continuous operation with a control valve CLACK VTT WS1, a rated capacity of 4.0 m³/h and two columns with 90 l of media each. It reduces water hardness by ion exchange, limiting limescale formation. The TWIN design allows softening to continue while one column regenerates.
WODARO TWIN SOFT 2x90L – continuous softening at 4.0 m³/h
WODARO TWIN SOFT 2x90L is designed for installations requiring continuous access to softened water. The two-column system is suitable where a single column would have to interrupt softening for regeneration while water demand continues.
Hardness removal reduces the tendency of water to form limescale deposits. This matters for installations and appliances in contact with water, particularly during heating. Before using the system, assess the required water quality and flow demand.
What does the TWIN system offer?
- Softening during regeneration – one column treats water while the other restores the media's properties.
- Rated capacity of 4.0 m³/h – suitable for selection for an installation with matching demand.
- 2 × 90 l of cation exchange resin – media divided between two 14 × 65 inch vessels.
- Reduced limescale deposits – reducing the ions responsible for water hardness.
- CLACK VTT WS1 control – controls system operation and regeneration with a salt solution.
Softening system operating principle
Each vessel contains 90 l of ion exchange resin. The media retains calcium and magnesium ions as water flows through it, reducing hardness.
The resin has a defined working capacity and therefore requires periodic brine regeneration. In the TWIN system, the second column continues supplying softened water during this time. After regeneration, the media can take part in softening again.
A total of 180 l of resin does not mean that all the media operates simultaneously or that capacity is 8.0 m³/h. The value specified for WODARO TWIN SOFT 2x90L is 4.0 m³/h.
Construction, installation and operation
WODARO TWIN SOFT 2x90L uses two 14 × 65 inch pressure vessels, cation exchange media and a CLACK VTT WS1 control valve. Regeneration requires brine prepared in a separate tank. Brine tank capacity should be confirmed for the specific order.
Selection requires knowledge of water hardness, consumption and flow during peak demand. The system's pressure and temperature requirements must also be met, with a drain for backwash water and servicing access provided.
During use, replenish regeneration salt, check softening effectiveness and carry out inspections according to the instructions. Media service life is up to 10 years, with actual service life depending on operating conditions.
Check the height of the plant room. The vessel alone is 1674 mm high. The control valve and required maintenance access increase the space needed. A single vessel is 369 mm in diameter; the full installation comprises two columns and a separate brine tank.
WODARO TWIN SOFT 2x90L technical data
| Brand | WODARO |
|---|---|
| Model | WODARO TWIN SOFT 2x90L |
| Unit type | TWIN twin-column softener for continuous operation |
| Control valve | CLACK VTT WS1 |
| Media type | Cation exchange resin |
| Media quantity | 2 × 90 l |
| Rated capacity | 4.0 m³/h |
| Connection diameter | 1 inch |
| Operating temperature | 2–30°C |
| Operating pressure | 2–6 bar |
| Number and size of vessels | 2 vessels, each 14 × 65 inches |
| Dimensions of one vessel excluding control valve | Diameter 369 mm, height 1674 mm |
| Media regeneration | With a salt solution |
| Media service life according to the catalogue | Up to 10 years, depending on operating conditions |
FAQ
WODARO TWIN SOFT 2x90L is designed so the second column softens water while the first regenerates. A correctly selected and configured system does not require a break in soft water use during this process.
No. This is the unit's flow capacity. The volume of water that can be softened before regeneration depends, among other factors, on hardness and the configured working capacity of the media.
The operating temperature range is 2–30°C. Install the unit where the temperature of its feed water remains within this range.
A pressure of 1.5 bar is below the specified operating range of 2–6 bar. Before installation, ensure conditions meet the unit's requirements, including during water use and regeneration.
