Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x70L

Rating
WODARO TWIN SOFT 2×70 L supplies soft water around the clock, without regeneration breaks. 2 × 70 l of ion-exchange resin; flow 3.4 m³/ Read moreShow less

WODARO TWIN SOFT 2×70 L supplies soft water around the clock, without regeneration breaks. 2 × 70 l of ion-exchange resin; flow 3.4 m³/h. Reduces hardness and scale. Regular salt refilling is required.

Benefits

Specifications

In stock

Description

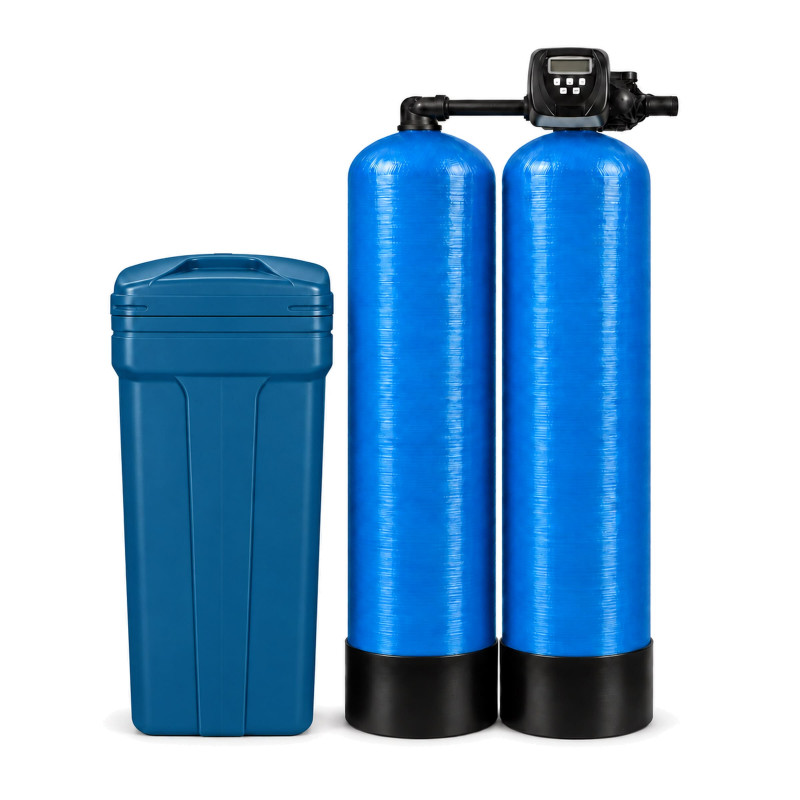

WODARO TWIN SOFT 2x70L is a twin-column water softener with a rated capacity of 3.4 m³/h, equipped with 2 × 70 l of ion exchange resin and the control valve CLACK VTT WS1. It is designed for continuous operation so that regeneration of one column does not interrupt access to softened water. By reducing hardness, the unit limits limescale deposits in the installation.

WODARO TWIN SOFT 2x70L – hardness reduction for round-the-clock water use

WODARO TWIN SOFT 2x70L meets the need for continuous water softening in installations where demand does not stop at a fixed time of day. The TWIN system restores the media's working capacity in one column while the other continues treating water.

This solution is worth considering wherever interruptions to the soft water supply would cause problems for users or a water-fed process. Selection must consider flow rate, feed water hardness and daily consumption, rather than media volume alone.

Main advantages of the model

  • Continuous softening – alternating operation of two columns eliminates the interruption caused by regeneration of a single media bed.
  • Rated capacity of 3.4 m³/h – a parameter for assessing whether the unit suits the installation.
  • 70 l of resin in each vessel – a total of 140 l of media in the TWIN system.
  • Reduced limescale build-up – hardness reduction in water supplied to the installation and appliances.
  • CLACK VTT WS1 control valve – controls system operation and brine regeneration.

How do the two softening columns work?

Each column contains cation exchange resin. As water flows through it, ion exchange reduces the concentration of calcium and magnesium ions responsible for hardness.

Once the media's capacity has been used, one column regenerates with a salt solution while the other continues softening. This means a separate period without soft water demand does not have to be reserved solely for system regeneration.

The capacities of the two columns are not added together. The rated capacity of WODARO TWIN SOFT 2x70L is 3.4 m³/h.

Unit construction and maintenance

WODARO TWIN SOFT 2x70L uses two 13 × 54 inch vessels, each filled with 70 l of ion exchange resin, and a CLACK VTT WS1 control valve. The regeneration solution is prepared in a separate brine tank, whose size should be confirmed before ordering.

Routine maintenance includes checking the salt supply and replenishing it as it is used. Water hardness downstream of the unit should also be checked, and inspections carried out according to the instructions. Regeneration frequency depends on system loading, water quality and settings.

Installation must provide a backwash water drain and easy access to both columns, the control valve and brine tank.

Check the dimensions before installation. The dimensions of 349 × 1398 mm refer to a single vessel without the control valve. They do not specify the complete width or height of the assembled system with connections and brine tank.

WODARO TWIN SOFT 2x70L technical data

Brand WODARO
Model WODARO TWIN SOFT 2x70L
Unit type TWIN twin-column softener for continuous operation
Control valve CLACK VTT WS1
Media type Cation exchange resin
Media quantity 2 × 70 l
Rated capacity 3.4 m³/h
Connection diameter 1 inch
Operating temperature 2–30°C
Operating pressure 2–6 bar
Number and size of vessels 2 vessels, each 13 × 54 inches
Dimensions of one vessel excluding control valve Diameter 349 mm, height 1398 mm
Media regeneration With a salt solution
Media service life according to the catalogue Up to 10 years; actual service life depends on operating conditions

FAQ

Why does the system have two columns?

Two columns allow alternating operation. While the media in one vessel regenerates, the other softens water, so the process can continue without a regeneration interruption.

Does WODARO TWIN SOFT 2x70L remove existing limescale from the installation?

The unit reduces the hardness of water flowing through it and limits new deposits. It is not designed to clean or descale an installation that already has limescale build-up.

How much salt does this model use?

Consumption depends on the configured regeneration dose and the number of regenerations, which is affected by hardness and water consumption. Without these figures, monthly salt requirements cannot be reliably determined.

Which brine tank is specified for the unit?

The datasheet shows several tank sizes but does not assign a single capacity to this model. Tank size should be confirmed for the configuration ordered.
