Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x60L
WODARO TWIN SOFT 2×60 L supplies soft water around the clock, without regeneration breaks. 2 × 60 l of ion-exchange resin; flow 2.9 m³/ Read moreShow less
WODARO TWIN SOFT 2×60 L supplies soft water around the clock, without regeneration breaks. 2 × 60 l of ion-exchange resin; flow 2.9 m³/h. Reduces hardness and scale. Regular salt refilling is required.
Benefits
Description
WODARO TWIN SOFT 2x60L is a water softening system for continuous operation with a rated capacity of 2.9 m³/h. The unit uses two columns with 60 l of ion exchange resin each and the control valve CLACK VTT WS1. It reduces water hardness and limits limescale formation, while the TWIN system maintains the softened water supply during media regeneration.
WODARO TWIN SOFT 2x60L – continuous water softening
WODARO TWIN SOFT 2x60L is designed for applications where periodic softening interruptions would hinder use of the installation or connected equipment. Two columns allow media regeneration without interrupting the soft water supply.
This model is worth considering when selecting a system for round-the-clock water use, provided its capacity of 2.9 m³/h matches installation needs. Final selection also requires considering water hardness and consumption, as these parameters affect regeneration frequency.
Main benefits
- Continuous access to softened water – the second column operates while the first regenerates.
- Reducing the cause of limescale deposits – hardness removal using cation exchange resin.
- 2 × 60 l of media – two working columns, each with its own resin supply.
- CLACK VTT WS1 control valve – controls alternating softening and regeneration.
- Regenerable media – ion exchange capacity is restored with a salt solution, allowing continued resin use.
How is water hardness removed?
Water flows through ion exchange media that retains calcium and magnesium ions. Reducing their concentration makes water less prone to form limescale in the installation and appliances, particularly where it is heated.
When the resin requires regeneration, the system switches operation to the other column. The media in the regenerating vessel regains its properties through contact with brine and the subsequent rinsing stages. The two columns maintain process continuity, while the complete system's rated capacity remains 2.9 m³/h.
Construction and operating requirements

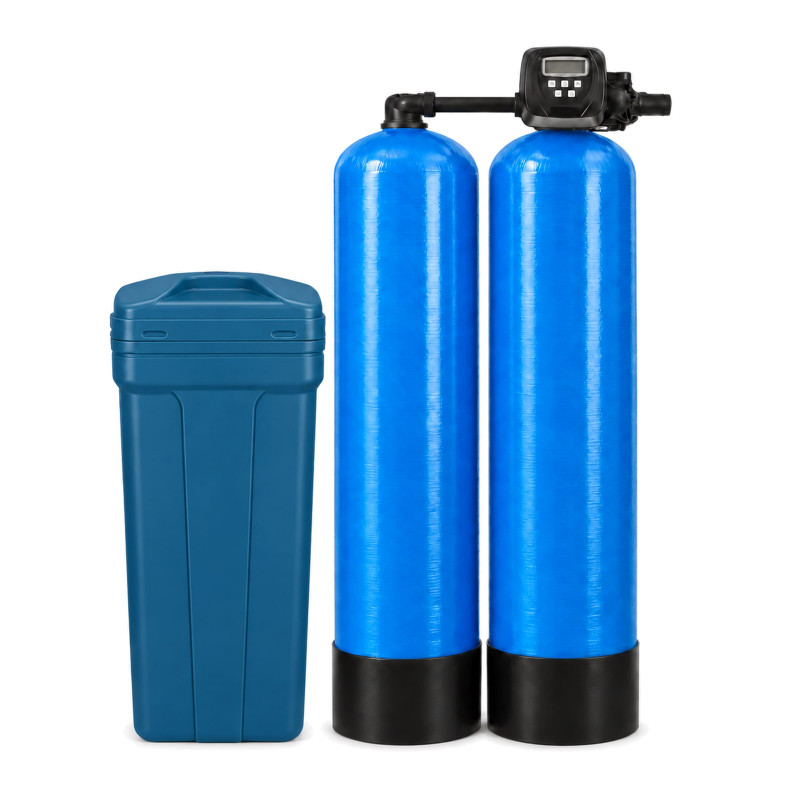

WODARO TWIN SOFT 2x60L has two 12 × 52 inch vessels, each containing 60 l of cation exchange resin, and a CLACK VTT WS1 control valve. A separate brine tank is required for regeneration; its capacity should be confirmed in the order configuration.
During installation preparation, ensure operating conditions comply with the unit's temperature and pressure ranges, provide a backwash water drain and allow access for salt replenishment and servicing. Regular hardness checks downstream of the system allow softening effectiveness to be assessed.
The catalogue states a media service life of up to 10 years. This is not a fixed replacement interval: actual service life depends on water quality, loading and correct regeneration.
The vessel dimensions are not the complete system dimensions. The diameter of 315 mm and height of 1338 mm refer to one vessel without the control valve. Before purchase, allow for two columns, a brine tank, connections and servicing space.
WODARO TWIN SOFT 2x60L technical data
| Brand | WODARO |
|---|---|
| Model | WODARO TWIN SOFT 2x60L |
| Unit type | TWIN twin-column softener for continuous operation |
| Control valve | CLACK VTT WS1 |
| Media type | Cation exchange resin |
| Media quantity | 2 × 60 l |
| Rated capacity | 2.9 m³/h |
| Connection diameter | 1 inch |
| Operating temperature | 2–30°C |
| Operating pressure | 2–6 bar |
| Number and size of vessels | 2 vessels, each 12 × 52 inches |
| Dimensions of one vessel excluding control valve | Diameter 315 mm, height 1338 mm |
| Media regeneration | With a salt solution |
| Media service life according to the catalogue | Up to 10 years, depending on operating conditions |
FAQ
WODARO TWIN SOFT 2x60L contains 120 l of resin in total, divided between two columns of 60 l each. The TWIN system uses them alternately to maintain softening while one column regenerates.
Compare it with actual demand, including peak-hour consumption. Full selection also requires water hardness and daily consumption figures.
Suitability should be assessed after water testing. If other problems such as iron, manganese or suspended impurities are present alongside hardness, additional treatment stages may be needed.
No. Brine regeneration restores the resin's working properties. Replacement is considered according to wear and media condition, rather than after every operating cycle.
