Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x40L
WODARO TWIN SOFT 2×40 L supplies soft water around the clock, without regeneration breaks. 2 × 40 l of ion-exchange resin; flow 2.0 m³/ Read moreShow less
WODARO TWIN SOFT 2×40 L supplies soft water around the clock, without regeneration breaks. 2 × 40 l of ion-exchange resin; flow 2.0 m³/h. Reduces hardness and scale. Regular salt refilling is required.
Benefits
Description

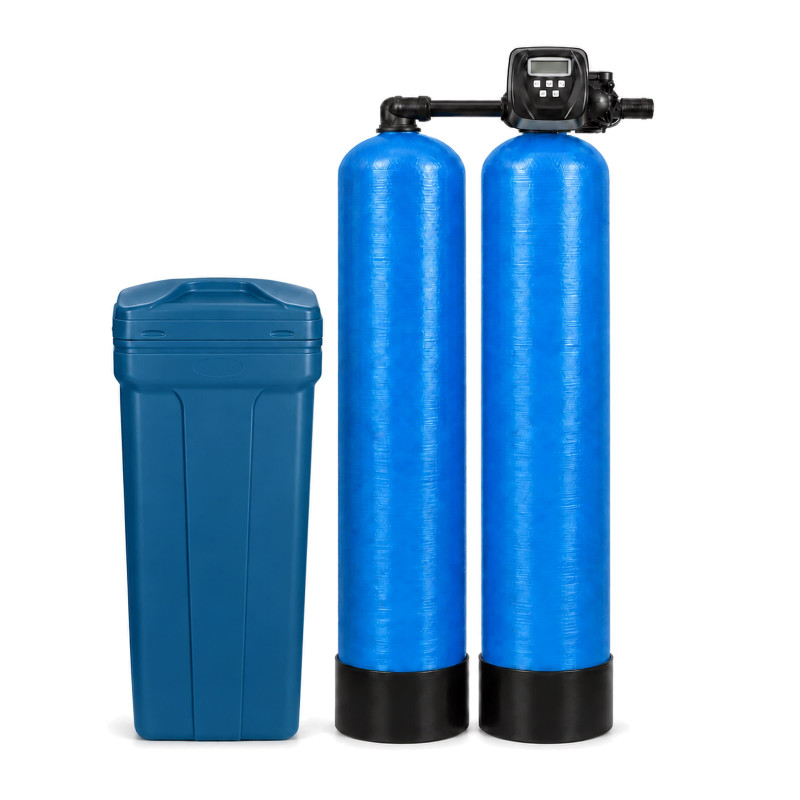

WODARO TWIN SOFT 2x40L is a twin-column softener with the control valve CLACK VTT WS1, designed to supply soft water without interruptions for media regeneration. The two vessels contain 40 l of ion exchange resin each, and the unit's rated capacity is 2.0 m³/h. This solution is intended for installations where hardness reduction must remain available while the media's properties are restored.
WODARO TWIN SOFT 2x40L – soft water around the clock
Hard water contributes to limescale deposits on surfaces in contact with it, particularly during heating. WODARO TWIN SOFT 2x40L reduces this problem by softening water using ion exchange media.
The two-column system maintains process continuity. When one column regenerates, the other takes over softening. The unit is designed for round-the-clock operation and is worth considering for installations drawing water at times when a single softener would normally regenerate.
What distinguishes this model?
- Capacity of 2.0 m³/h – a specific parameter to compare with the installation's required flow rate.
- 2 × 40 l of cation exchange resin – media contained in two separate vessels.
- Alternating softening – one column regenerates while the other continues operating.
- Reduced limescale formation – reducing calcium and magnesium ions in the treated water.
- CLACK VTT WS1 control – a control valve designed for the TWIN system.
Operating principle and brine regeneration
Each column contains 40 l of ion exchange resin. As water flows through it, the media retains ions responsible for hardness. Once its working capacity has been used, regeneration with a salt solution restores its ability to continue softening.
Two vessels do not mean twice the flow rate stated in the catalogue. The complete model has a capacity of 2.0 m³/h, and the TWIN system's purpose is to ensure uninterrupted access to softened water during regeneration.
Construction, selection and maintenance
WODARO TWIN SOFT 2x40L uses two 10 × 54 inch vessels, cation exchange resin and a CLACK VTT WS1 control valve. Regeneration requires brine prepared in a separate tank. The tank capacity should be established for the configuration ordered.
Before selection, determine water hardness, daily consumption and the highest expected flow rate. The number of users alone is insufficient to assess whether the unit is suitable for the installation.
During use, replenish regeneration salt, check softening effectiveness and carry out inspections according to the instructions. Salt and water consumption for regeneration depend on settings and operating conditions, so there is no single fixed value for every property.
Allow for the complete installation space. Each vessel is 268 mm in diameter and 1381 mm high, excluding the control valve. Space is also needed for the second pressure vessel, control system, brine tank, connections and servicing.
WODARO TWIN SOFT 2x40L technical data
| Brand | WODARO |
|---|---|
| Model | WODARO TWIN SOFT 2x40L |
| Unit type | TWIN twin-column softener for continuous operation |
| Control valve | CLACK VTT WS1 |
| Media type | Cation exchange resin |
| Media quantity | 2 × 40 l |
| Rated capacity | 2.0 m³/h |
| Connection diameter | 1 inch |
| Operating temperature | 2–30°C |
| Operating pressure | 2–6 bar |
| Number and size of vessels | 2 vessels, each 10 × 54 inches |
| Dimensions of one vessel excluding control valve | Diameter 268 mm, height 1381 mm |
| Media regeneration | With a salt solution |
| Media service life according to the catalogue | Up to 10 years; actual service life depends on operating conditions |
FAQ
Each of the two columns contains 40 l of ion exchange resin, giving 80 l in total. This value refers to the media, not the brine tank or the volume of water treated in one cycle.
Yes. The unit is designed for continuous operation. The TWIN system allows softened water to be used even while one column regenerates.
The frequency depends on water consumption, hardness, regeneration settings and brine tank size. The salt level should be checked regularly and replenished according to the instructions.
No. This is the height of one vessel without the control valve. When planning installation, allow additional space for the controls, connections and maintenance access.
