Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x30L
WODARO TWIN SOFT 2×30 L supplies soft water around the clock, without regeneration breaks. 2 × 30 l of ion-exchange resin; flow 1.8 m³/ Read moreShow less
WODARO TWIN SOFT 2×30 L supplies soft water around the clock, without regeneration breaks. 2 × 30 l of ion-exchange resin; flow 1.8 m³/h. Reduces hardness and scale. Regular salt refilling is required.
Benefits
Description
WODARO TWIN SOFT 2x30L is a twin-column water softener for continuous operation, equipped with the control valve CLACK VTT WS1 and 2 × 30 l of ion exchange resin. Its rated capacity is 1.8 m³/h. The TWIN system supplies softened water even while one column is regenerating, and hardness reduction limits limescale formation in the installation and connected appliances.
WODARO TWIN SOFT 2x30L – softening without regeneration interruptions
WODARO TWIN SOFT 2x30L is designed for installations where soft water must be available around the clock. Two columns allow alternating operation: when the media in one requires regeneration, the other continues softening. Periodic restoration of the resin's properties therefore does not interrupt the treated water supply.
This model is worth considering where hard water is a problem and a convenient break for regenerating a single column cannot be scheduled. Selection should consider the actual flow rate, water hardness and daily consumption.
Key benefits
- TWIN system operation – continuous softening while one column regenerates.
- Reduced limescale deposits – reducing the ions responsible for water hardness.
- Two columns with 30 l of media each – separate resin supplies designed for alternating operation.
- CLACK VTT WS1 control valve – controls system operation and regeneration.
- 10 × 44 inch vessels – each with a listed height of 1121 mm excluding the control valve, helping assess the available installation space.
How does WODARO TWIN SOFT 2x30L work?
Water flows through cation exchange resin, which retains the calcium and magnesium ions responsible for hardness during ion exchange. Softening reduces the cause of new limescale deposits in the installation.
Once its ion exchange capacity has been used, the media is regenerated with a salt solution. The two-column system allows this process to take place while maintaining access to softened water. The designation 2 × 30 l describes the resin volume in two vessels, rather than the volume of water that can be treated between regenerations.
Construction and everyday operation

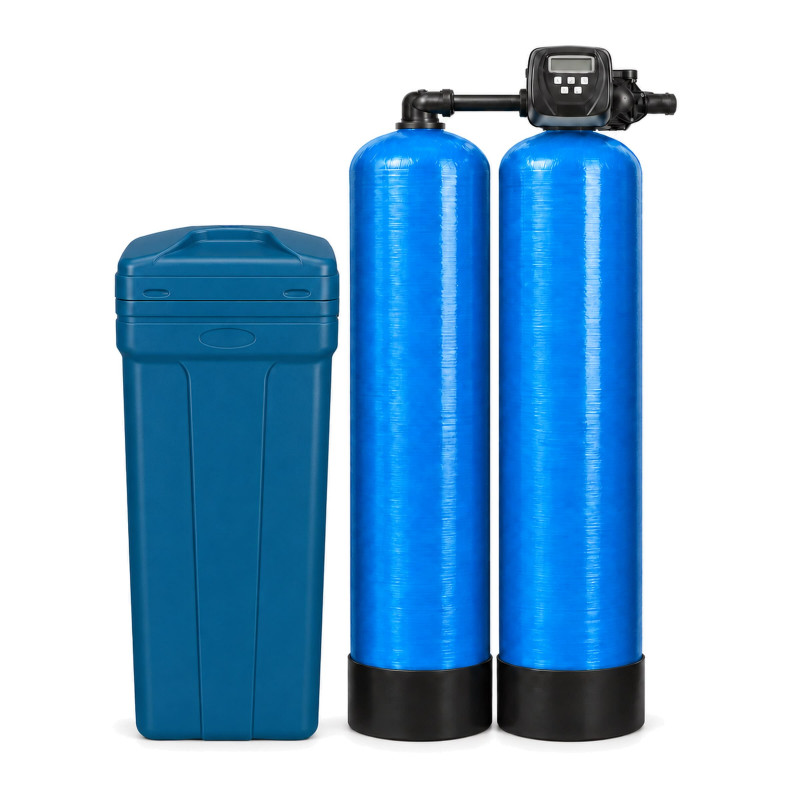

The unit consists primarily of two 10 × 44 inch pressure vessels, ion exchange media and a CLACK VTT WS1 control valve. A separate brine tank is used for regeneration. Its capacity should be confirmed for the configuration ordered.
Maintenance includes replenishing regeneration salt, checking water hardness downstream of the unit and carrying out inspections according to the instructions. Salt consumption and regeneration frequency depend on operating conditions and system settings. Installation must provide a drain for backwash water and access to maintain the unit.
Check the installation space before purchase. The dimensions of 268 × 1121 mm refer to one vessel without the control valve. Allow space for two columns, the control valve, connections, brine tank and servicing access.
WODARO TWIN SOFT 2x30L technical data
| Brand | WODARO |
|---|---|
| Model | WODARO TWIN SOFT 2x30L |
| Unit type | TWIN twin-column softener for continuous operation |
| Control valve | CLACK VTT WS1 |
| Media type | Cation exchange resin |
| Media quantity | 2 × 30 l |
| Rated capacity | 1.8 m³/h |
| Connection diameter | 1 inch |
| Operating temperature | 2–30°C |
| Operating pressure | 2–6 bar |
| Number and size of vessels | 2 vessels, each 10 × 44 inches |
| Dimensions of one vessel excluding control valve | Diameter 268 mm, height 1121 mm |
| Media regeneration | With a salt solution |
| Media service life according to the catalogue | Up to 10 years; actual service life depends on operating conditions |
FAQ
Yes. WODARO TWIN SOFT 2x30L is designed for continuous operation: while one column regenerates, the other softens water. Correct unit selection and settings are required.
No. The rated capacity of WODARO TWIN SOFT 2x30L is 1.8 m³/h. The two columns maintain continuous softening, and their capacities should not be added together.
This depends, among other factors, on feed water hardness and the configured ion exchange capacity. A media volume of 2 × 30 l does not directly specify the number of litres of water treated.
Its purpose is hardness reduction. If the water also requires iron removal, removal of other contaminants or disinfection, appropriate treatment stages should be selected according to water testing.
