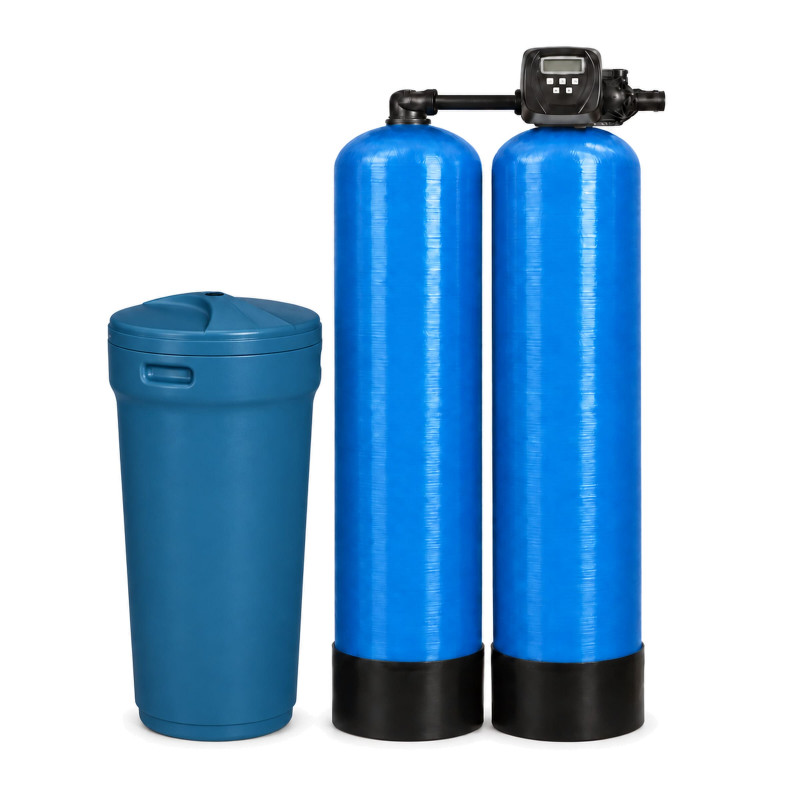

Twin-tank water softener for continuous operation — WODARO TWIN SOFT 2x120L
WODARO TWIN SOFT 2×120 L supplies soft water around the clock, without regeneration breaks. 2 × 120 l of ion-exchange resin; flow 5.2 m Read moreShow less
WODARO TWIN SOFT 2×120 L supplies soft water around the clock, without regeneration breaks. 2 × 120 l of ion-exchange resin; flow 5.2 m³/h. Reduces hardness and scale. Regular salt refilling is required.
Benefits
Description
WODARO TWIN SOFT 2x120L is a twin-column water softening system for continuous operation with a rated capacity of 5.2 m³/h. Equipped with a control valve CLACK VTT WS1 and 2 × 120 l of ion exchange resin, it reduces water hardness and limits limescale formation. The TWIN system allows one column to regenerate while softening continues in the other.
WODARO TWIN SOFT 2x120L – softening at higher flow rates
WODARO TWIN SOFT 2x120L is designed for installations needing a continuous supply of softened water and a capacity matching this model's parameters. Two columns allow regeneration without scheduling a break in soft water access.
The unit reduces the hard water problem through ion exchange. Reducing calcium and magnesium ions makes limescale deposits less likely in the installation and water-using appliances.
Selection should consider the highest expected flow rate, daily consumption and feed water hardness. The 5.2 m³/h capacity is a parameter of this specific system, rather than a declaration of suitability for every installation with a 1 inch connection.
Key benefits
- Designed for continuous operation – softening without interruptions caused by regeneration of one column.
- Rated capacity of 5.2 m³/h – to be considered when designing an installation's soft water supply.
- Two columns with 120 l of resin each – a total of 240 l of media in an alternating system.
- Reduced limescale formation – hardness reduction at the source of the problem.
- CLACK VTT WS1 control valve – controls system operation and media regeneration.
How does the 2 × 120 l system work?
Each vessel contains 120 l of cation exchange resin. During operation, water flows through the media, where ion exchange reduces hardness.
Once the resin's working capacity has been used, the column requires regeneration with a salt solution. The second column continues softening during this time. This arrangement maintains supply continuity even though individual media beds require periodic regeneration.
The designation 2 × 120 l specifies resin volume, rather than capacity or a reserve of treated water. The stated capacity of 5.2 m³/h should not be doubled because two vessels are present.
Construction and installation preparation
WODARO TWIN SOFT 2x120L uses two 16 × 65 inch pressure vessels, ion exchange media and a CLACK VTT WS1 control valve. Regeneration uses brine from a separate tank. Its capacity must be confirmed for the configuration ordered.
When planning installation, provide a backwash water drain, access for salt replenishment and space for inspections and servicing. Supply conditions must meet the temperature range of 2–30°C and pressure range of 2–6 bar.
Operation and softening checks
Use requires regular salt level checks, salt replenishment and checking water hardness downstream of the system. Regeneration settings should match water parameters and installation loading.
The listed media service life is up to 10 years. Actual durability depends on water quality, workload, regeneration and operating conditions. Salt and water consumption for regeneration should not be assumed without knowing the unit's configuration and settings.
Allow space for the complete system. Each vessel is 413 mm in diameter and 1705 mm high, excluding the control valve. The full installation requires additional space for controls, connections, the brine tank and servicing access.
WODARO TWIN SOFT 2x120L technical data
| Brand | WODARO |
|---|---|
| Model | WODARO TWIN SOFT 2x120L |
| Unit type | TWIN twin-column softener for continuous operation |
| Control valve | CLACK VTT WS1 |
| Media type | Cation exchange resin |
| Media quantity | 2 × 120 l |
| Rated capacity | 5.2 m³/h |
| Connection diameter | 1 inch |
| Operating temperature | 2–30°C |
| Operating pressure | 2–6 bar |
| Number and size of vessels | 2 vessels, each 16 × 65 inches |
| Dimensions of one vessel excluding control valve | Diameter 413 mm, height 1705 mm |
| Media regeneration | With a salt solution |
| Media service life according to the catalogue | Up to 10 years, depending on operating conditions |
FAQ
Yes. The model is designed for continuous operation, maintaining softening while one column regenerates. This requires correct selection, configuration and regular maintenance.
No. WODARO TWIN SOFT 2x120L has a capacity of 5.2 m³/h. Two columns allow alternating operation and regeneration without interrupting softening.
Water hardness and other test results, daily water consumption, peak-hour flow and downstream water quality requirements are needed. Also check supply pressure and installation space.
WODARO TWIN SOFT 2x120L reduces hardness. It should not be treated as a replacement for iron removal or disinfection equipment. Additional treatment needs are determined from water analysis.
