Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x90
WODARO TWIN MULTI 2×90 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 90 l of multifunction media; flo Read moreShow less
WODARO TWIN MULTI 2×90 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 90 l of multifunction media; flow 4 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X90L — twin-column multifunction treatment system
WODARO TWIN MULTI 2X100L provides multifunction water treatment using 2 × 90 l of AquaMulti media. With a rated capacity of 4 m³/h it combines softening with removal of iron, manganese, ammonia and organic compounds. It helps limit limescale and staining caused by these constituents in water.
For installations requiring softening and iron removal
WODARO TWIN MULTI 2X90L is worth considering where water hardness is accompanied by iron or manganese problems and flow demand matches the system's capabilities. AquaMulti treats several constituents in one system, but selection should be based on water analysis.
- Reduced boiler scale: softening helps protect pipework and water-heating appliances from deposits.
- Less rust-coloured staining: iron removal reduces streaks on fittings and stains on fabrics.
- 200 l of media in two columns: each vessel contains 90 l of AquaMulti.
Construction and operating principle

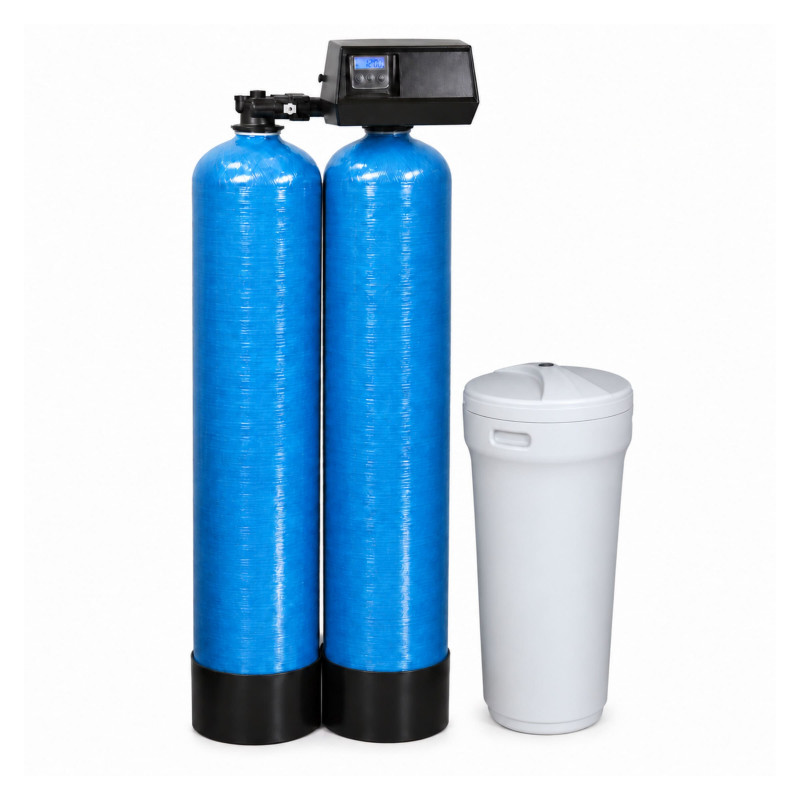

The system comprises two pressure vessels 14 × 65 inches, AquaMulti media, a Clack control valve and a brine tank. Water flowing through the media is softened and treated for the additional constituents specified for AquaMulti.
Periodic regeneration with a sodium chloride solution restores the resin's working capacity. Operation requires salt replenishment and system checks. The stated media service life is up to 10 years, subject to regeneration.
Before purchase, compare system capacity with the required flow rate and confirm selection according to water testing. Planning installation requires the dimensions of the complete configuration, including the brine tank and control valve.
Technical data
| Product name | WODARO TWIN MULTI 2X90L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 90 l |
| Rated capacity | 4 m³/h |
| Control valve | Clack |
| Connection diameter | 1″ |
| Size of each vessel | 14 × 65 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Does the designation 2X90L refer to the brine tanks?
No. It refers to the AquaMulti media volume: 90 l in each column. The brine tank is a separate unit component.
Does WODARO TWIN MULTI 2X90L only reduce limescale?
Its main purpose is softening, but AquaMulti also removes iron, manganese, ammonia and organic compounds.
How is regeneration frequency determined?
It should be matched to water composition, consumption and control configuration. The documentation does not specify a single fixed regeneration interval for this model.
