Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x70
WODARO TWIN MULTI 2×70 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 70 l of multifunction media; flo Read moreShow less
WODARO TWIN MULTI 2×70 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 70 l of multifunction media; flow 3.4 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X70L — multifunction filter with a Clack control valve
WODARO TWIN MULTI 2X70L is a multifunction system designed to reduce hardness and remove iron and other water constituents targeted by AquaMulti. The two columns contain 2 × 70 l of media, and the rated capacity is 3.4 m³/h. A Clack control valve controls unit operation.
Less limescale and staining in the installation
WODARO TWIN MULTI 2X70L is a solution for installations requiring simultaneous softening and iron removal. AquaMulti also removes manganese, ammonia and organic compounds. Unit selection should consider both flow rate and the actual composition of the water treated.
- Softening: helps limit limescale deposits formed particularly during water heating.
- Iron and manganese removal: reduces contaminants responsible for deposits and staining.
- Two columns with 70 l each: provide a total of 140 l of AquaMulti media in one system.
How is the unit constructed?

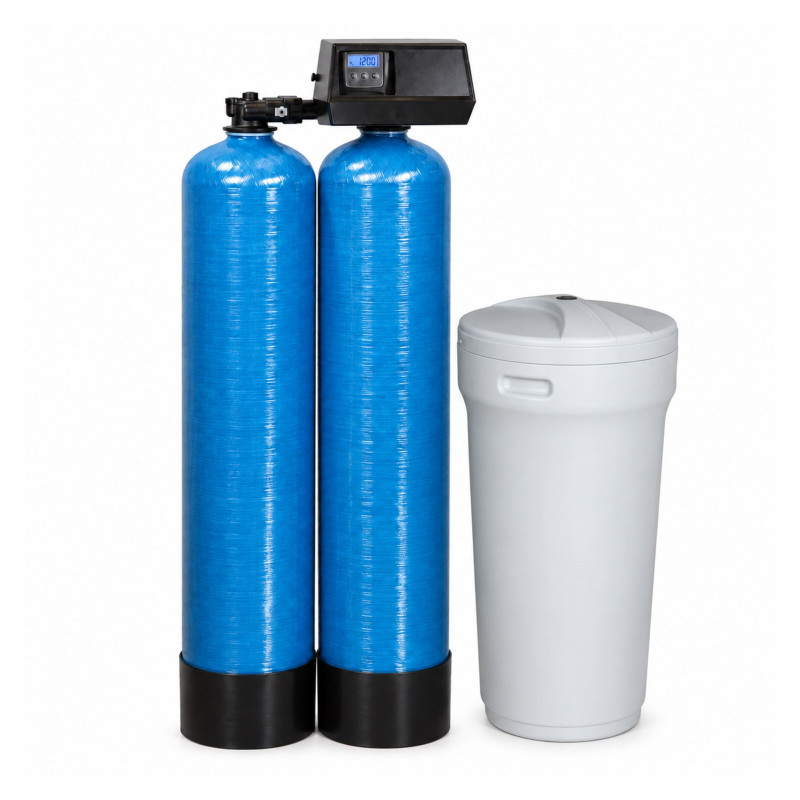

The system consists of two pressure vessels 13 × 54 inches, AquaMulti media, a Clack control valve and a brine tank. As water flows through the media, it is softened and additional constituents targeted by AquaMulti are removed.
The resin is regenerated with a sodium chloride solution. Regular salt replenishment and treatment effectiveness checks are basic maintenance tasks. The stated media service life is up to 10 years, subject to periodic regeneration.
Before purchase, confirm selection according to water testing, as well as the exact control valve configuration, brine tank capacity and installation dimensions of the complete system.
Technical data
| Product name | WODARO TWIN MULTI 2X70L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 75 l |
| Rated capacity | 3.4 m³/h |
| Control valve | Clack |
| Connection diameter | 1″ |
| Size of each vessel | 13 × 54 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
Do two columns mean a capacity of 2 × 3.4 m³/h?
No. The rated capacity of WODARO TWIN MULTI 2X70L is 3.4 m³/h. The designation 2 × 70 l specifies the media volume in two columns.
Is this filter suitable for hard water containing iron?
AquaMulti media is designed for this application. However, water test results must be checked before selection, because the presence of hardness and iron alone does not determine the treatment configuration required.
Does the media work without salt?
No. AquaMulti requires periodic regeneration with a sodium chloride solution, so salt must be replenished in the designated tank.
