Twin-tank multifunction water treatment system — WODARO TWIN MULTI 2x650
WODARO TWIN MULTI 2×650 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 650 l of multifunction media; f Read moreShow less
WODARO TWIN MULTI 2×650 L softens water and removes iron, manganese, ammonia and organic compounds. 2 × 650 l of multifunction media; flow 26.3 m³/h. Brine regeneration. Water analysis is required for selection.
Benefits
Description
WODARO TWIN MULTI 2X650L — multifunction system with a Clack control valve
WODARO TWIN MULTI 2X650L is a twin-column water softening and multifunction treatment system. It contains 2 × 650 l of AquaMulti, and the rated capacity is 26,3 m³/h. In addition to hardness reduction, it removes iron, manganese, ammonia and organic compounds.
Multifunction treatment at higher flow rates
WODARO TWIN MULTI 2X650L is intended for installations requiring water treatment at a flow rate matching its parameters. It combines a softener and multifunction filter, helping reduce limescale deposits and staining associated with iron and manganese.
- Hardness reduction: helps protect the installation against limescale build-up.
- AquaMulti media: allows simultaneous removal of several water constituents.
- 1300 l of media in two columns: each contains 700 l of media.
- Flow rate 26,3 m³/h: a parameter referring to the complete unit.
Unit construction and maintenance

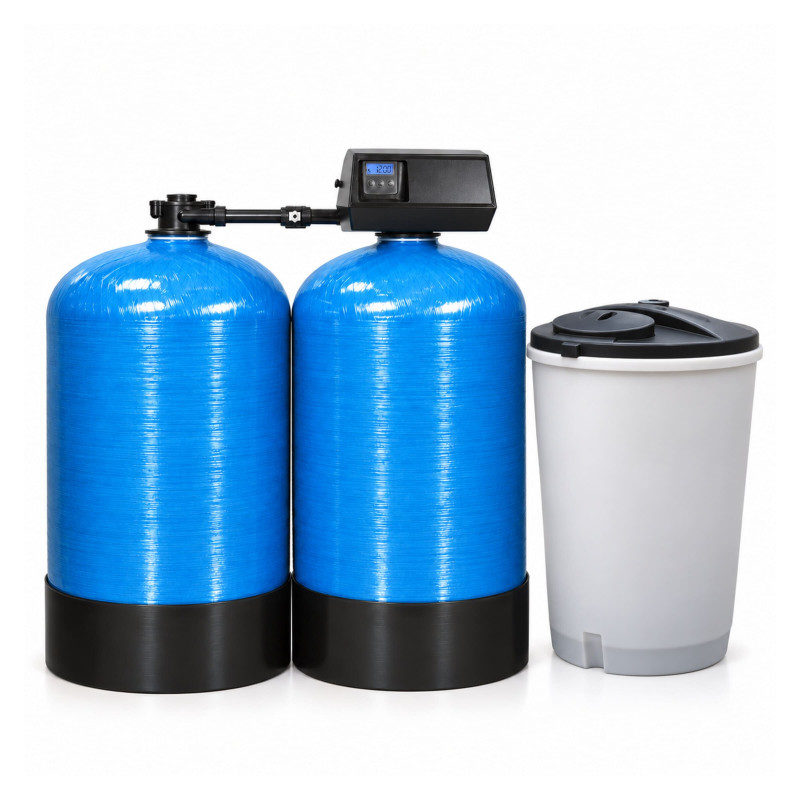

The system uses two pressure vessels 36 × 72 inches, filled with AquaMulti. A Clack control valve controls unit operation, and a brine tank completes the construction. Water is treated as it flows through the media.
The resin is periodically regenerated with a sodium chloride solution. Use requires salt replenishment and checks of system operation and treatment results. The stated media service life is up to 10 years, subject to regeneration.
Before purchase, determine water composition, required flow rate and installation conditions. The exact Clack control valve variant and brine tank capacity require confirmation for the configuration ordered.
Technical data
| Product name | WODARO TWIN MULTI 2X650L |
|---|---|
| Unit type | Twin-column multifunction treatment system |
| Media | AquaMulti |
| Media quantity | 2 × 650 l |
| Rated capacity | 13.0 m³/h |
| Control valve | Clack |
| Connection diameter | 2″ |
| Size of each vessel | 36 × 72 inches |
| Operating temperature | 1–30°C |
| Operating pressure | 2–6 bar |
| Regeneration | With a sodium chloride solution |
FAQ
How much media does WODARO TWIN MULTI 2X700L contain?
The unit contains 2 × 650 l of AquaMulti, giving a total of 1400 l of media divided between two columns.
Is the capacity 26.3 or 52.6 m³/h?
The rated capacity of WODARO TWIN MULTI 2X650L is 26.3 m³/h. It should not be multiplied by the number of columns.
Can the system be selected without water testing?
Reliable selection requires knowledge of water parameters. Capacity and media volume alone do not determine whether the unit is suitable for the contaminants present.
